安路EF2系列芯片单口ram ip核使用方法

测试平台：EF2L45LG144B

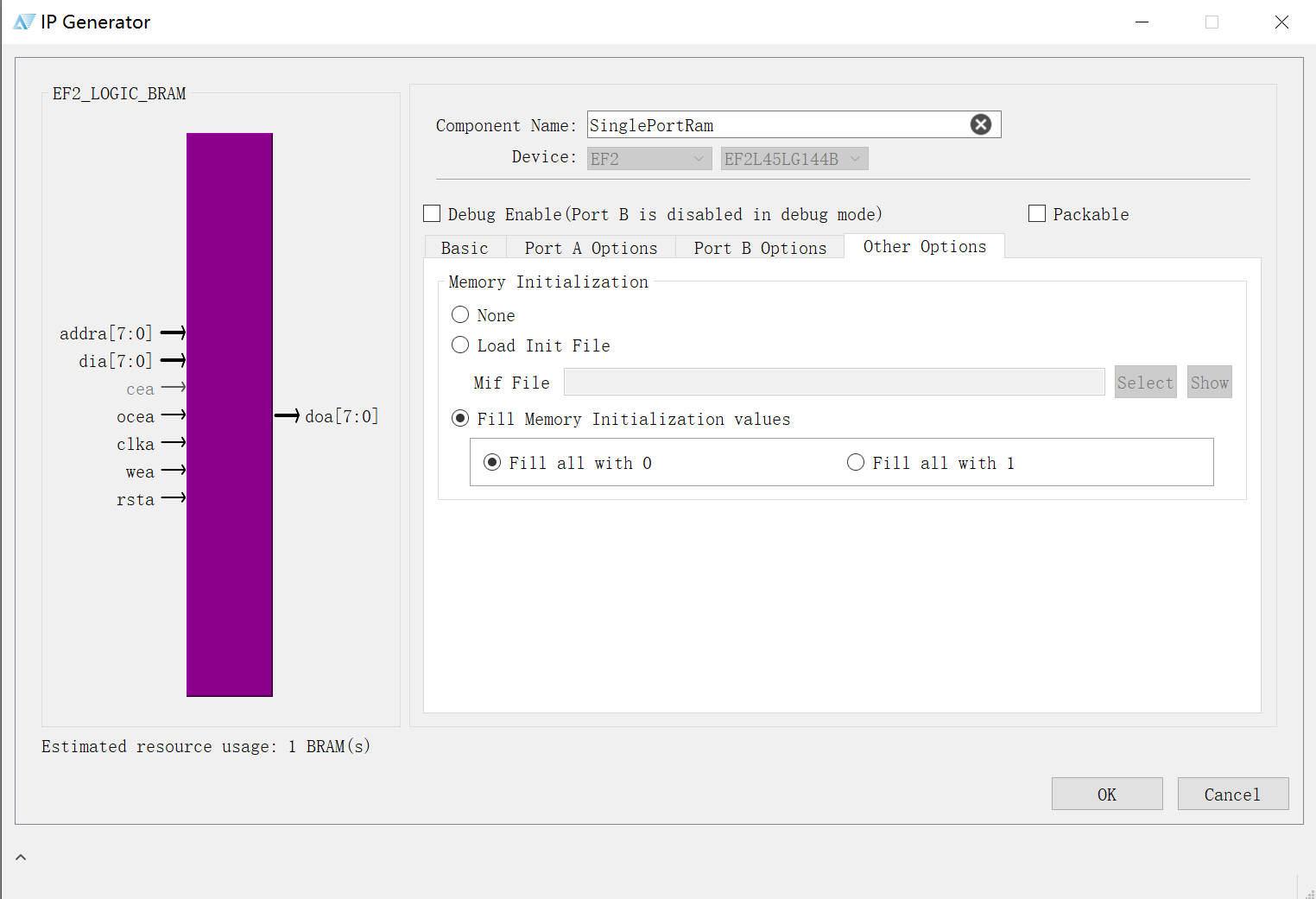

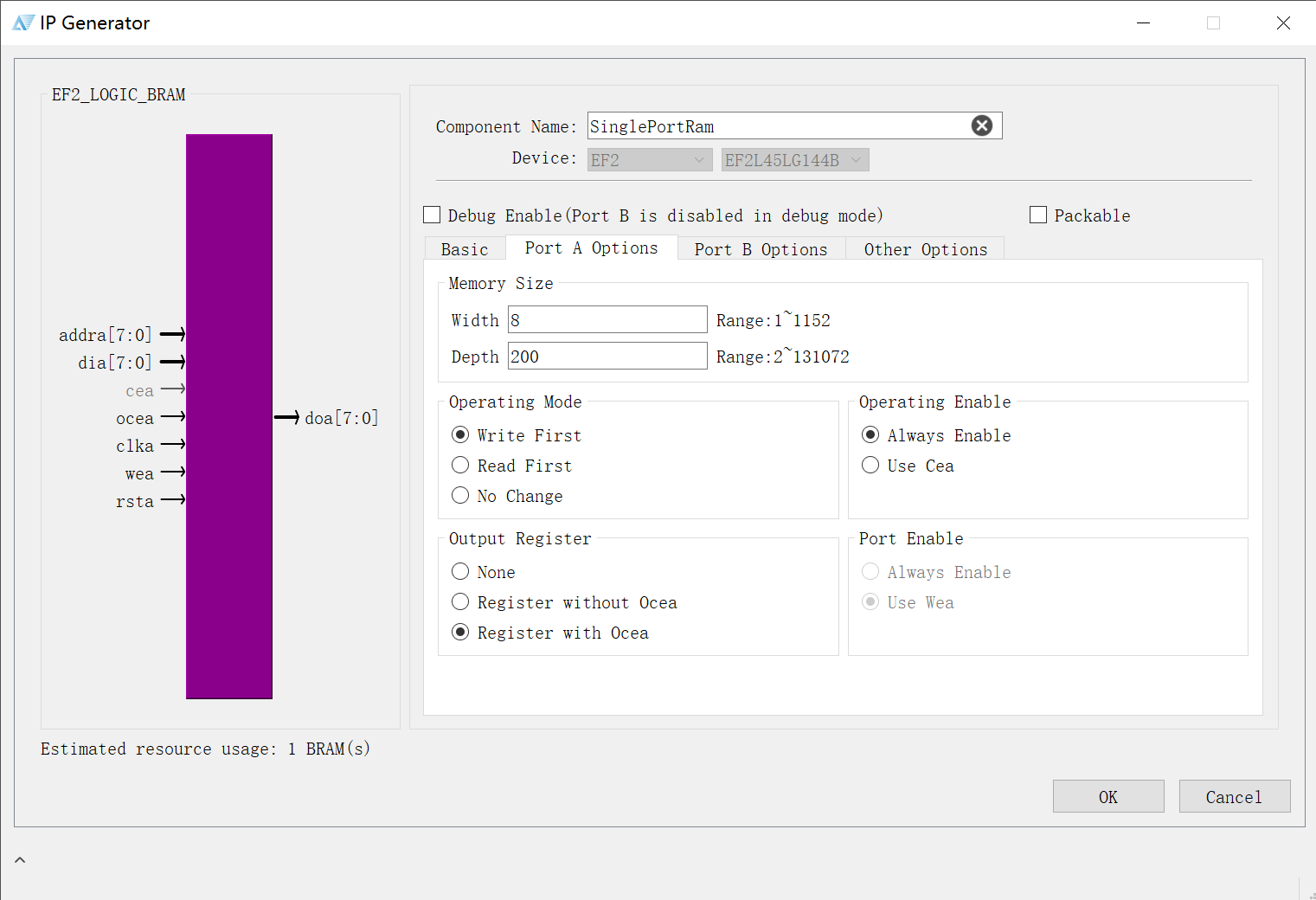

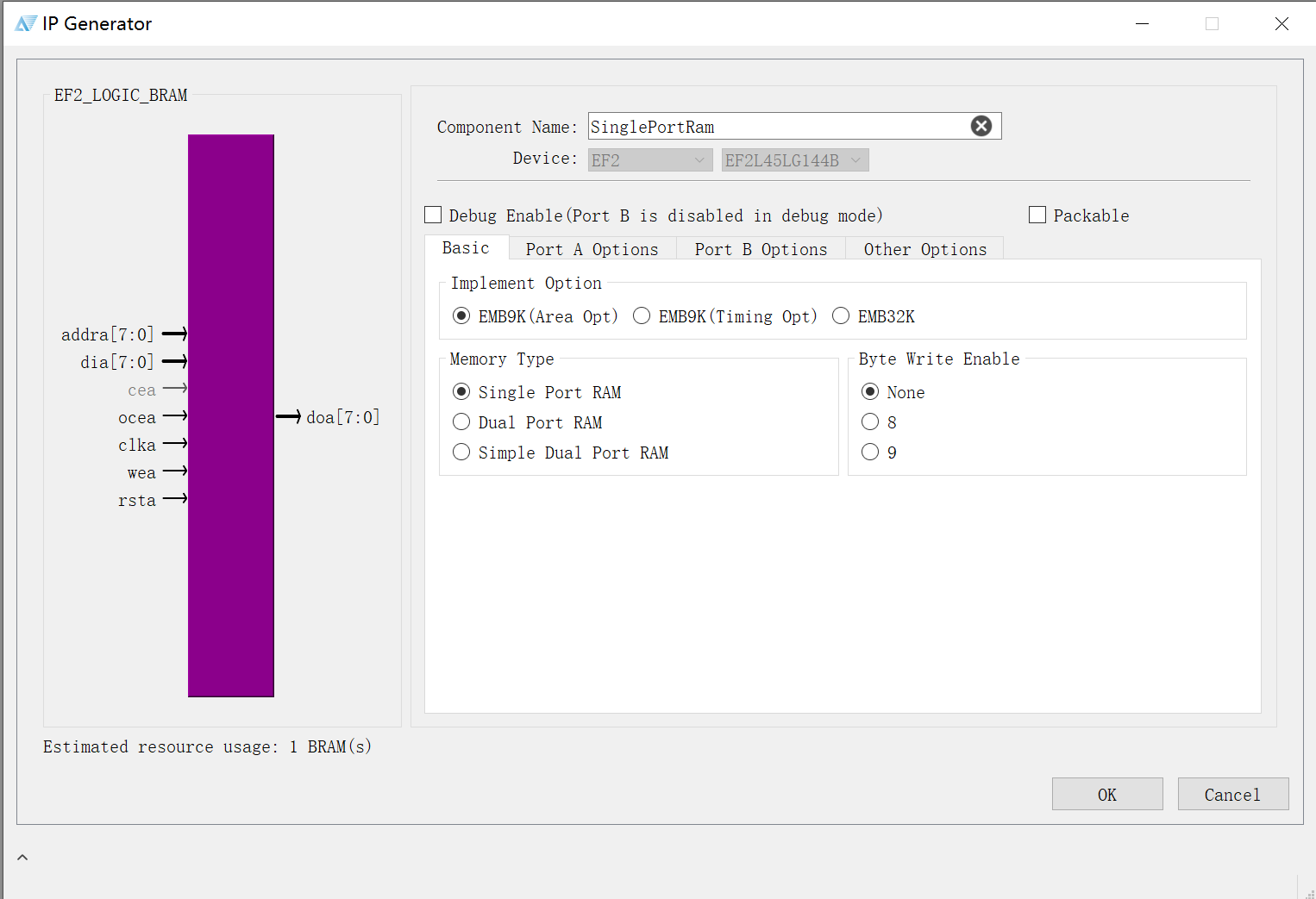

IP配置：



测试代码：

module Top(input  wire I_clk,     // 系统时钟output reg  O_led2 = 1'b0
);// ------------------------------------------------------------------// RAM 接口信号（根据BRAM配置调整）// ------------------------------------------------------------------wire [7:0]  ram_dout; reg  [7:0]  ram_din;reg  [7:0]  ram_addr;  // 地址位宽扩展到8位wire        ram_oe  = 1'b1;  // 输出使能始终有效wire        ram_clk = I_clk; wire        ram_rst = 1'b0;reg         ram_we;// ------------------------------------------------------------------// 实例化单口 RAM（写优先模式，带输出寄存器）// ------------------------------------------------------------------SinglePortRam single_port_ram (.doa   (ram_dout),    // 数据输出.dia   (ram_din),     // 数据输入.addra (ram_addr),    // 地址.ocea  (ram_oe),      // 输出使能，控制输出寄存器.clka  (ram_clk),     // 时钟.wea   (ram_we),      // 写使能.rsta  (ram_rst)      // 复位);// ------------------------------------------------------------------// 状态机定义// ------------------------------------------------------------------localparam S_IDLE         = 3'd0;localparam S_WRITE        = 3'd1; // 写操作localparam S_READ_SETUP   = 3'd2; // 准备读地址localparam S_READ_WAIT    = 3'd3; // 等待输出寄存器localparam S_CHECK        = 3'd4; // 比较结果localparam S_WRITE_HOLD   = 3'd5;  // 保持写使能多一个周期reg [2:0] state = S_IDLE;reg [3:0] cnt   = 4'd0;        // 测试地址 0~7// 数据与期望值的管线，适应输出寄存器延迟reg [7:0] exp_data;            // 期望数据reg [7:0] dout_reg;            // 寄存后的读出数据// 统计/调试reg [3:0] error_count;reg [7:0] last_error_addr;reg [7:0] last_error_data;reg [7:0] last_expected;// ------------------------------------------------------------------// 主状态机：写 -> 读 -> 等待输出 -> 比较// 针对写优先模式优化：写操作时输出会立即更新// ------------------------------------------------------------------always @(posedge I_clk) begincase (state)S_IDLE: beginram_we      <= 1'b0;ram_addr    <= 8'd0;ram_din     <= 8'd0;cnt         <= 4'd0;error_count <= 4'd0;state       <= S_WRITE;end// 先给地址/数据S_WRITE: beginram_addr <= {4'd0, cnt};ram_din  <= {4'd0, cnt};exp_data <= {4'd0, cnt};state    <= S_WRITE_HOLD;end// 再拉高写使能并保持一个周期S_WRITE_HOLD: beginram_we   <= 1'b1;state    <= S_READ_SETUP;endS_READ_SETUP: beginram_we   <= 1'b0;ram_addr <= {4'd0, cnt};  // 保持同一地址state    <= S_READ_WAIT;endS_READ_WAIT: begindout_reg <= ram_dout;state    <= S_CHECK;endS_CHECK: beginif (dout_reg != exp_data) beginerror_count     <= error_count + 1'b1;last_error_addr <= {4'd0, cnt};last_error_data <= dout_reg;last_expected   <= exp_data;endif (cnt == 4'd7) begincnt   <= 4'd0;state <= S_IDLE;end else begincnt   <= cnt + 1'b1;state <= S_WRITE;endenddefault: state <= S_IDLE;endcaseend// ------------------------------------------------------------------// LED 指示：无错误常亮，有错误慢闪// ------------------------------------------------------------------reg [24:0] led_counter = 25'd0;reg        slow_toggle = 1'b0;always @(posedge I_clk) beginif (error_count == 4'd0) beginO_led2 <= 1'b0;  // 无错误：常亮end else beginif (led_counter >= 25'd10_000_000 - 1) beginled_counter <= 25'd0;slow_toggle <= ~slow_toggle;O_led2      <= slow_toggle; // 有错误：慢速闪烁end else beginled_counter <= led_counter + 1'b1;endendend// ------------------------------------------------------------------// 调试信号（便于 ILA/在线抓取）// ------------------------------------------------------------------wire [7:0] error_count_out = {4'b0, error_count};wire [7:0] current_addr    = {4'd0, cnt};wire [7:0] current_data    = dout_reg;wire [7:0] expected_out    = exp_data;endmodule
