velero 资源备份测试

news 2025/8/14 8:56:54

使用的命令是velero backup，created就是备份，delete就是删除，down是将K8s的一些mainfest文件下载下来。

[root@master ~]# velero backup
Work with backupsUsage:velero backup [command]Available Commands:create      Create a backupdelete      Delete backupsdescribe    Describe backupsdownload    Download all Kubernetes manifests for a backupget         Get backupslogs        Get backup logs

[root@master ~]# kubectl create deployment myapp --image registry.cn-beijing.aliyuncs.com/wangxiaochun/pod-test:v0.1 --replicas 1 -n demo[root@master ~]# kubectl get pod -n demo
NAME                     READY   STATUS    RESTARTS   AGE
myapp-659c5c8476-v8rkf   1/1     Running   0          2m10s

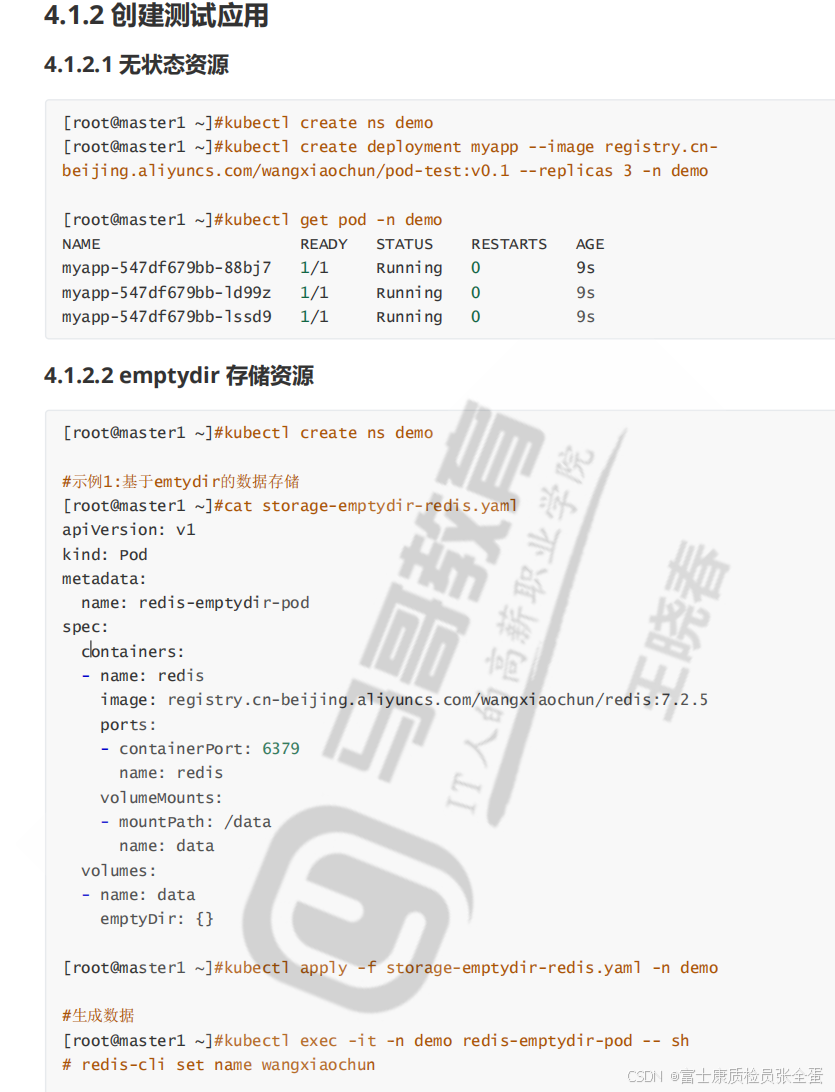

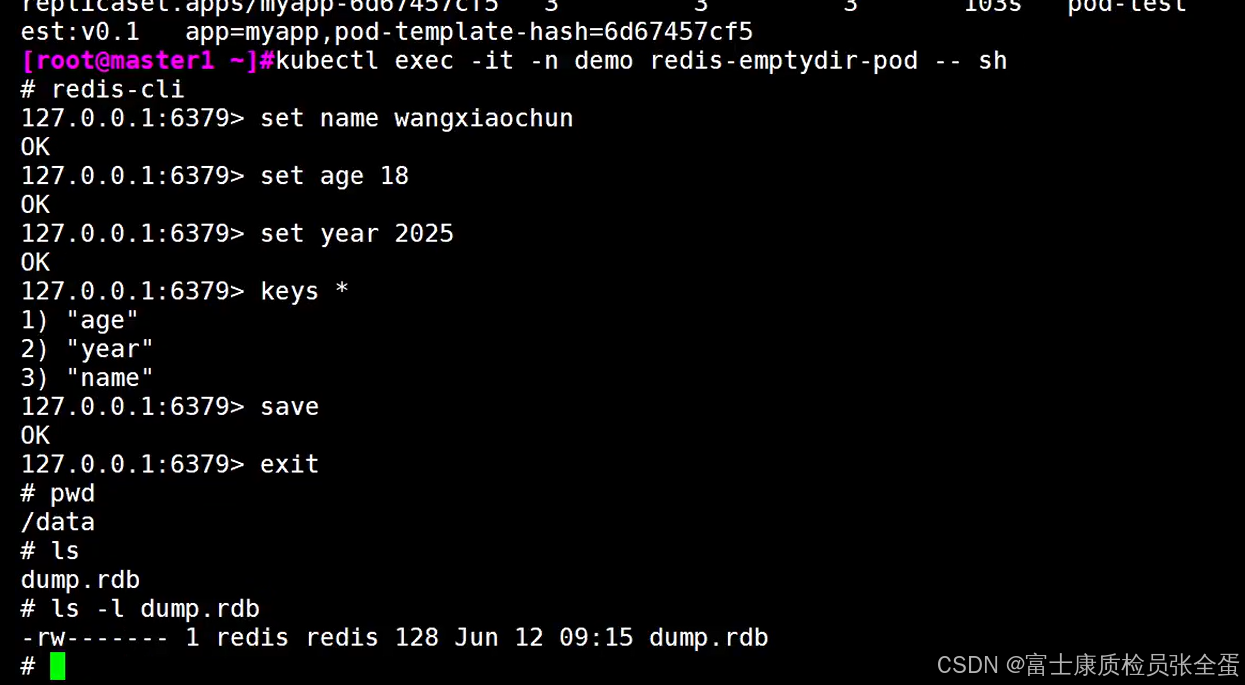

redis里面是可以存储数据的，向里面写入数据，保存在data目录下，里面有一个dump文件。

[root@master ~]# velero backup create --help
Create a backupUsage:velero backup create NAME [flags]Examples:    将所有的资源都备份，如果所有备份使用etcd就行# Create a backup containing all resources.velero backup create backup1如果要使用某个名称空间来备份velero backup create nginx-backup --include-namespaces nginx多个名称空间备份# Create a backup excluding the velero and default namespaces.velero backup create backup2 --exclude-namespaces velero,default

下面为了识别多次备份，加入时间戳，方便区分不同备份。

k8s-backup-$TIME   备份的名字，这个就引用了前面的变量--kubeconfig ~/.kube/config  默认的，可以不写--include-namespaces=demo 要备份的名称空间，如果多个，逗号隔开如果要备份数据 --default-volumes-to-fs-backup加上当前存储不支持快照  --snapshot-volumes=falsevelero backup create k8s-backup-$TIME --kubeconfig ~/.kube/config --include-namespaces=demo --default-volumes-to-fs-backup --snapshot-volumes=false --wait----------------------------------------------------------------------------------[root@master ~]# TIME=`date +%F-%H-%M-%S`[root@master ~]# velero backup create k8s-backup-$TIME --include-namespaces=demo --default-volumes-to-fs-backup --snapshot-volumes=falseBackup request "k8s-backup-2025-08-04-20-13-42" submitted successfully.
Run `velero backup describe k8s-backup-2025-08-04-20-13-42` or `velero backup logs k8s-backup-2025-08-04-20-13-42` for more details.submitted successfully.  备份就提交完成查看是否备份结束的日志   velero backup describe k8s-backup-2025-08-04-20-13-42[root@master ~]# velero backup describe k8s-backup-2025-08-04-20-13-42
Name:         k8s-backup-2025-08-04-20-13-42
Namespace:    velero
Labels:       velero.io/storage-location=default
Annotations:  velero.io/resource-timeout=10m0svelero.io/source-cluster-k8s-gitversion=v1.21.5velero.io/source-cluster-k8s-major-version=1velero.io/source-cluster-k8s-minor-version=21Phase:  CompletedNamespaces:Included:  demoExcluded:  <none>Resources:Included:        *Excluded:        <none>Cluster-scoped:  autoLabel selector:  <none>Or label selector:  <none>Storage Location:  defaultVelero-Native Snapshot PVs:  false
Snapshot Move Data:          false
Data Mover:                  veleroTTL:  720h0m0sCSISnapshotTimeout:    10m0s
ItemOperationTimeout:  4h0m0sHooks:  <none>Backup Format Version:  1.1.0Started:    2025-08-04 20:18:10 +0800 CST
Completed:  2025-08-04 20:18:12 +0800 CSTExpiration:  2025-09-03 20:18:09 +0800 CSTTotal items to be backed up:  14
Items backed up:              14Backup Volumes:Velero-Native Snapshots: <none included>CSI Snapshots: <none included>Pod Volume Backups: <none included>HooksAttempted:  0
HooksFailed:     0

可以看到资源是已经创建出来，备份已经完成，velero客户端也可以去查看备份。

[root@master ~]# kubectl get backup -A
NAMESPACE   NAME                             AGE
velero      k8s-backup-2025-08-04-20-13-42   4m32s[root@master ~]# velero backup get
NAME                             STATUS      ERRORS   WARNINGS   CREATED                         EXPIRES   STORAGE LOCATION   SELECTOR
k8s-backup-2025-08-04-20-13-42   Completed   0        0          2025-08-04 20:18:10 +0800 CST   29d       default            <none>

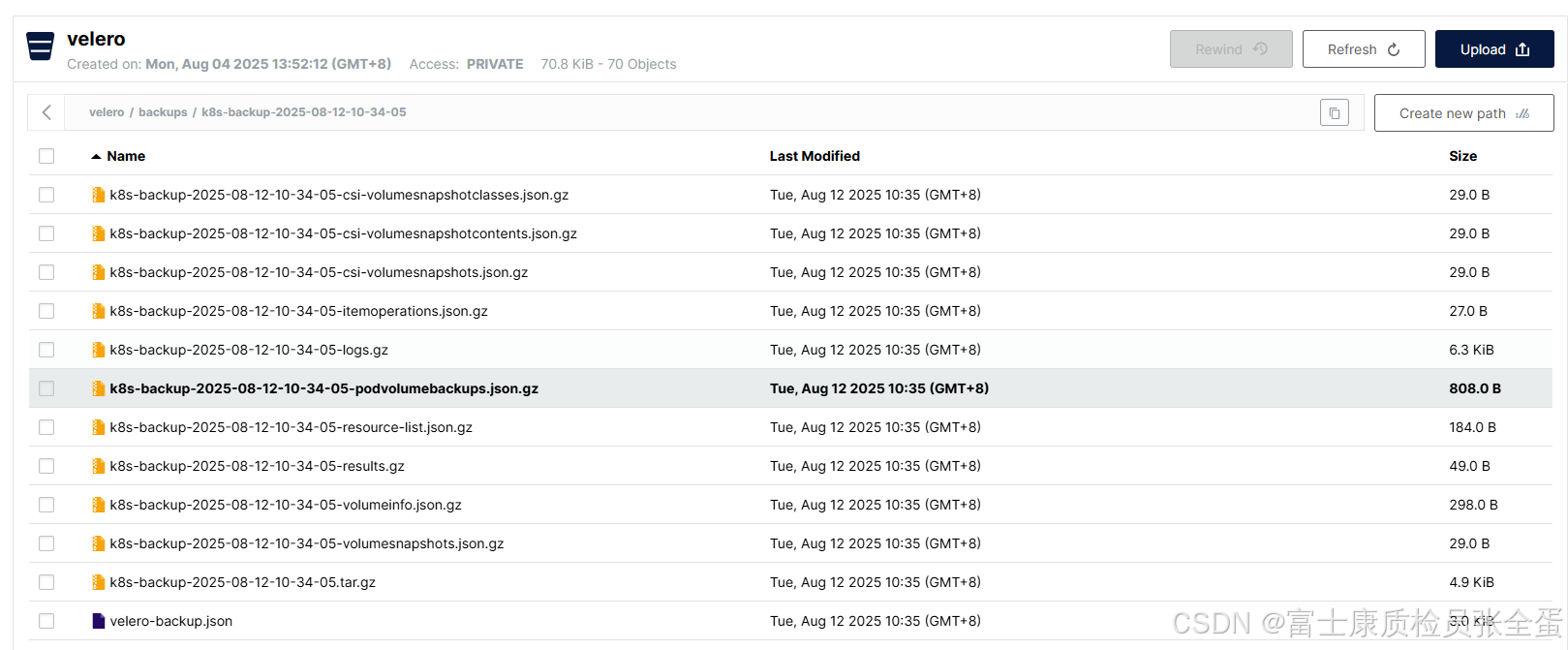

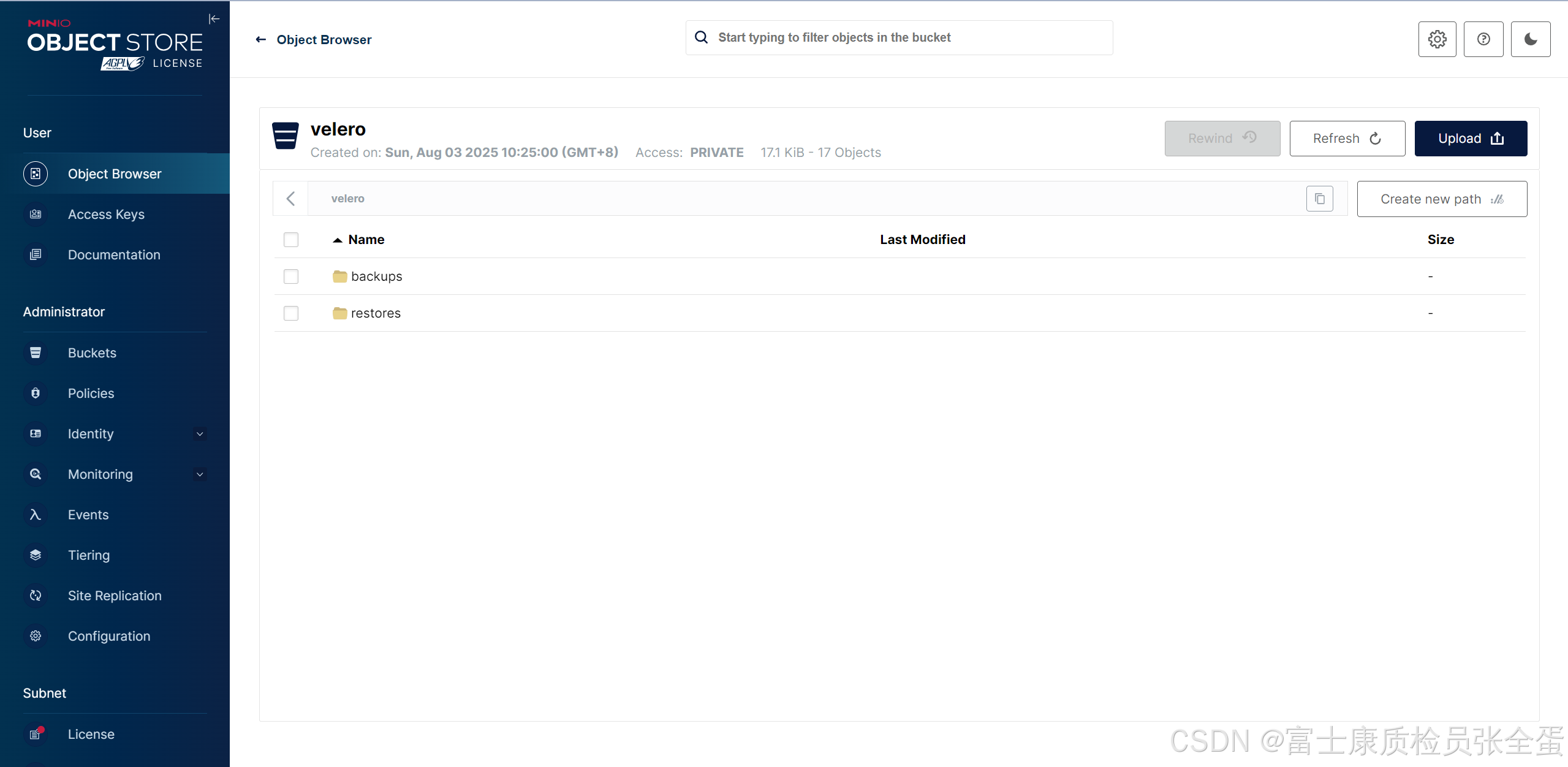

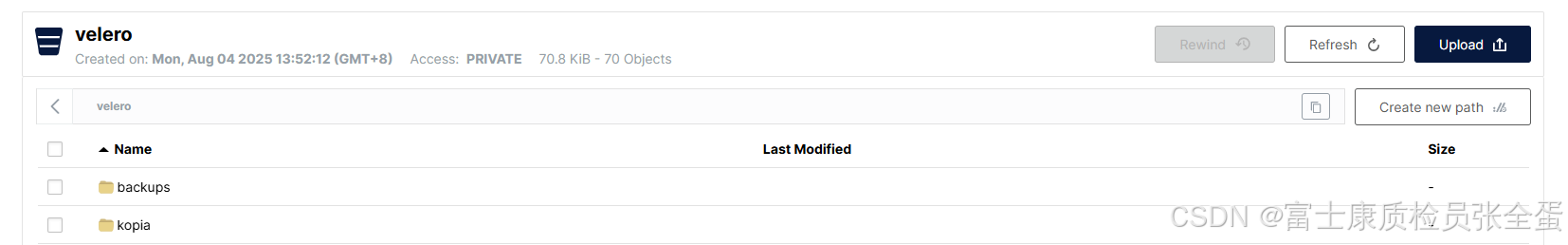

数据其实已经备份到minio去了，这样数据就已经备份完成。

数据恢复

如果k8s都启动不起来了，那使用velero是没用的。

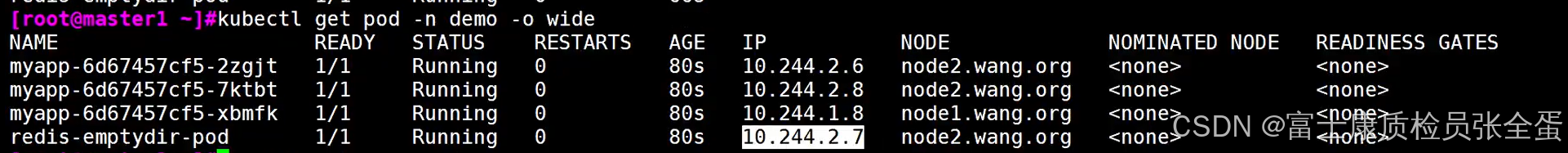

[root@master ~]# kubectl get pod -o wide -n demo
NAME                     READY   STATUS    RESTARTS   AGE   IP            NODE    NOMINATED NODE   READINESS GATES
myapp-659c5c8476-z24g8   1/1     Running   0          16s   10.233.90.5   node1   <none>           <none>[root@master ~]# kubectl delete ns demo
namespace "demo" deleted

先查到备份，然后指定从哪个版本进行还原

[root@master ~]# velero get backup
NAME                             STATUS      ERRORS   WARNINGS   CREATED                         EXPIRES   STORAGE LOCATION   SELECTOR
k8s-backup-2025-08-04-20-13-42   Completed   0        0          2025-08-04 20:18:10 +0800 CST   29d       default            <none>[root@master ~]# velero restore create --from-backup k8s-backup-2025-08-04-20-13-42  --waitRestore request "k8s-backup-2025-08-04-20-13-42-20250804203741" submitted successfully.
Waiting for restore to complete. You may safely press ctrl-c to stop waiting - your restore will continue in the background.
.
Restore completed with status: Completed. You may check for more information using the commands `velero restore describe k8s-backup-2025-08-04-20-13-42-20250804203741` and `velero restore logs k8s-backup-2025-08-04-20-13-42-20250804203741`.[root@master ~]# kubectl get restore -A
NAMESPACE   NAME                                            AGE
velero      k8s-backup-2025-08-04-20-13-42-20250804203741   5m14s[root@master ~]# velero get restore
NAME                                            BACKUP                           STATUS      STARTED                         COMPLETED                       ERRORS   WARNINGS   CREATED                         SELECTOR
k8s-backup-2025-08-04-20-13-42-20250804203741   k8s-backup-2025-08-04-20-13-42   Completed   2025-08-04 20:37:42 +0800 CST   2025-08-04 20:37:43 +0800 CST   0        1          2025-08-04 20:37:42 +0800 CST   <none>

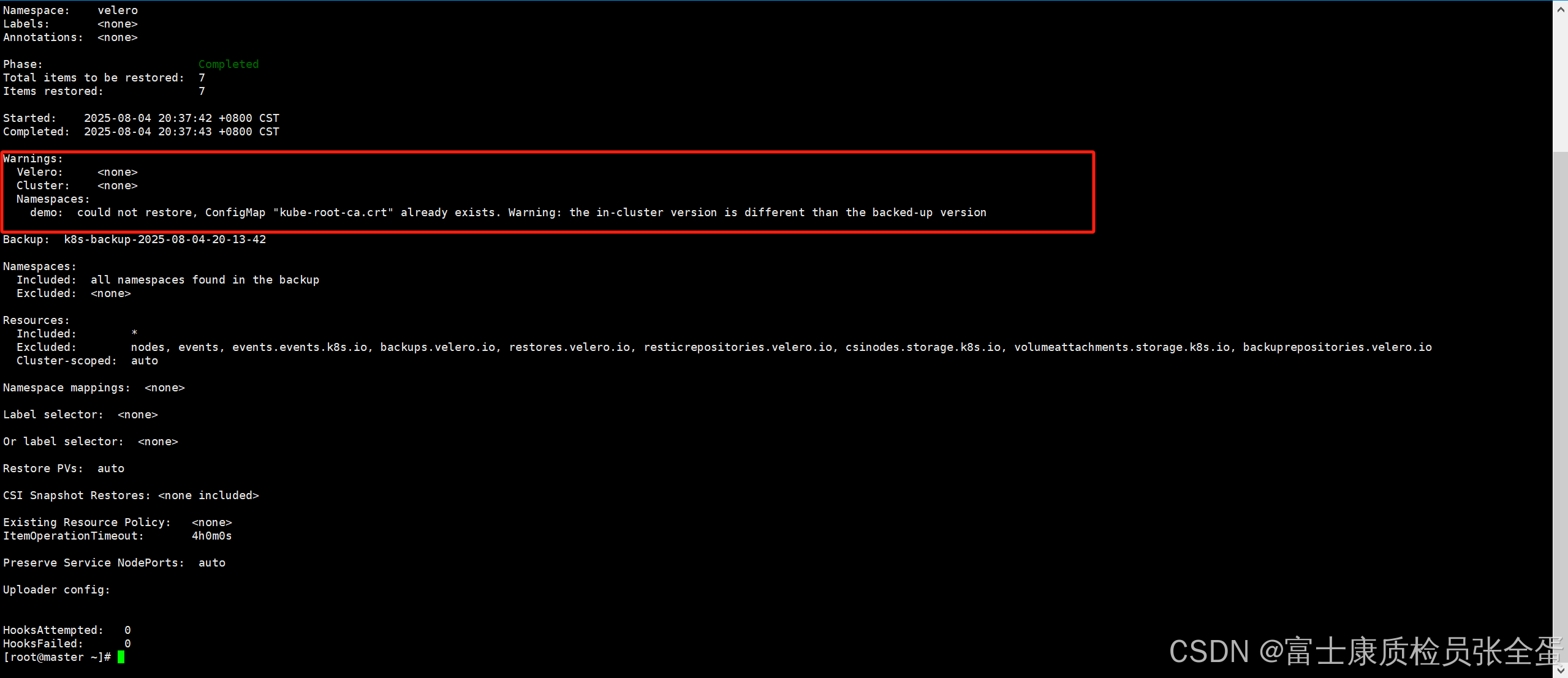

红色部分意思是名称空间有了，就不需要还原了，这不是业务数据，不需要管。

[root@master ~]# kubectl get pod -n demo -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP            NODE    NOMINATED NODE   READINESS GATES
myapp-659c5c8476-v8rkf   1/1     Running   0          10m   10.233.90.6   node1   <none>           <none>

然后查看里面有没有对应的数据，看看redis数据还在不在。
