client-go: k8s选主

快速上手

下面这个代码就是一个选主的大概逻辑

package mainimport ("context""flag""fmt"_ "net/http/pprof""os""path/filepath""time""golang.org/x/exp/rand"v1 "k8s.io/api/core/v1"metav1 "k8s.io/apimachinery/pkg/apis/meta/v1""k8s.io/apimachinery/pkg/util/uuid""k8s.io/client-go/kubernetes""k8s.io/client-go/kubernetes/scheme"corev1 "k8s.io/client-go/kubernetes/typed/core/v1""k8s.io/client-go/tools/clientcmd""k8s.io/client-go/tools/leaderelection""k8s.io/client-go/tools/leaderelection/resourcelock""k8s.io/client-go/tools/record""k8s.io/client-go/util/homedir"
)func main() {ctx := context.Background()var kubeconfig *stringif home := homedir.HomeDir(); home != "" {kubeconfig = flag.String("kubeconfig", filepath.Join(home, ".kube", "config"), "")}config, err := clientcmd.BuildConfigFromFlags("", *kubeconfig)if err != nil {panic(err)}clientset, err := kubernetes.NewForConfig(config)if err != nil {panic(err)}broadcaster := record.NewBroadcaster()broadcaster.StartRecordingToSink(&corev1.EventSinkImpl{Interface: clientset.CoreV1().Events("default"),})eventRecorder := broadcaster.NewRecorder(scheme.Scheme,v1.EventSource{Component: "hello-word"})createIdentity := func() string {hostname, err := os.Hostname()if err != nil {hostname = fmt.Sprintf("rand%d", rand.Intn(10000))}return fmt.Sprintf("%s_%s", hostname, string(uuid.NewUUID()))}lock := &resourcelock.LeaseLock{LeaseMeta: metav1.ObjectMeta{Namespace: "default",Name:      "hello-world",},Client: clientset.CoordinationV1(),LockConfig: resourcelock.ResourceLockConfig{Identity:      createIdentity(),EventRecorder: eventRecorder,},}leaderelection.RunOrDie(ctx, leaderelection.LeaderElectionConfig{Lock:          lock,LeaseDuration: 5 * time.Second,RenewDeadline: 4 * time.Second,RetryPeriod:   2 * time.Second,Callbacks: leaderelection.LeaderCallbacks{OnStartedLeading: func(ctx context.Context) {fmt.Println("start leading")},OnStoppedLeading: func() {fmt.Println("stop leading")},OnNewLeader: func(identity string) {fmt.Printf("new leader: %s\n", identity)},},Coordinated: false,})
}

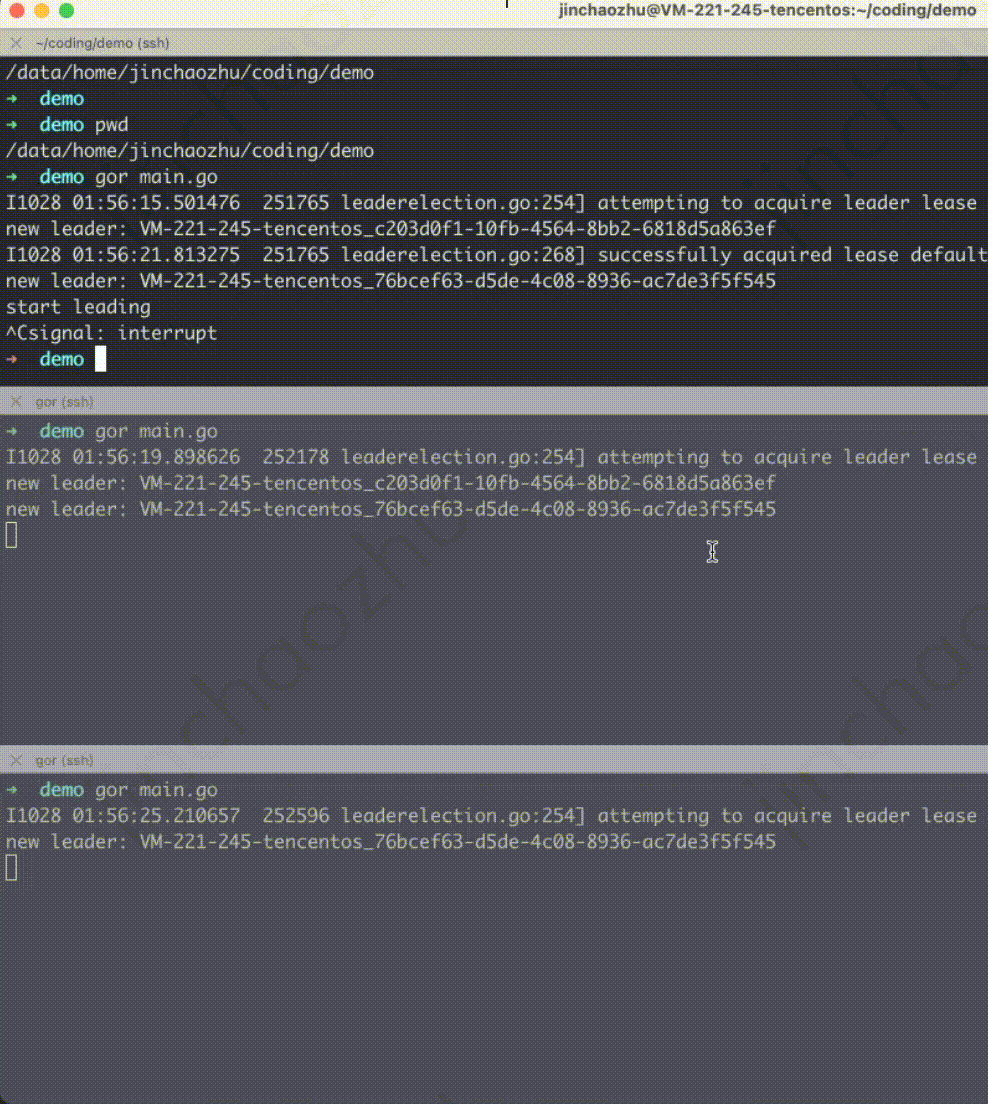

我们同时启动多个终端来运行这个程序，并且杀掉主节点来模拟节点挂掉，观察是否会重新进行选举出新的master

从图中可以看到，第一个程序选为主节点之后，第二三个程序自动成为slave，我们 kill 掉第一个程序之后，第二个程序抢到了锁成为了 master

租约 Lease

k8s 内置很多种资源，其中 lease 也是k8s的一种资源，顾名思义表达的是租户对某种资源的

占有的信息表示

➜  ~ k get lease -A
NAMESPACE         NAME                      HOLDER                                                      AGE
default           hello-world               VM-221-245-tencentos_bada2219-3a27-4b19-8b80-23fc05604391   6d7h
kube-node-lease   vm-221-245-tencentos      vm-221-245-tencentos                                        36d
kube-system       kube-controller-manager   VM-221-245-tencentos_8f5a4f85-ca0c-4b5f-ac81-8b0ff5ff2e49   36d
kube-system       kube-scheduler            VM-221-245-tencentos_4fab96c4-156b-4a77-b862-87224be44cb2   36d

比如我们查看一个 k8s 的 node 的 lease

➜  ~ k get lease vm-221-245-tencentos -n kube-node-lease -oyaml
apiVersion: coordination.k8s.io/v1
kind: Lease                                    # 资源的种类
metadata:creationTimestamp: "2024-09-27T12:24:07Z"    # 这个资源的创建时间戳name: vm-221-245-tencentos                   # 名称namespace: kube-node-lease                   # 命名空间ownerReferences:- apiVersion: v1kind: Nodename: vm-221-245-tencentos                 # 这个资源的占有名称uid: 5df61ad6-cc1a-4669-8b0e-d48a5b0ffb91resourceVersion: "3811080"uid: 411c6d4e-5afb-4eba-a1a0-8a56d00b75db
spec:holderIdentity: vm-221-245-tencentosleaseDurationSeconds: 40                    # 租约的时常40srenewTime: "2024-11-03T01:35:05.171458Z"    # 租约的更新时间

而实际上 leader 选举中的资源 lock 其实就是一种 lease，表明 master 主节点持有对某个资源
的唯一性

查看 https://github.com/kubernetes/client-go/tree/master/tools/leaderelection 的源文件

可以看到 leaderElection 的目录结构，主要分为 resourcelock 和 leaderelection 的主文件，

文件内容不是很多

➜  leaderelection git:(master) tree                                                                                                  jinchaozhu@VM-221-245-tencentos leaderelection %
.
├── healthzadaptor.go
├── healthzadaptor_test.go
├── leaderelection.go
├── leaderelection_test.go
├── leasecandidate.go
├── leasecandidate_test.go
├── metrics.go
├── OWNERS
└── resourcelock├── interface.go├── leaselock.go└── multilock.go

数据结构

存储 Lease 相关的信息

// LeaderElectionRecord is the record that is stored in the leader election annotation.
// This information should be used for observational purposes only and could be replaced
// with a random string (e.g. UUID) with only slight modification of this code.
// TODO(mikedanese): this should potentially be versioned
type LeaderElectionRecord struct {// leader的标识HolderIdentity       string                      `json:"holderIdentity"`// 选举间隔LeaseDurationSeconds int                         `json:"leaseDurationSeconds"`// 选举成为leader的时间AcquireTime          metav1.Time                 `json:"acquireTime"`// 续任时间RenewTime            metav1.Time                 `json:"renewTime"`// leader位置的转让次数LeaderTransitions    int                         `json:"leaderTransitions"`// 选举策略Strategy             v1.CoordinatedLeaseStrategy `json:"strategy"`PreferredHolder      string                      `json:"preferredHolder"`
}

Elector 相关的配置文件

type LeaderElectionConfig struct {// 锁，用来保证时序竞态Lock rl.Interface// 非leader候选者尝试获取leadership的间隔时间// Core clients default this value to 15 seconds.LeaseDuration time.Duration// leade 放弃leadership角色之前的确认时间// Core clients default this value to 10 seconds.RenewDeadline time.Duration// 候选者应该获取leader角色的重试时间// Core clients default this value to 2 seconds.RetryPeriod time.Duration// 回掉函数// 比如开始leader选举触发什么、成为leader触发什么、放弃leader触发什么Callbacks LeaderCallbacks// WatchDog is the associated health checker// WatchDog may be null if it's not needed/configured.WatchDog *HealthzAdaptor// ReleaseOnCancel should be set true if the lock should be released// when the run context is cancelled. If you set this to true, you must// ensure all code guarded by this lease has successfully completed// prior to cancelling the context, or you may have two processes// simultaneously acting on the critical path.ReleaseOnCancel bool// Name is the name of the resource lock for debuggingName string// Coordinated will use the Coordinated Leader Election feature// WARNING: Coordinated leader election is ALPHA.Coordinated bool
}

主要逻辑

选举的逻辑大概如下：

1. 刚开始实例启动的时候，各个实例都是一个 LeaderElector 的角色，最先开始选举的就成

为 leader；成为 leader 之后便会维护一个 LeaseLock 供每个 LeaderElector 进行访问查询

2. 其余的 LeaderElector 进入候选状态，hang 住监控 leader 的状态，必要时异常会再次参与选举
3. Leader 获取到 Leadership 之后会持续性的刷新自己的 leader 状态

func (le *LeaderElector) Run(ctx context.Context) {defer runtime.HandleCrash()defer le.config.Callbacks.OnStoppedLeading()  // StoppedLeading 函数每个节点都会执行// 未获得leadership的节点这里就会返回// acquire 就是各个节点来争抢 leadershipif !le.acquire(ctx) {return // ctx signalled done}ctx, cancel := context.WithCancel(ctx)defer cancel()// 这里只有获取到leadership的角色的节点才会执行 StartedLeadinggo le.config.Callbacks.OnStartedLeading(ctx)// 获取到 leadership 之后不停的刷新当前的状态信息le.renew(ctx)
}func (le *LeaderElector) acquire(ctx context.Context) bool {...klog.Infof("attempting to acquire leader lease %v...", desc)wait.JitterUntil(func() {if !le.config.Coordinated {succeeded = le.tryAcquireOrRenew(ctx)    // 尝试竞争} else {succeeded = le.tryCoordinatedRenew(ctx)}....klog.Infof("successfully acquired lease %v", desc)cancel().....}, le.config.RetryPeriod, JitterFactor, true, ctx.Done())return succeeded
}

核心逻辑 tryAcquireOrRenew

// tryAcquireOrRenew tries to acquire a leader lease if it is not already acquired,
// else it tries to renew the lease if it has already been acquired. Returns true
// on success else returns false.
func (le *LeaderElector) tryAcquireOrRenew(ctx context.Context) bool {now := metav1.NewTime(le.clock.Now())leaderElectionRecord := rl.LeaderElectionRecord{// 这里 identity 为当前竞选者的标识HolderIdentity:       le.config.Lock.Identity(),    LeaseDurationSeconds: int(le.config.LeaseDuration / time.Second),RenewTime:            now,AcquireTime:          now,}// 1.判断是否是Leader，如果是Leader并且Lease有效，则进行 Lock 的信息更新if le.IsLeader() && le.isLeaseValid(now.Time) {oldObservedRecord := le.getObservedRecord()leaderElectionRecord.AcquireTime = oldObservedRecord.AcquireTimeleaderElectionRecord.LeaderTransitions = oldObservedRecord.LeaderTransitionserr := le.config.Lock.Update(ctx, leaderElectionRecord)........}// 2.不是Leader,则进行锁的获取oldLeaderElectionRecord, oldLeaderElectionRawRecord, err := le.config.Lock.Get(ctx)if err != nil {........}// 3.对比检查是否 Elctection 的 Record 信息// 需要更新则刷新本地的缓存信息if !bytes.Equal(le.observedRawRecord, oldLeaderElectionRawRecord) {le.setObservedRecord(oldLeaderElectionRecord)le.observedRawRecord = oldLeaderElectionRawRecord}if len(oldLeaderElectionRecord.HolderIdentity) > 0 && le.isLeaseValid(now.Time) && !le.IsLeader() {klog.V(4).Infof("lock is held by %v and has not yet expired", oldLeaderElectionRecord.HolderIdentity)return false}// 4. 按照是否Leader判断是否进行更新 ElectionRecordif le.IsLeader() {leaderElectionRecord.AcquireTime = oldLeaderElectionRecord.AcquireTimeleaderElectionRecord.LeaderTransitions = oldLeaderElectionRecord.LeaderTransitionsle.metrics.slowpathExercised(le.config.Name)} else {leaderElectionRecord.LeaderTransitions = oldLeaderElectionRecord.LeaderTransitions + 1}// 5.更新锁本身的信息if err = le.config.Lock.Update(ctx, leaderElectionRecord); err != nil {klog.Errorf("Failed to update lock: %v", err)return false}// 更新锁成功则说明当前节点持有锁：抢锁成功/续期成功le.setObservedRecord(&leaderElectionRecord)return true
}

上面的 Lock 其实是自实现的一种 LeaseLock

// Interface offers a common interface for locking on arbitrary
// resources used in leader election.  The Interface is used
// to hide the details on specific implementations in order to allow
// them to change over time.  This interface is strictly for use
// by the leaderelection code.
type Interface interface {// Get returns the LeaderElectionRecordGet(ctx context.Context) (*LeaderElectionRecord, []byte, error)// Create attempts to create a LeaderElectionRecordCreate(ctx context.Context, ler LeaderElectionRecord) error// Update will update and existing LeaderElectionRecordUpdate(ctx context.Context, ler LeaderElectionRecord) error.....
}// Get returns the election record from a Lease spec
func (ll *LeaseLock) Get(ctx context.Context) (*LeaderElectionRecord, []byte, error) {lease, err := ll.Client.Leases(ll.LeaseMeta.Namespace).Get(ctx, ll.LeaseMeta.Name, metav1.GetOptions{})if err != nil {return nil, nil, err}ll.lease = leaserecord := LeaseSpecToLeaderElectionRecord(&ll.lease.Spec)recordByte, err := json.Marshal(*record)if err != nil {return nil, nil, err}return record, recordByte, nil
}// Create attempts to create a Lease
func (ll *LeaseLock) Create(ctx context.Context, ler LeaderElectionRecord) error {var err errorll.lease, err = ll.Client.Leases(ll.LeaseMeta.Namespace).Create(ctx, &coordinationv1.Lease{ObjectMeta: metav1.ObjectMeta{Name:      ll.LeaseMeta.Name,Namespace: ll.LeaseMeta.Namespace,},Spec: LeaderElectionRecordToLeaseSpec(&ler),}, metav1.CreateOptions{})return err
}

怎么判断当前leader是持有租约的呢？

func (le *LeaderElector) isLeaseValid(now time.Time) bool {return le.observedTime.Add(time.Second * time.Duration(le.getObservedRecord().LeaseDurationSeconds)).After(now)
}

其实就是判断上次观察到的时间与当前之间的差是否在 LeaseDurationSeconds 的范围内，在
范围内就代表是有效的

那这个选主的主到底是怎么判断的呢？

我们查看下面的判断逻辑

// IsLeader returns true if the last observed leader was this client else returns false.
func (le *LeaderElector) IsLeader() bool {return le.getObservedRecord().HolderIdentity == le.config.Lock.Identity()
}

其实就是拿当前的 ElectionRecord 和每个实例启动时的配置文件里面的 Identity 来进行比较
判断是否一致即可

而这个 ObservedRecord 的信息是从 k8s 里面进行获取的，这就保证了唯一性

Identity 是每个实例启动的唯一标识，这个字段千万不能重复，否则选举一定失败，报错如下

E1103 15:44:21.019391 3024650 leaderelection.go:429] Failed to update lock optimitically: Operation cannot be fulfilled on leases.coordination.k8s.io "hello-world": the object has been modified; please apply your changes to the latest version and try again, falling back to slow path
