华为实验WLAN 基础配置随练

news 2025/8/15 7:07:24

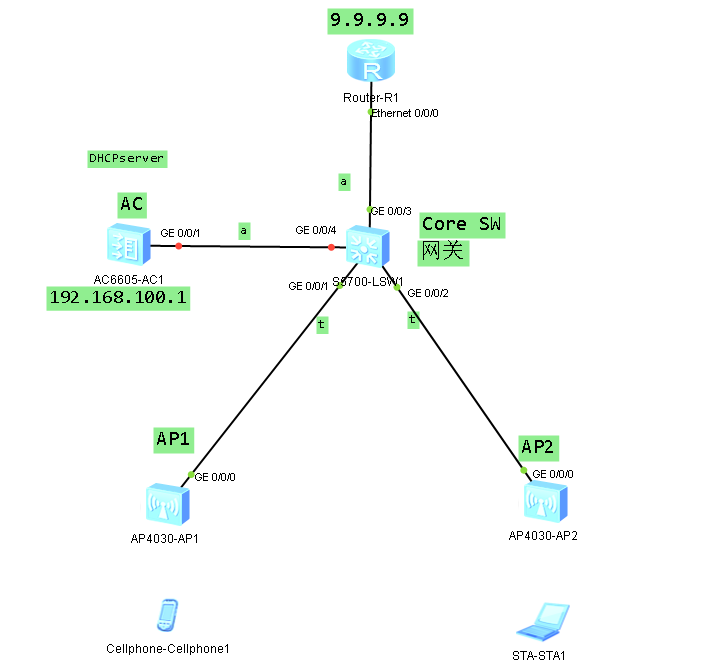

业务vlan 20  192.168.20.x管理vlan 100 192.168.100.x

步骤① 网络互通

Core sw:

vlan batch 20 100
dhcp enable
int vlanif 20IP add 192.168.20.1 24dhcp select interfaceinterface GigabitEthernet0/0/1/2port link-type trunkport trunk pvid vlan 100port trunk allow-pass vlan 100 20interface GigabitEthernet0/0/4port link-type accessport default vlan 100

AC:

vlan 100
dhcp enable
interface Vlanif100ip address 192.168.100.1 255.255.255.0dhcp select interfaceinterface GigabitEthernet0/0/1port link-type accessport default vlan 100

步骤②：AP上线


AC：
全局：capwap source interface Vlanif 100wlanap auth-mode no-auth （默认是MAC)ap-group name  Group_Dap-id 0  ap-group Group_Dap-id 1  ap-group Group_D

步骤③：WLAN业务


AC：
wlansecurity-profile name A  security wpa-wpa2 psk pass-phrase  12345678  aesssid-profile name Bssid Huawei  vap-profile name C  forward-mode direct-forservice-vlan vlan-id 20ssid-profile Bsecurity-profile Aap-group name  Group_Dvap-profile C wlan 1 radio all

wlanregulate-domain-default  域管理模板（默认）country-code CN （默认）

选配命令：


int vlanif 100dhcp server option 43 sub-option 2 ip-address 192.168.100.1 wlanap-confirm allvap-pro name Cforward-mode tunnel

AP上静态指定AC IP：

[]ap-address static ac-list 192.168.100.1

AP静态配置IP地址和网关：

[]ap-address mode static
[]ap-address static ip-address 192.168.100.87 24 192.168.100.1

调试命令：

Display  ap  all  查看ap是否上线
Display  vap all 查看是否放出射频信号
Display  station all
Display  各种模板  all
dis ap online-fail-record all
dis ap unauthorized record
dis station sta-mac 5489-98ce-7e9f
dis ap-address-info
