5B 参数，消费级显卡可部署：Wan2.2-TI2V-5B 本地部署教程，9分钟跑出电影级大片！

news 2025/8/12 13:03:59

一、模型介绍

Wan2.2-TI2V-5B 是阿里巴巴通义万相（Tongyi Wanxiang）团队于 2025 年 7 月开源的一款轻量级统一视频生成模型，属于 Wan2.2 系列中的核心成员。它以高效部署和多功能生成为特点，显著降低了电影级视频制作的技术门槛。

核心定位与功能亮点

统一生成能力
- 多模态输入支持：同时支持文本生成视频（Text-to-Video）和图文结合生成视频（Image+Text-to-Video），实现“二合一”功能，满足多样化的创作需求。
- 电影级美学控制：用户可通过调整光影、色彩、构图等超 60 个参数，精细化控制画面风格，生成具有电影质感的动态内容。
轻量化设计
- 参数规模仅 5B（50 亿参数），远小于同系列 MoE 架构模型（如 T2V-A14B 的 27B），但通过高压缩技术实现高性能输出。

技术架构创新

高压缩 3D VAE 架构
- 采用 时空压缩比 4×16×16 的 3D 变分自编码器，信息压缩率提升至 64 倍（远超前代 Wan2.1 的 4×8×8），显著减少显存占用。
- 技术优势：在保持 720P 高清画质（24fps）的同时，大幅提升生成效率。
消费级硬件适配
- 仅需 22GB 显存（如单张 RTX 4090）即可运行，支持共享显存模式（最低 8GB 显存可生成，但速度较慢）。
- 生成耗时：单次生成 5 秒视频仅需数分钟，是目前开源模型中速度最快的 720P 视频生成方案之一。

性能与效率表现

指标	参数/性能	对比优势
分辨率与帧率	720P @ 24fps	支持高清流畅输出
单次生成时长	5 秒	满足短视频、分镜需求
显存占用	22GB（推荐） / 8GB（最低）	消费级显卡可部署
生成速度	≈2.5 分钟/20 步（RTX 4090）	较同系列 A14B 模型快 50% 以上

Wan2.2系列核心型号及功能对比

型号	Wan2.2-T2V-A14B	Wan2.2-I2V-A14B	Wan2.2-TI2V-5B
类型	文生视频（Text-to-Video）	图生视频（Image-to-Video）	统一视频生成（Text/Image-to-Video）
参数量	总参数27B，激活参数14B	总参数27B，激活参数14B	5B（密集架构）
核心架构	MoE（混合专家）架构	MoE架构	高压缩3D VAE架构
生成质量	电影级（光影/构图/微表情）	电影级（细节优化突出）	高清720P（流畅性优先）
美学控制	✅ 支持60+参数精细调节	✅ 支持同等美学控制	⚠️ 部分支持（依赖提示词）
硬件要求	高性能GPU（显存≥80GB）	高性能GPU（显存≥80GB）	消费级GPU（22GB显存）
生成速度	5秒视频约15分钟（高性能卡）	类似T2V-A14B	5秒视频≤9分钟（RTX 4090）
开源平台	GitHub/HuggingFace/魔搭社区	同左	同左

二、本地部署

本次部署采用 ComfyUI 作为本地部署框架。

环境	版本号
Python	3.12
PyTorch	2.5.1
cuda	12.1
Ubtuntu	22.4.0

1.安装 Miniconda

步骤 1：更新系统
首先，更新系统软件包：

sudo apt update
sudo apt upgrade -y

步骤 2：下载 Miniconda 安装脚本
访问 Miniconda 的官方网站或使用以下命令直接下载最新版本的安装脚本（以 Python 3 为例）：

wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh

步骤 3：验证安装脚本的完整性（可选）
下载 SHA256 校验和文件并验证安装包的完整性：

wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh.sha256
sha256sum Miniconda3-latest-Linux-x86_64.sh

比较输出的校验和与.sha256 文件中的值是否一致，确保文件未被篡改。

步骤 4：运行安装脚本
为安装脚本添加执行权限：

chmod +x Miniconda3-latest-Linux-x86_64.sh

运行安装脚本：

./Miniconda3-latest-Linux-x86_64.sh

步骤 5：按照提示完成安装
安装过程中需要：

阅读许可协议 ：按 Enter 键逐页阅读，或者按 Q 退出阅读。
接受许可协议 ：输入 yes 并按 Enter。
选择安装路径 ：默认路径为/home/用户名/miniconda3，直接按 Enter 即可，或输入自定义路径。
是否初始化 Miniconda ：输入 yes 将 Miniconda 添加到您的 PATH 环境变量中。
步骤 6：激活 Miniconda 环境
安装完成后，使环境变量生效：

source ~/.bashrc

步骤 7：验证安装是否成功
检查 conda 版本：

conda --version

步骤 8：更新 conda（推荐）
为了获得最新功能和修复，更新 conda：

conda update conda

2.部署 ComfyUI

2.1 克隆代码仓库

git clone https://github.com/comfyanonymous/ComfyUI.git

2.2 安装依赖

创建 conda 虚拟环境

conda create -n comfyenv python==3.12
conda activate comfyenv

安装 PyTorch

conda install pytorch torchvision torchaudio pytorch-cuda=12.1 -c pytorch -c nvidia

安装依赖

cd ComfyUI
pip install -r requirements.txt

安装 ComfyUI Manager（可选）

#进入插件的文件
cd /ComfyUI/custom_nodes/
#下载ComfyUI Manager
git clone https://github.com/Comfy-Org/ComfyUI-Manager.git

3.下载 Wan2.2-TI2V-5B 模型相关文件

使用 modelscope 下载 Wan2.2-TI2V-5B 模型：以下是必要的模型文件

Diffusion Model wan2.2_ti2v_5B_fp16.safetensors

Text Encoder umt5_xxl_fp8_e4m3fn_scaled.safetensors

VAE wan2.2_vae.safetensors

需要将以上三个文件放入之前下载的 comfyUI 的对应目录下：

ComfyUI/
├───📂 models/
│ ├───📂 diffusion_models/
│ │ └───wan2.2_ti2v_5B_fp16.safetensors
│ ├───📂 text_encoders/
│ │ └─── umt5_xxl_fp8_e4m3fn_scaled.safetensors
│ └───📂 vae/
│ └── wan2.2_vae.safetensors

对应下载命令：（local_dir 部分的路径可以自定义）

wan2.2_ti2v_5B_fp16.safetensors：

modelscope download --model Comfy-Org/Wan_2.2_ComfyUI_Repackaged --include '*/wan2.2_ti2v_5B_fp16.safetensors' --local_dir /models/diffusion_models/

umt5_xxl_fp8_e4m3fn_scaled.safetensors：

modelscope download --model Comfy-Org/Wan_2.2_ComfyUI_Repackaged --include '*/umt5_xxl_fp8_e4m3fn_scaled.safetensors' --local_dir /models/diffusion_models/

wan2.2_vae.safetensors：

modelscope download --model Comfy-Org/Wan_2.2_ComfyUI_Repackaged --include '*/wan2.2_vae.safetensors' --local_dir /models/diffusion_models/

4.启动 ComfyUI

之前下载的 comfyUI 根目录应该有 main.py 文件。

python main.py

运行 main.py 文件之后根据控制台显示的 url 在浏览器输入该url网址进入 ComfyUI 的 GUI 界面：

To see the GUI go to: http://127.0.0.1:8188

如图：

5.使用 Wan2.2-TI2V-5B 工作流

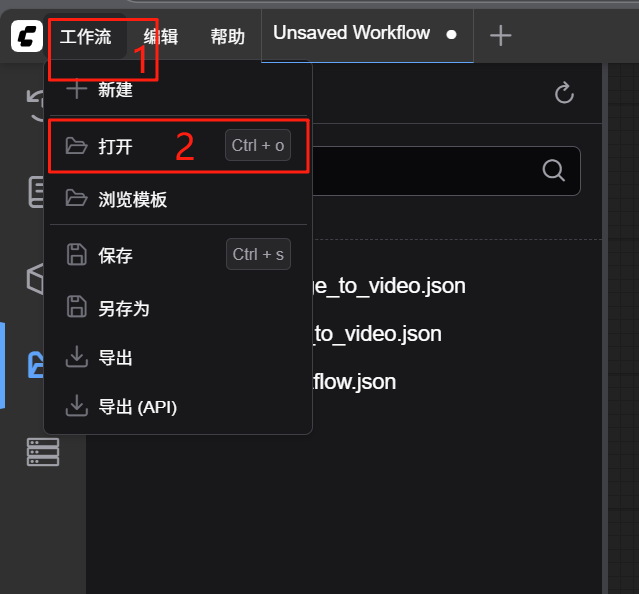

依次点击工作流 -> 打开，即可在电脑本地导入工作流 josn 文件。

选择导入：

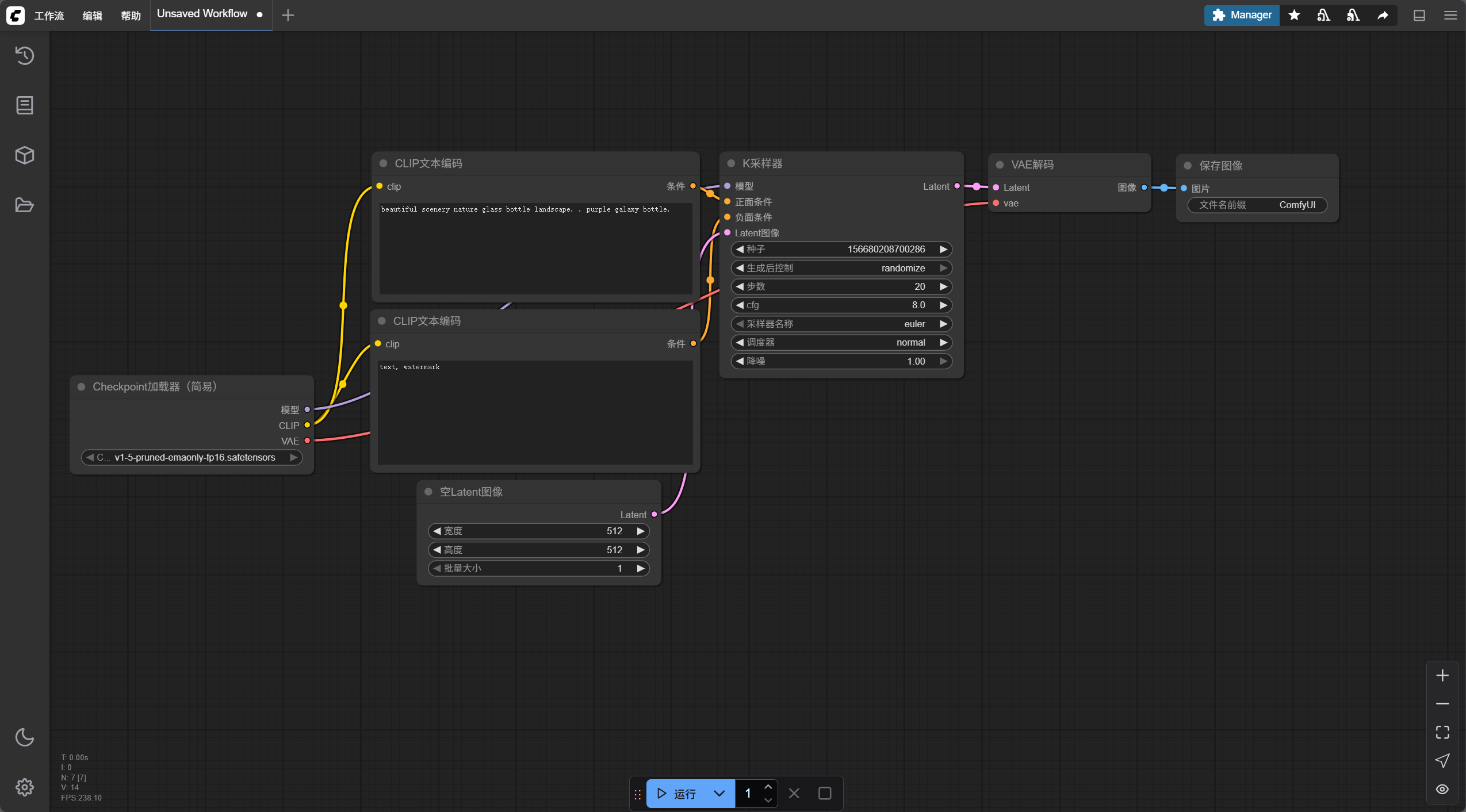

完成，工作流文件在以下红色框住的位置点击后出现。然后选取想使用的 Wan2.2-TI2V-5B 工作流

注：当然也可以自主定制工作流，后面放出三个工作流 json 文件内容作为参考。

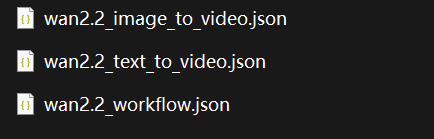

Wan2.2-TI2V-5B 工作流文件内容

wan2.2_image_to_video.json

{"id": "91f6bbe2-ed41-4fd6-bac7-71d5b5864ecb","revision": 0,"last_node_id": 57,"last_link_id": 106,"nodes": [{"id": 8,"type": "VAEDecode","pos": [1210,190],"size": [210,46],"flags": {},"order": 10,"mode": 0,"inputs": [{"name": "samples","type": "LATENT","link": 35},{"name": "vae","type": "VAE","link": 76}],"outputs": [{"name": "IMAGE","type": "IMAGE","slot_index": 0,"links": [56,93]}],"properties": {"Node name for S&R": "VAEDecode"},"widgets_values": []},{"id": 7,"type": "CLIPTextEncode","pos": [413,389],"size": [425.27801513671875,180.6060791015625],"flags": {},"order": 6,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 75}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [52]}],"title": "CLIP Text Encode (Negative Prompt)","properties": {"Node name for S&R": "CLIPTextEncode"},"widgets_values": ["色调艳丽，过曝，静态，细节模糊不清，字幕，风格，作品，画作，画面，静止，整体发灰，最差质量，低质量，JPEG压缩残留，丑陋的，残缺的，多余的手指，画得不好的手部，画得不好的脸部，畸形的，毁容的，形态畸形的肢体，手指融合，静止不动的画面，杂乱的背景，三条腿，背景人很多，倒着走"],"color": "#322","bgcolor": "#533"},{"id": 3,"type": "KSampler","pos": [863,187],"size": [315,262],"flags": {},"order": 9,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 95},{"name": "positive","type": "CONDITIONING","link": 46},{"name": "negative","type": "CONDITIONING","link": 52},{"name": "latent_image","type": "LATENT","link": 104}],"outputs": [{"name": "LATENT","type": "LATENT","slot_index": 0,"links": [35]}],"properties": {"Node name for S&R": "KSampler"},"widgets_values": [869177064731501,"randomize",30,5,"uni_pc","simple",1]},{"id": 28,"type": "SaveAnimatedWEBP","pos": [1460,190],"size": [870.8511352539062,648.4141235351562],"flags": {},"order": 11,"mode": 0,"inputs": [{"name": "images","type": "IMAGE","link": 56}],"outputs": [],"properties": {},"widgets_values": ["ComfyUI",24.000000000000004,false,90,"default"]},{"id": 39,"type": "VAELoader","pos": [20,340],"size": [330,60],"flags": {},"order": 0,"mode": 0,"inputs": [],"outputs": [{"name": "VAE","type": "VAE","slot_index": 0,"links": [76,105]}],"properties": {"Node name for S&R": "VAELoader"},"widgets_values": ["wan2.2_vae.safetensors"],"color": "#223","bgcolor": "#335"},{"id": 38,"type": "CLIPLoader","pos": [20,190],"size": [380,106],"flags": {},"order": 1,"mode": 0,"inputs": [],"outputs": [{"name": "CLIP","type": "CLIP","slot_index": 0,"links": [74,75]}],"properties": {"Node name for S&R": "CLIPLoader"},"widgets_values": ["umt5_xxl_fp8_e4m3fn_scaled.safetensors","wan","default"],"color": "#223","bgcolor": "#335"},{"id": 48,"type": "ModelSamplingSD3","pos": [440,60],"size": [210,58],"flags": {},"order": 7,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 94}],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [95]}],"properties": {"Node name for S&R": "ModelSamplingSD3"},"widgets_values": [8.000000000000002]},{"id": 37,"type": "UNETLoader","pos": [20,60],"size": [346.7470703125,82],"flags": {},"order": 2,"mode": 0,"inputs": [],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [94]}],"properties": {"Node name for S&R": "UNETLoader"},"widgets_values": ["wan2.2_ti2v_5B_fp16.safetensors","default"],"color": "#223","bgcolor": "#335"},{"id": 47,"type": "SaveWEBM","pos": [2367.213134765625,193.6114959716797],"size": [670,650],"flags": {},"order": 12,"mode": 0,"inputs": [{"name": "images","type": "IMAGE","link": 93}],"outputs": [],"properties": {"Node name for S&R": "SaveWEBM"},"widgets_values": ["ComfyUI","vp9",24,16.111083984375]},{"id": 57,"type": "LoadImage","pos": [87.407958984375,620.4816284179688],"size": [274.080078125,314],"flags": {},"order": 3,"mode": 0,"inputs": [],"outputs": [{"name": "IMAGE","type": "IMAGE","links": [106]},{"name": "MASK","type": "MASK","links": null}],"properties": {"Node name for S&R": "LoadImage"},"widgets_values": ["fennec_girl_hug.png","image"]},{"id": 56,"type": "Note","pos": [710.781005859375,608.9545288085938],"size": [320.9936218261719,182.6057586669922],"flags": {},"order": 4,"mode": 0,"inputs": [],"outputs": [],"properties": {},"widgets_values": ["Optimal resolution is: 1280x704 length 121\n\nThe reason it's lower in this workflow is just because I didn't want you to wait too long to get an initial video.\n\nTo get image to video just plug in a start image. For text to video just don't give it a start image."],"color": "#432","bgcolor": "#653"},{"id": 55,"type": "Wan22ImageToVideoLatent","pos": [420,610],"size": [271.9126892089844,150],"flags": {},"order": 8,"mode": 0,"inputs": [{"name": "vae","type": "VAE","link": 105},{"name": "start_image","shape": 7,"type": "IMAGE","link": 106}],"outputs": [{"name": "LATENT","type": "LATENT","links": [104]}],"properties": {"Node name for S&R": "Wan22ImageToVideoLatent"},"widgets_values": [1280,704,41,1]},{"id": 6,"type": "CLIPTextEncode","pos": [415,186],"size": [422.84503173828125,164.31304931640625],"flags": {},"order": 5,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 74}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [46]}],"title": "CLIP Text Encode (Positive Prompt)","properties": {"Node name for S&R": "CLIPTextEncode"},"widgets_values": ["a cute anime girl with fennec ears and a fluffy tail walking in a beautiful field"],"color": "#232","bgcolor": "#353"}],"links": [[35,3,0,8,0,"LATENT"],[46,6,0,3,1,"CONDITIONING"],[52,7,0,3,2,"CONDITIONING"],[56,8,0,28,0,"IMAGE"],[74,38,0,6,0,"CLIP"],[75,38,0,7,0,"CLIP"],[76,39,0,8,1,"VAE"],[93,8,0,47,0,"IMAGE"],[94,37,0,48,0,"MODEL"],[95,48,0,3,0,"MODEL"],[104,55,0,3,3,"LATENT"],[105,39,0,55,0,"VAE"],[106,57,0,55,1,"IMAGE"]],"groups": [],"config": {},"extra": {"ds": {"scale": 1.1167815779425287,"offset": [3.5210927484772534,-9.231468990407302]},"frontendVersion": "1.23.4"},"version": 0.4
}

wan2.2_text_to_video.json

{"id": "91f6bbe2-ed41-4fd6-bac7-71d5b5864ecb","revision": 0,"last_node_id": 57,"last_link_id": 106,"nodes": [{"id": 8,"type": "VAEDecode","pos": [1210,190],"size": [210,46],"flags": {},"order": 9,"mode": 0,"inputs": [{"name": "samples","type": "LATENT","link": 35},{"name": "vae","type": "VAE","link": 76}],"outputs": [{"name": "IMAGE","type": "IMAGE","slot_index": 0,"links": [56,93]}],"properties": {"Node name for S&R": "VAEDecode"},"widgets_values": []},{"id": 7,"type": "CLIPTextEncode","pos": [413,389],"size": [425.27801513671875,180.6060791015625],"flags": {},"order": 6,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 75}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [52]}],"title": "CLIP Text Encode (Negative Prompt)","properties": {"Node name for S&R": "CLIPTextEncode"},"widgets_values": ["色调艳丽，过曝，静态，细节模糊不清，字幕，风格，作品，画作，画面，静止，整体发灰，最差质量，低质量，JPEG压缩残留，丑陋的，残缺的，多余的手指，画得不好的手部，画得不好的脸部，畸形的，毁容的，形态畸形的肢体，手指融合，静止不动的画面，杂乱的背景，三条腿，背景人很多，倒着走"],"color": "#322","bgcolor": "#533"},{"id": 3,"type": "KSampler","pos": [863,187],"size": [315,262],"flags": {},"order": 8,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 95},{"name": "positive","type": "CONDITIONING","link": 46},{"name": "negative","type": "CONDITIONING","link": 52},{"name": "latent_image","type": "LATENT","link": 104}],"outputs": [{"name": "LATENT","type": "LATENT","slot_index": 0,"links": [35]}],"properties": {"Node name for S&R": "KSampler"},"widgets_values": [285741127119524,"randomize",30,5,"uni_pc","simple",1]},{"id": 39,"type": "VAELoader","pos": [20,340],"size": [330,60],"flags": {},"order": 0,"mode": 0,"inputs": [],"outputs": [{"name": "VAE","type": "VAE","slot_index": 0,"links": [76,105]}],"properties": {"Node name for S&R": "VAELoader"},"widgets_values": ["wan2.2_vae.safetensors"],"color": "#223","bgcolor": "#335"},{"id": 38,"type": "CLIPLoader","pos": [20,190],"size": [380,106],"flags": {},"order": 1,"mode": 0,"inputs": [],"outputs": [{"name": "CLIP","type": "CLIP","slot_index": 0,"links": [74,75]}],"properties": {"Node name for S&R": "CLIPLoader"},"widgets_values": ["umt5_xxl_fp8_e4m3fn_scaled.safetensors","wan","default"],"color": "#223","bgcolor": "#335"},{"id": 48,"type": "ModelSamplingSD3","pos": [440,60],"size": [210,58],"flags": {},"order": 7,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 94}],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [95]}],"properties": {"Node name for S&R": "ModelSamplingSD3"},"widgets_values": [8.000000000000002]},{"id": 37,"type": "UNETLoader","pos": [20,60],"size": [346.7470703125,82],"flags": {},"order": 2,"mode": 0,"inputs": [],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [94]}],"properties": {"Node name for S&R": "UNETLoader"},"widgets_values": ["wan2.2_ti2v_5B_fp16.safetensors","default"],"color": "#223","bgcolor": "#335"},{"id": 47,"type": "SaveWEBM","pos": [2367.213134765625,193.6114959716797],"size": [670,650],"flags": {},"order": 11,"mode": 0,"inputs": [{"name": "images","type": "IMAGE","link": 93}],"outputs": [],"properties": {"Node name for S&R": "SaveWEBM"},"widgets_values": ["ComfyUI","vp9",24,16.111083984375]},{"id": 56,"type": "Note","pos": [710.781005859375,608.9545288085938],"size": [320.9936218261719,182.6057586669922],"flags": {},"order": 3,"mode": 0,"inputs": [],"outputs": [],"properties": {},"widgets_values": ["Optimal resolution is: 1280x704 length 121\n\nThe reason it's lower in this workflow is just because I didn't want you to wait too long to get an initial video.\n\nTo get image to video just plug in a start image. For text to video just don't give it a start image."],"color": "#432","bgcolor": "#653"},{"id": 55,"type": "Wan22ImageToVideoLatent","pos": [420,610],"size": [271.9126892089844,150],"flags": {},"order": 4,"mode": 0,"inputs": [{"name": "vae","type": "VAE","link": 105},{"name": "start_image","shape": 7,"type": "IMAGE","link": null}],"outputs": [{"name": "LATENT","type": "LATENT","links": [104]}],"properties": {"Node name for S&R": "Wan22ImageToVideoLatent"},"widgets_values": [1280,704,41,1]},{"id": 6,"type": "CLIPTextEncode","pos": [415,186],"size": [422.84503173828125,164.31304931640625],"flags": {},"order": 5,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 74}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [46]}],"title": "CLIP Text Encode (Positive Prompt)","properties": {"Node name for S&R": "CLIPTextEncode"},"widgets_values": ["drone shot of a volcano erupting with a fox walking on it"],"color": "#232","bgcolor": "#353"},{"id": 28,"type": "SaveAnimatedWEBP","pos": [1460,190],"size": [870.8511352539062,648.4141235351562],"flags": {},"order": 10,"mode": 0,"inputs": [{"name": "images","type": "IMAGE","link": 56}],"outputs": [],"properties": {},"widgets_values": ["ComfyUI",24.000000000000004,false,80,"default"]}],"links": [[35,3,0,8,0,"LATENT"],[46,6,0,3,1,"CONDITIONING"],[52,7,0,3,2,"CONDITIONING"],[56,8,0,28,0,"IMAGE"],[74,38,0,6,0,"CLIP"],[75,38,0,7,0,"CLIP"],[76,39,0,8,1,"VAE"],[93,8,0,47,0,"IMAGE"],[94,37,0,48,0,"MODEL"],[95,48,0,3,0,"MODEL"],[104,55,0,3,3,"LATENT"],[105,39,0,55,0,"VAE"]],"groups": [],"config": {},"extra": {"ds": {"scale": 1.11678157794253,"offset": [7.041966347099882,-19.733042401058505]},"frontendVersion": "1.23.4"},"version": 0.4
}

wan2.2_workflow.json

{"id": "91f6bbe2-ed41-4fd6-bac7-71d5b5864ecb","revision": 0,"last_node_id": 59,"last_link_id": 108,"nodes": [{"id": 37,"type": "UNETLoader","pos": [-30,50],"size": [346.7470703125,82],"flags": {},"order": 0,"mode": 0,"inputs": [],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [94]}],"properties": {"Node name for S&R": "UNETLoader","cnr_id": "comfy-core","ver": "0.3.45","models": [{"name": "wan2.2_ti2v_5B_fp16.safetensors","url": "https://huggingface.co/Comfy-Org/Wan_2.2_ComfyUI_Repackaged/resolve/main/split_files/diffusion_models/wan2.2_ti2v_5B_fp16.safetensors","directory": "diffusion_models"}]},"widgets_values": ["wan2.2_ti2v_5B_fp16.safetensors","default"]},{"id": 38,"type": "CLIPLoader","pos": [-30,190],"size": [350,110],"flags": {},"order": 1,"mode": 0,"inputs": [],"outputs": [{"name": "CLIP","type": "CLIP","slot_index": 0,"links": [74,75]}],"properties": {"Node name for S&R": "CLIPLoader","cnr_id": "comfy-core","ver": "0.3.45","models": [{"name": "umt5_xxl_fp8_e4m3fn_scaled.safetensors","url": "https://huggingface.co/Comfy-Org/Wan_2.1_ComfyUI_repackaged/resolve/main/split_files/text_encoders/umt5_xxl_fp8_e4m3fn_scaled.safetensors","directory": "text_encoders"}]},"widgets_values": ["umt5_xxl_fp8_e4m3fn_scaled.safetensors","wan","default"]},{"id": 39,"type": "VAELoader","pos": [-30,350],"size": [350,60],"flags": {},"order": 2,"mode": 0,"inputs": [],"outputs": [{"name": "VAE","type": "VAE","slot_index": 0,"links": [76,105]}],"properties": {"Node name for S&R": "VAELoader","cnr_id": "comfy-core","ver": "0.3.45","models": [{"name": "wan2.2_vae.safetensors","url": "https://huggingface.co/Comfy-Org/Wan_2.2_ComfyUI_Repackaged/resolve/main/split_files/vae/wan2.2_vae.safetensors","directory": "vae"}]},"widgets_values": ["wan2.2_vae.safetensors"]},{"id": 8,"type": "VAEDecode","pos": [1190,150],"size": [210,46],"flags": {},"order": 10,"mode": 0,"inputs": [{"name": "samples","type": "LATENT","link": 35},{"name": "vae","type": "VAE","link": 76}],"outputs": [{"name": "IMAGE","type": "IMAGE","slot_index": 0,"links": [107]}],"properties": {"Node name for S&R": "VAEDecode","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": []},{"id": 57,"type": "CreateVideo","pos": [1200,240],"size": [270,78],"flags": {},"order": 11,"mode": 0,"inputs": [{"name": "images","type": "IMAGE","link": 107},{"name": "audio","shape": 7,"type": "AUDIO","link": null}],"outputs": [{"name": "VIDEO","type": "VIDEO","links": [108]}],"properties": {"Node name for S&R": "CreateVideo","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": [24]},{"id": 58,"type": "SaveVideo","pos": [1200,370],"size": [660,450],"flags": {},"order": 12,"mode": 0,"inputs": [{"name": "video","type": "VIDEO","link": 108}],"outputs": [],"properties": {"Node name for S&R": "SaveVideo","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": ["video/ComfyUI","auto","auto"]},{"id": 55,"type": "Wan22ImageToVideoLatent","pos": [380,540],"size": [271.9126892089844,150],"flags": {},"order": 8,"mode": 0,"inputs": [{"name": "vae","type": "VAE","link": 105},{"name": "start_image","shape": 7,"type": "IMAGE","link": 106}],"outputs": [{"name": "LATENT","type": "LATENT","links": [104]}],"properties": {"Node name for S&R": "Wan22ImageToVideoLatent","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": [1280,704,121,1]},{"id": 56,"type": "LoadImage","pos": [0,540],"size": [274.080078125,314],"flags": {},"order": 3,"mode": 4,"inputs": [],"outputs": [{"name": "IMAGE","type": "IMAGE","links": [106]},{"name": "MASK","type": "MASK","links": null}],"properties": {"Node name for S&R": "LoadImage","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": ["example.png","image"]},{"id": 7,"type": "CLIPTextEncode","pos": [380,260],"size": [425.27801513671875,180.6060791015625],"flags": {},"order": 7,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 75}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [52]}],"title": "CLIP Text Encode (Negative Prompt)","properties": {"Node name for S&R": "CLIPTextEncode","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": ["色调艳丽，过曝，静态，细节模糊不清，字幕，风格，作品，画作，画面，静止，整体发灰，最差质量，低质量，JPEG压缩残留，丑陋的，残缺的，多余的手指，画得不好的手部，画得不好的脸部，畸形的，毁容的，形态畸形的肢体，手指融合，静止不动的画面，杂乱的背景，三条腿，背景人很多，倒着走"],"color": "#322","bgcolor": "#533"},{"id": 59,"type": "MarkdownNote","pos": [-550,10],"size": [480,340],"flags": {},"order": 4,"mode": 0,"inputs": [],"outputs": [],"title": "Model Links","properties": {},"widgets_values": ["[Tutorial](https://docs.comfy.org/tutorials/video/wan/wan2_2\n) | [教程](https://docs.comfy.org/zh-CN/tutorials/video/wan/wan2_2\n)\n\n**Diffusion Model**\n- [wan2.2_ti2v_5B_fp16.safetensors](https://huggingface.co/Comfy-Org/Wan_2.2_ComfyUI_Repackaged/resolve/main/split_files/diffusion_models/wan2.2_ti2v_5B_fp16.safetensors)\n\n**VAE**\n- [wan2.2_vae.safetensors](https://huggingface.co/Comfy-Org/Wan_2.2_ComfyUI_Repackaged/resolve/main/split_files/vae/wan2.2_vae.safetensors)\n\n**Text Encoder**   \n- [umt5_xxl_fp8_e4m3fn_scaled.safetensors](https://huggingface.co/Comfy-Org/Wan_2.1_ComfyUI_repackaged/resolve/main/split_files/text_encoders/umt5_xxl_fp8_e4m3fn_scaled.safetensors)\n\n\nFile save location\n\n```\nComfyUI/\n├───📂 models/\n│   ├───📂 diffusion_models/\n│   │   └───wan2.2_ti2v_5B_fp16.safetensors\n│   ├───📂 text_encoders/\n│   │   └─── umt5_xxl_fp8_e4m3fn_scaled.safetensors \n│   └───📂 vae/\n│       └── wan2.2_vae.safetensors\n```\n"],"color": "#432","bgcolor": "#653"},{"id": 6,"type": "CLIPTextEncode","pos": [380,50],"size": [422.84503173828125,164.31304931640625],"flags": {},"order": 6,"mode": 0,"inputs": [{"name": "clip","type": "CLIP","link": 74}],"outputs": [{"name": "CONDITIONING","type": "CONDITIONING","slot_index": 0,"links": [46]}],"title": "CLIP Text Encode (Positive Prompt)","properties": {"Node name for S&R": "CLIPTextEncode","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": ["Low contrast. In a retro 1970s-style subway station, a street musician plays in dim colors and rough textures. He wears an old jacket, playing guitar with focus. Commuters hurry by, and a small crowd gathers to listen. The camera slowly moves right, capturing the blend of music and city noise, with old subway signs and mottled walls in the background."],"color": "#232","bgcolor": "#353"},{"id": 3,"type": "KSampler","pos": [850,130],"size": [315,262],"flags": {},"order": 9,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 95},{"name": "positive","type": "CONDITIONING","link": 46},{"name": "negative","type": "CONDITIONING","link": 52},{"name": "latent_image","type": "LATENT","link": 104}],"outputs": [{"name": "LATENT","type": "LATENT","slot_index": 0,"links": [35]}],"properties": {"Node name for S&R": "KSampler","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": [898471028164125,"randomize",20,5,"uni_pc","simple",1]},{"id": 48,"type": "ModelSamplingSD3","pos": [850,20],"size": [210,58],"flags": {"collapsed": false},"order": 5,"mode": 0,"inputs": [{"name": "model","type": "MODEL","link": 94}],"outputs": [{"name": "MODEL","type": "MODEL","slot_index": 0,"links": [95]}],"properties": {"Node name for S&R": "ModelSamplingSD3","cnr_id": "comfy-core","ver": "0.3.45"},"widgets_values": [8]}],"links": [[35,3,0,8,0,"LATENT"],[46,6,0,3,1,"CONDITIONING"],[52,7,0,3,2,"CONDITIONING"],[74,38,0,6,0,"CLIP"],[75,38,0,7,0,"CLIP"],[76,39,0,8,1,"VAE"],[94,37,0,48,0,"MODEL"],[95,48,0,3,0,"MODEL"],[104,55,0,3,3,"LATENT"],[105,39,0,55,0,"VAE"],[106,56,0,55,1,"IMAGE"],[107,8,0,57,0,"IMAGE"],[108,57,0,58,0,"VIDEO"]],"groups": [{"id": 1,"title": "Step1 - Load models","bounding": [-50,-20,400,453.6000061035156],"color": "#3f789e","font_size": 24,"flags": {}},{"id": 2,"title": "Step3 - Prompt","bounding": [370,-20,448.27801513671875,473.2060852050781],"color": "#3f789e","font_size": 24,"flags": {}},{"id": 3,"title": "For i2v, use Ctrl + B to enable","bounding": [-50,450,400,420],"color": "#3f789e","font_size": 24,"flags": {}},{"id": 4,"title": "Video Size & length","bounding": [370,470,291.9127197265625,233.60000610351562],"color": "#3f789e","font_size": 24,"flags": {}}],"config": {},"extra": {"ds": {"scale": 0.8390545288824454,"offset": [252.56402822629002,99.17599442262053]},"frontendVersion": "1.25.1","VHS_latentpreview": false,"VHS_latentpreviewrate": 0,"VHS_MetadataImage": true,"VHS_KeepIntermediate": true},"version": 0.4
}
