UE5多人MOBA+GAS 41、制作一个飞弹，添加准心索敌

news 2025/8/11 13:48:18

文章目录

  • 添加新角色（不写了）
  • 创建一个发射技能
  • 创建一个飞弹类
  • 添加击中特效
  • 添加准星UI
  • 获取瞄准目标

添加新角色（不写了）

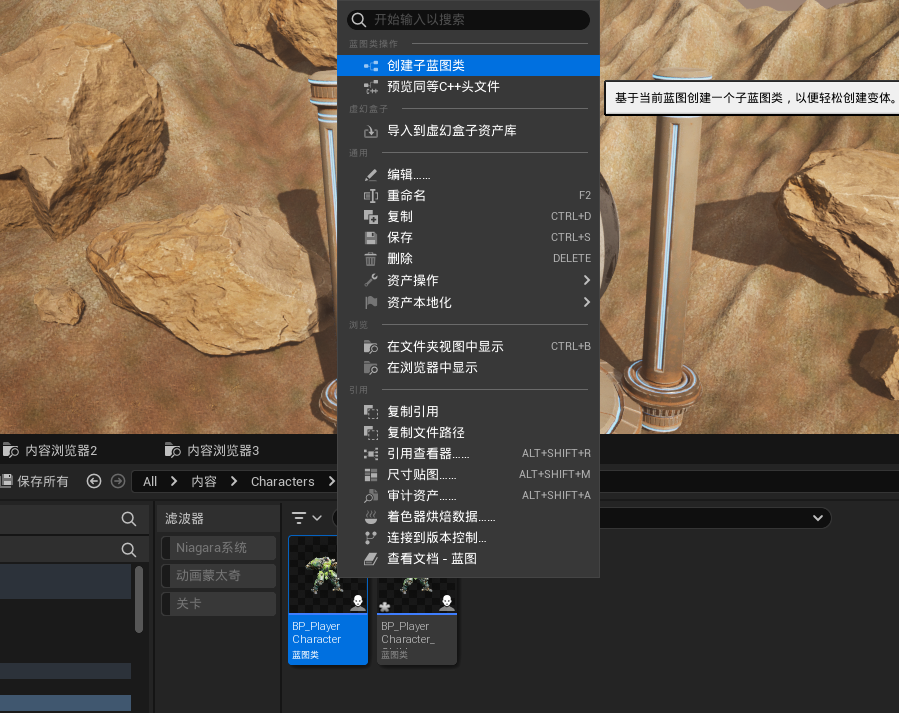

将原本的机器人蓝图改为BP_PlayerCharacter，以此创建子蓝图
在这里插入图片描述
创建动画蓝图模板（具体就是换资源，我没弄，我重新写了）
在这里插入图片描述

创建一个发射技能

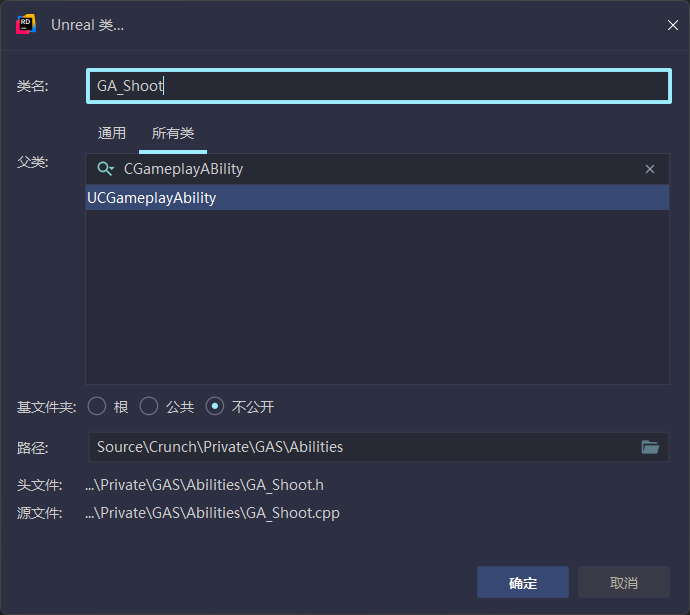

创建一个GA_Shoot
在这里插入图片描述
添加新的标签

	CRUNCH_API UE_DECLARE_GAMEPLAY_TAG_EXTERN(Stats_Crosshair)// 射击CRUNCH_API UE_DECLARE_GAMEPLAY_TAG_EXTERN(Ability_Shoot)CRUNCH_API UE_DECLARE_GAMEPLAY_TAG_EXTERN(Ability_Shoot_Hand_l)CRUNCH_API UE_DECLARE_GAMEPLAY_TAG_EXTERN(Ability_Shoot_Hand_r)//目标更新CRUNCH_API UE_DECLARE_GAMEPLAY_TAG_EXTERN(Target_Updated)

	UE_DEFINE_GAMEPLAY_TAG_COMMENT(Stats_Crosshair, "Stats.Crosshair", "准星")UE_DEFINE_GAMEPLAY_TAG_COMMENT(Ability_Shoot, "Ability.Shoot", "射击技能")UE_DEFINE_GAMEPLAY_TAG_COMMENT(Ability_Shoot_Head_l, "Ability.Shoot.Head_l", "左手开火")UE_DEFINE_GAMEPLAY_TAG_COMMENT(Ability_Shoot_Head_r, "Ability.Shoot.Head_r", "右手开火")UE_DEFINE_GAMEPLAY_TAG_COMMENT(Target_Updated, "Target.Updated", "目标更新")

到CGameplayAbility中添加提供子类调用的函数

	// 本地播放Montage动画void PlayMontageLocally(UAnimMontage* MontageToPlay);// 播放完当前分段后停止Montagevoid StopMontageAfterCurrentSection(UAnimMontage* MontageToStop);// 获取拥有者的队伍IDFGenericTeamId GetOwnerTeamId() const;

void UCGameplayAbility::PlayMontageLocally(UAnimMontage* MontageToPlay)
{UAnimInstance* OwnerAnimInst = GetOwnerAnimInstance();if (OwnerAnimInst && !OwnerAnimInst->Montage_IsPlaying(MontageToPlay)){OwnerAnimInst->Montage_Play(MontageToPlay);}
}void UCGameplayAbility::StopMontageAfterCurrentSection(UAnimMontage* MontageToStop)
{UAnimInstance* OwnerAnimInst = GetOwnerAnimInstance();if (OwnerAnimInst){FName CurrentSectionName = OwnerAnimInst->Montage_GetCurrentSection(MontageToStop);OwnerAnimInst->Montage_SetNextSection(CurrentSectionName, NAME_None, MontageToStop);}
}FGenericTeamId UCGameplayAbility::GetOwnerTeamId() const
{IGenericTeamAgentInterface* OwnerTeamInterface = Cast<IGenericTeamAgentInterface>(GetAvatarActorFromActorInfo());if (OwnerTeamInterface){return OwnerTeamInterface->GetGenericTeamId();}return FGenericTeamId::NoTeam;
}

#pragma once#include "CoreMinimal.h"
#include "GAS/Core/CGameplayAbility.h"
#include "GA_Shoot.generated.h"/*** */
UCLASS()
class CRUNCH_API UGA_Shoot : public UCGameplayAbility
{GENERATED_BODY()public:// 构造函数UGA_Shoot();// 激活能力（开始射击）virtual void ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData) override;// 输入释放（停止射击）virtual void InputReleased(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo) override;// 结束能力（能力生命周期结束）virtual void EndAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled) override;private:// 射击动画UPROPERTY(EditDefaultsOnly, Category = "Anim")TObjectPtr<UAnimMontage> ShootMontage;// 开始射击事件处理UFUNCTION()void StartShooting(FGameplayEventData Payload);// 停止射击事件处理UFUNCTION()void StopShooting(FGameplayEventData Payload);// 发射子弹UFUNCTION()void ShootProjectile(FGameplayEventData Payload);
};

#include "GA_Shoot.h"#include "Abilities/Tasks/AbilityTask_PlayMontageAndWait.h"
#include "Abilities/Tasks/AbilityTask_WaitGameplayEvent.h"UGA_Shoot::UGA_Shoot()
{// 技能激活时添加瞄准以及准星ActivationOwnedTags.AddTag(TGameplayTags::Stats_Aim);ActivationOwnedTags.AddTag(TGameplayTags::Stats_Crosshair);
}void UGA_Shoot::ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData)
{// 提交消耗以及cdif (!K2_CommitAbility()){K2_EndAbility();return;}UE_LOG(LogTemp, Warning, TEXT("激活射击技能"));// 仅在服务器或有预测权限时绑定事件if (HasAuthorityOrPredictionKey(ActorInfo, &ActivationInfo)){// 绑定开始射击事件UAbilityTask_WaitGameplayEvent* WaitStartShootingEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_BasicAttack_Pressed);WaitStartShootingEvent->EventReceived.AddDynamic(this, &UGA_Shoot::StartShooting);WaitStartShootingEvent->ReadyForActivation();// 绑定停止射击事件UAbilityTask_WaitGameplayEvent* WaitStopShootingEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_BasicAttack_Released);WaitStopShootingEvent->EventReceived.AddDynamic(this, &UGA_Shoot::StopShooting);WaitStopShootingEvent->ReadyForActivation();// 绑定发射子弹事件UAbilityTask_WaitGameplayEvent* WaitShootProjectileEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_Shoot, nullptr, false, false);WaitShootProjectileEvent->EventReceived.AddDynamic(this, &UGA_Shoot::ShootProjectile);WaitShootProjectileEvent->ReadyForActivation();}
}void UGA_Shoot::InputReleased(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo)
{UE_LOG(LogTemp, Warning, TEXT("停止射击技能"));K2_EndAbility();
}void UGA_Shoot::EndAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled)
{// 停止射击StopShooting(FGameplayEventData());Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}void UGA_Shoot::StartShooting(FGameplayEventData Payload)
{UE_LOG(LogTemp, Warning, TEXT("开始射击技能"));// 仅在服务器有权限时播放动画if (HasAuthority(&CurrentActivationInfo)){// 服务器播放射击动画UAbilityTask_PlayMontageAndWait* PlayShootMontage = UAbilityTask_PlayMontageAndWait::CreatePlayMontageAndWaitProxy(this, NAME_None, ShootMontage);PlayShootMontage->ReadyForActivation();}else{// 客户端本地播放射击动画PlayMontageLocally(ShootMontage);}
}void UGA_Shoot::StopShooting(FGameplayEventData Payload)
{if (ShootMontage){UE_LOG(LogTemp, Warning, TEXT("停止射击技能"));// 停止蒙太奇动画StopMontageAfterCurrentSection(ShootMontage);}
}void UGA_Shoot::ShootProjectile(FGameplayEventData Payload)
{
}

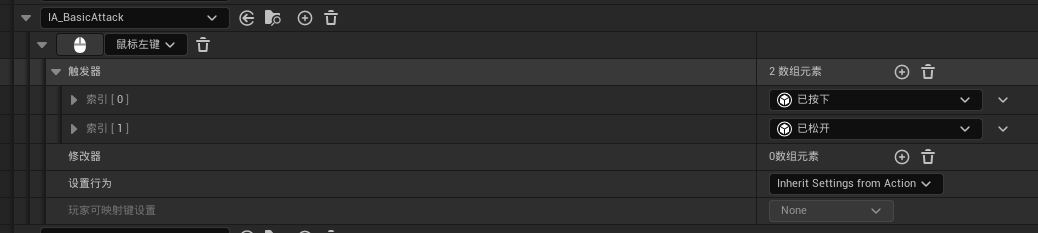

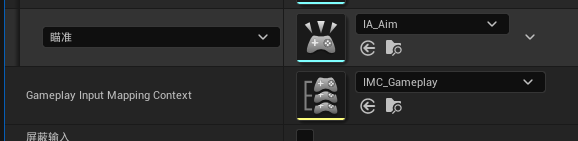

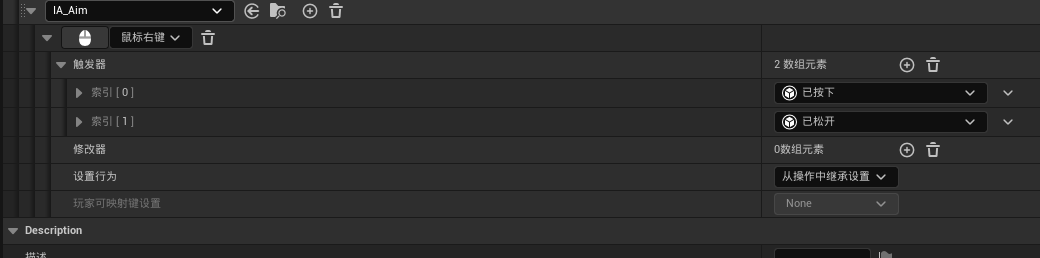

添加一个新的输入
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

创建蓝图版本的射击技能，把瞄准射击技能添加到角色中
在这里插入图片描述

创建一个飞弹类

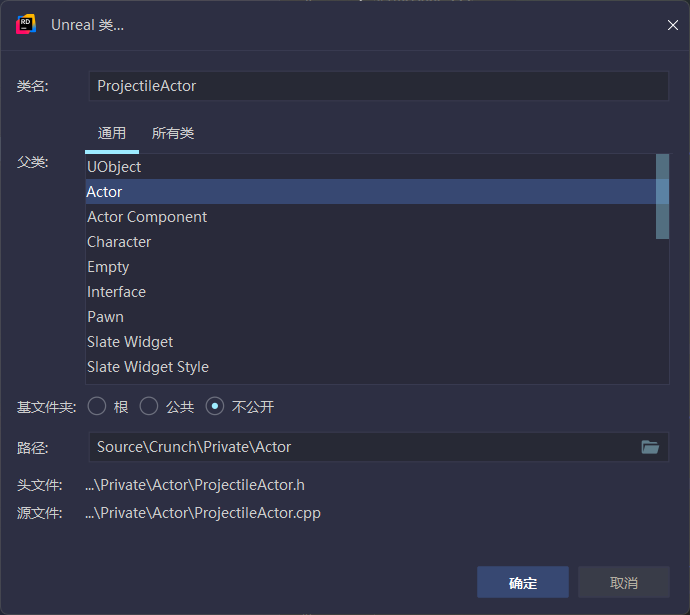

ProjectileActor
在这里插入图片描述

#pragma once#include "CoreMinimal.h"
#include "GenericTeamAgentInterface.h"
#include "GameplayEffectTypes.h"
#include "GameFramework/Actor.h"
#include "GAS/Core/CGameplayAbilityTypes.h"
#include "ProjectileActor.generated.h"/*** 投射物Actor类* 负责处理子弹/弹道的移动、命中、效果应用等逻辑*/
UCLASS()
class CRUNCH_API AProjectileActor : public AActor, public IGenericTeamAgentInterface
{GENERATED_BODY()public:// Sets default values for this actor's propertiesAProjectileActor();// 发射子弹，初始化速度、距离、目标、队伍ID和命中效果void ShootProjectile(float InSpeed,float InMaxDistance,const AActor* InTarget,FGenericTeamId InTeamId,FGameplayEffectSpecHandle InHitEffectHandle,FGenericDamageEffectDef InDamageEffectDef);// 网络属性同步virtual void GetLifetimeReplicatedProps(TArray<FLifetimeProperty>& OutLifetimeProps) const override;// 设置队伍IDvirtual void SetGenericTeamId(const FGenericTeamId& NewTeamID);// 获取队伍IDvirtual FGenericTeamId GetGenericTeamId() const { return TeamId; }// 处理与其他Actor的重叠（命中检测）virtual void NotifyActorBeginOverlap(AActor* OtherActor) override;
private:// 命中时触发的GameplayCue标签UPROPERTY(EditDefaultsOnly, Category = "Gameplay Cue")FGameplayTag HitGameplayCueTag;// 伤害效果定义UPROPERTY(EditDefaultsOnly, Category = "DamageEffect")FGenericDamageEffectDef DamageEffectDef;// 投射物所属队伍ID（同步属性）UPROPERTY(Replicated)FGenericTeamId TeamId;// 投射物移动方向（同步属性）UPROPERTY(Replicated)FVector MoveDir;// 投射物速度（同步属性）UPROPERTY(Replicated)float ProjectileSpeed;// 当前目标ActorUPROPERTY()const AActor* Target;// 命中时应用的效果句柄FGameplayEffectSpecHandle HitEffectSpecHandle;// 发射定时器句柄FTimerHandle ShootTimerHandle;
protected:// Called when the game starts or when spawnedvirtual void BeginPlay() override;public:// Called every framevirtual void Tick(float DeltaTime) override;
private:// 达到最大射程时的处理void TravelMaxDistanceReached();// 发送本地GameplayCue（用于特效、音效等）void SendLocalGameplayCue(AActor* CueTargetActor, const FHitResult& HitResult);
};

#include "ProjectileActor.h"#include "AbilitySystemBlueprintLibrary.h"
#include "AbilitySystemComponent.h"
#include "AbilitySystemGlobals.h"
#include "GameplayCueManager.h"
#include "Net/UnrealNetwork.h"// Sets default values
AProjectileActor::AProjectileActor()
{// Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.PrimaryActorTick.bCanEverTick = true;// 创建根组件USceneComponent* RootComp = CreateDefaultSubobject<USceneComponent>("Root Comp");SetRootComponent(RootComp);// 启用网络同步bReplicates = true;
}void AProjectileActor::ShootProjectile(float InSpeed, float InMaxDistance, const AActor* InTarget,FGenericTeamId InTeamId, FGameplayEffectSpecHandle InHitEffectHandle, FGenericDamageEffectDef InDamageEffectDef)
{// 设置目标以及速度Target = InTarget;ProjectileSpeed = InSpeed;// 方向FRotator OwnerViewRot = GetActorRotation();// 队伍设置SetGenericTeamId(InTeamId);// 获取拥有者视角（如有需要可用于弹道修正）if (GetOwner()){FVector OwnerViewLoc;GetOwner()->GetActorEyesViewPoint(OwnerViewLoc, OwnerViewRot);}// 设置移动方向MoveDir = OwnerViewRot.Vector();HitEffectSpecHandle = InHitEffectHandle;if (InDamageEffectDef.DamageEffect){// 伤害效果定义DamageEffectDef = InDamageEffectDef;}// 设置最大飞行时间，到达后自动销毁float TravelMaxTime = InMaxDistance / InSpeed;GetWorldTimerManager().SetTimer(ShootTimerHandle, this, &AProjectileActor::TravelMaxDistanceReached, TravelMaxTime);
}void AProjectileActor::GetLifetimeReplicatedProps(TArray<FLifetimeProperty>& OutLifetimeProps) const
{Super::GetLifetimeReplicatedProps(OutLifetimeProps);DOREPLIFETIME(AProjectileActor, MoveDir);DOREPLIFETIME(AProjectileActor, TeamId);DOREPLIFETIME(AProjectileActor, ProjectileSpeed);
}void AProjectileActor::SetGenericTeamId(const FGenericTeamId& NewTeamID)
{TeamId = NewTeamID;
}void AProjectileActor::NotifyActorBeginOverlap(AActor* OtherActor)
{// 忽略自身和拥有者if (!OtherActor || OtherActor == GetOwner())return;// 只对敌方目标生效if (GetTeamAttitudeTowards(*OtherActor) != ETeamAttitude::Hostile)return;// 获取目标的能力系统组件UAbilitySystemComponent* OtherASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(OtherActor);if (IsValid(OtherASC)){// 服务器应用命中效果if (HasAuthority() && HitEffectSpecHandle.IsValid()){for (const auto& TypePair : DamageEffectDef.DamageTypeDefinitions){// 创建效果Spec句柄，指定效果类、能力等级和上下文FGameplayEffectSpecHandle EffectSpecHandle = HitEffectSpecHandle;float TotalModifier = TypePair.Value.BaseDamage.GetValueAtLevel(HitEffectSpecHandle.Data->GetLevel());for (const auto& Modifier : TypePair.Value.AttributeDamageModifiers){UAbilitySystemBlueprintLibrary::AssignTagSetByCallerMagnitude(EffectSpecHandle, Modifier.Key, Modifier.Value);}UAbilitySystemBlueprintLibrary::AssignTagSetByCallerMagnitude(EffectSpecHandle, TypePair.Key, TotalModifier);// 在目标上应用游戏效果规范OtherASC->ApplyGameplayEffectSpecToSelf(*EffectSpecHandle.Data.Get());}// OtherASC->ApplyGameplayEffectSpecToSelf(*HitEffectSpecHandle.Data.Get());GetWorldTimerManager().ClearTimer(ShootTimerHandle);}// 构造命中结果FHitResult HitResult;HitResult.ImpactPoint = GetActorLocation();HitResult.ImpactNormal = GetActorForwardVector();// 发送本地GameplayCue（用于特效、音效等）SendLocalGameplayCue(OtherActor, HitResult);// TODO:不销毁的话可以做成子弹对象池// 销毁投射物Destroy();}
}void AProjectileActor::TravelMaxDistanceReached()
{Destroy();
}void AProjectileActor::SendLocalGameplayCue(AActor* CueTargetActor, const FHitResult& HitResult)
{FGameplayCueParameters CueParams;CueParams.Location = HitResult.ImpactPoint;CueParams.Normal = HitResult.ImpactNormal;UAbilitySystemGlobals::Get().GetGameplayCueManager()->HandleGameplayCue(CueTargetActor, HitGameplayCueTag, EGameplayCueEvent::Executed, CueParams);
}// Called when the game starts or when spawned
void AProjectileActor::BeginPlay()
{Super::BeginPlay();}// Called every frame
void AProjectileActor::Tick(float DeltaTime)
{Super::Tick(DeltaTime);// 服务器端：如果有目标则实时调整方向if (HasAuthority()){if (Target){MoveDir = (Target->GetActorLocation() - GetActorLocation()).GetSafeNormal();}}// 按当前方向和速度移动SetActorLocation(GetActorLocation() + MoveDir * ProjectileSpeed * DeltaTime);
}

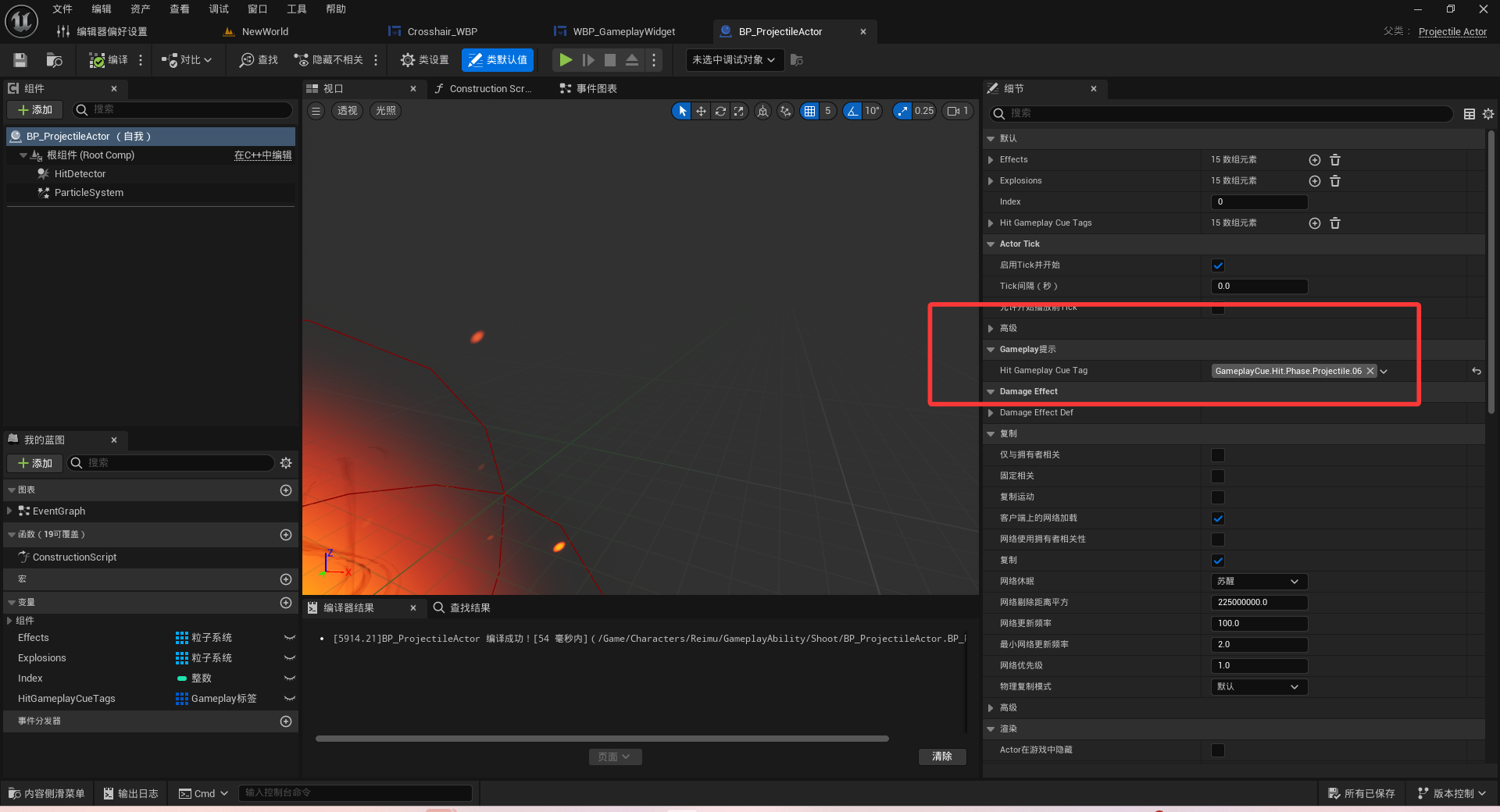

给射击技能添加代码，射出飞弹

	// 命中弹道时应用的效果UPROPERTY(EditDefaultsOnly, Category = "Shoot")FGenericDamageEffectDef ProjectileHitEffect;// 子弹速度UPROPERTY(EditDefaultsOnly, Category = "Shoot")float ShootProjectileSpeed = 2000.f;// 子弹射程UPROPERTY(EditDefaultsOnly, Category = "Shoot")float ShootProjectileRange = 3000.f;// 子弹Actor类UPROPERTY(EditDefaultsOnly, Category = "Shoot")TSubclassOf<class AProjectileActor> ProjectileClass;

void UGA_Shoot::ShootProjectile(FGameplayEventData Payload)
{UE_LOG(LogTemp, Warning, TEXT("发射子弹"))if (K2_HasAuthority()){// 获取拥有者ActorAActor* OwnerAvatarActor = GetAvatarActorFromActorInfo();FActorSpawnParameters SpawnParams;SpawnParams.Owner = OwnerAvatarActor;SpawnParams.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AlwaysSpawn;// 默认发射位置为角色位置FVector SocketLocation = GetAvatarActorFromActorInfo()->GetActorLocation();// 获取角色的骨骼USkeletalMeshComponent* MeshComp = GetOwningComponentFromActorInfo();if (MeshComp){// 如果事件标签包含Socket名，则用Socket位置TArray<FName> OutNames;UGameplayTagsManager::Get().SplitGameplayTagFName(Payload.EventTag, OutNames);if (OutNames.Num() != 0){FName SocketName = OutNames.Last();SocketLocation = MeshComp->GetSocketLocation(SocketName);}}// 生成子弹AProjectileActor* ProjectileActor = GetWorld()->SpawnActor<AProjectileActor>(ProjectileClass, SocketLocation, OwnerAvatarActor->GetActorRotation(), SpawnParams);if (ProjectileActor){const UAbilitySystemComponent* ASC = GetAbilitySystemComponentFromActorInfo();AActor* AvatarActor				   = GetAvatarActorFromActorInfo();// 创建效果上下文， 设置能力 、源对象 和 施加者FGameplayEffectContextHandle EffectContextHandle = MakeEffectContext(GetCurrentAbilitySpecHandle(), GetCurrentActorInfo());// 将施法者Actor添加到上下文源对象中（用于追踪效果来源）EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.SetAbility(this);EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.AddInstigator(AvatarActor, AvatarActor);ProjectileActor->ShootProjectile(ShootProjectileSpeed,ShootProjectileRange,nullptr,GetOwnerTeamId(),ASC->MakeOutgoingSpec(ProjectileHitEffect.DamageEffect, GetAbilityLevel(CurrentSpecHandle, CurrentActorInfo), EffectContextHandle),ProjectileHitEffect);// ProjectileActor->ShootProjectile(// 	ShootProjectileSpeed,// 	ShootProjectileRange,// 	nullptr,// 	GetOwnerTeamId(),// 	MakeOutgoingGameplayEffectSpec(ProjectileHitEffect.DamageEffect, GetAbilityLevel(CurrentSpecHandle, CurrentActorInfo)),// 	ProjectileHitEffect// );}}
}

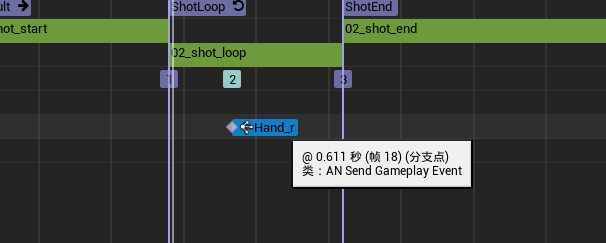

通过标签的最后一段，用于搜索骨骼位置
在这里插入图片描述

添加击中特效

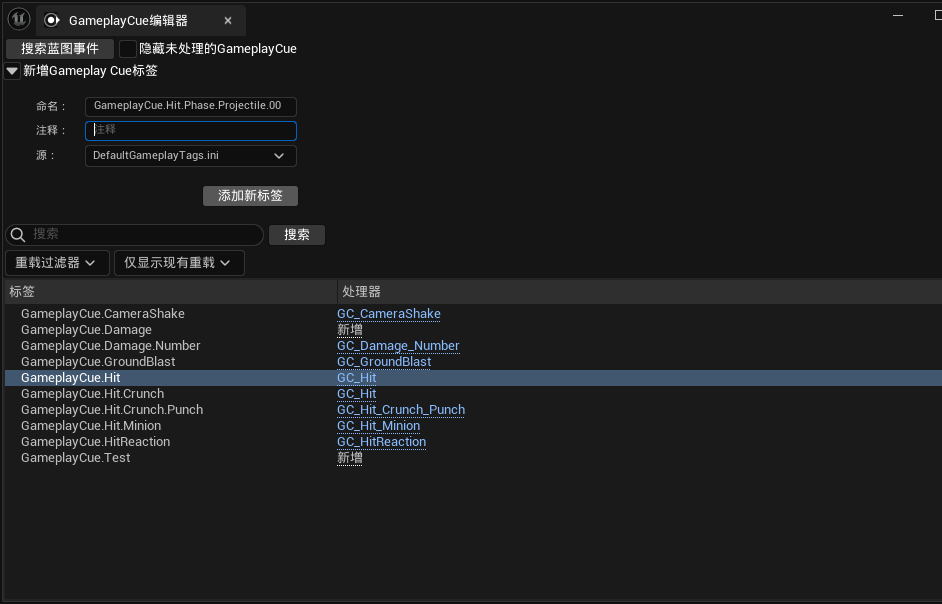

创建GC
在这里插入图片描述

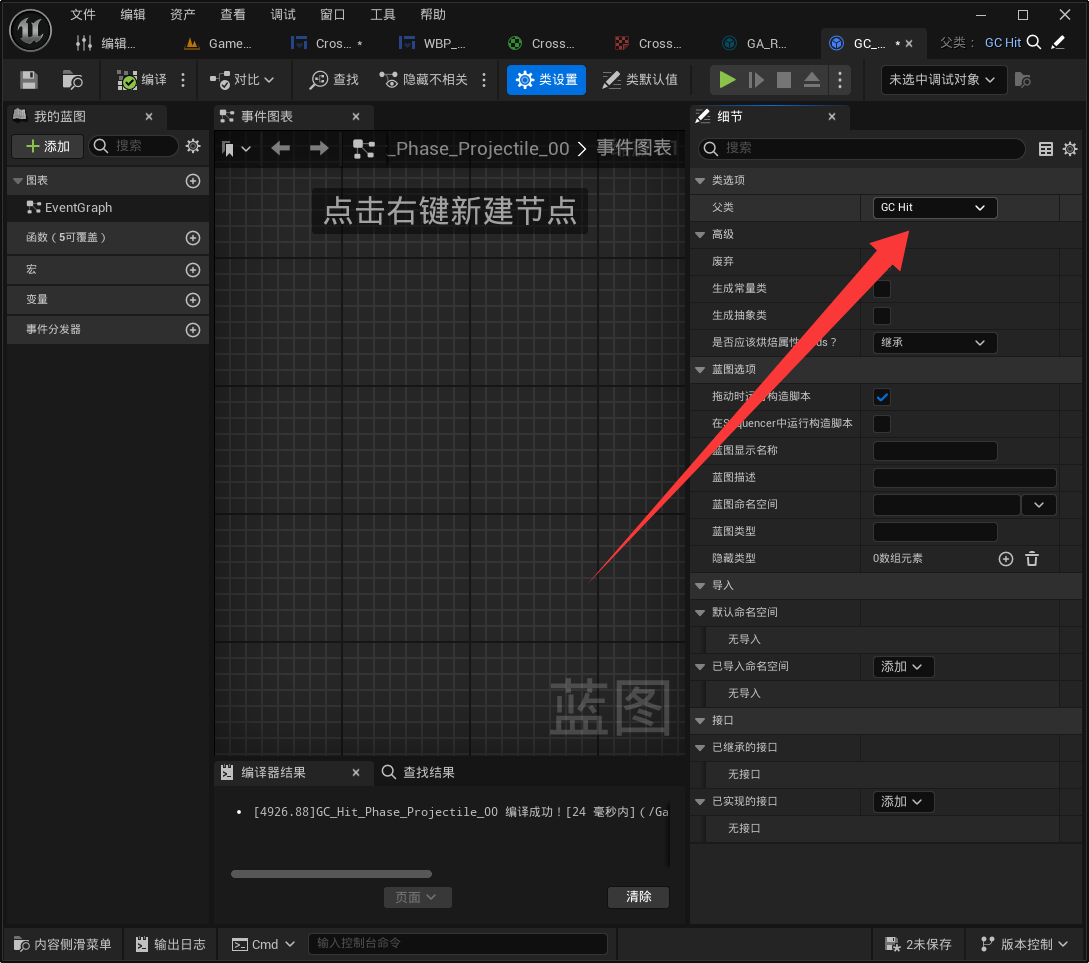

父类设置为HIt
在这里插入图片描述
在这里插入图片描述

添加准星UI

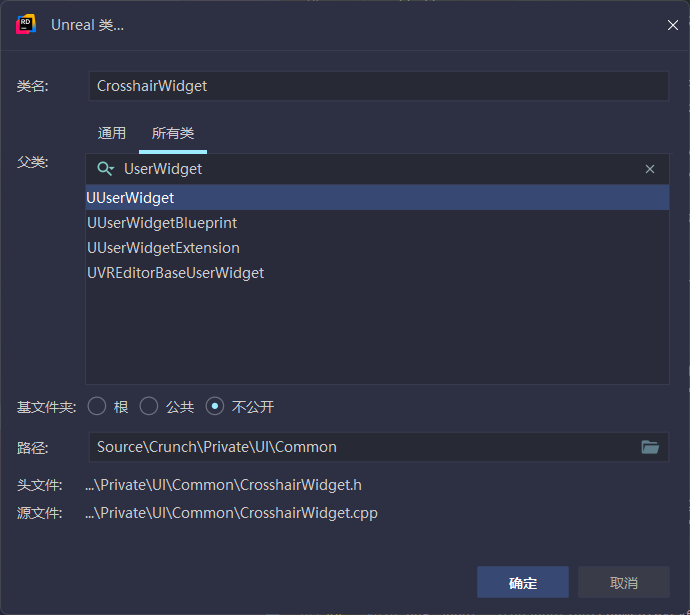

CrosshairWidget
在这里插入图片描述

#pragma once#include "CoreMinimal.h"
#include "Blueprint/UserWidget.h"
#include "GameplayTagContainer.h"
#include "CrosshairWidget.generated.h"class UImage;
class UCanvasPanelSlot;
/*** 准星控件* 用于显示和动态更新准星状态（如是否有目标、准星颜色等）*/
UCLASS()
class CRUNCH_API UCrosshairWidget : public UUserWidget
{GENERATED_BODY()
public:// 构建时回调，初始化控件virtual void NativeConstruct() override;// 每帧回调，处理准星位置和状态更新virtual void NativeTick(const FGeometry& MyGeometry, float InDeltaTime) override;private:// 有目标时准星颜色UPROPERTY(EditDefaultsOnly, Category = "View")FLinearColor HasTargetColor = FLinearColor::Red;// 无目标时准星颜色UPROPERTY(EditDefaultsOnly, Category = "View")FLinearColor NoTargetColor = FLinearColor::White;// 准星图片控件UPROPERTY(meta=(BindWidget))TObjectPtr<UImage> CrosshairImage;// 准星标签变化回调（用于响应目标锁定等）void CrosshairTagUpdated(const FGameplayTag Tag, int32 NewCount);// 准星在画布上的Slot（用于定位）UPROPERTY()TObjectPtr<UCanvasPanelSlot> CrosshairCanvasPanelSlot;// 缓存的玩家控制器UPROPERTY()TObjectPtr<APlayerController> CachedPlayerController;// 更新准星位置void UpdateCrosshairPosition();// 当前瞄准目标UPROPERTY()TObjectPtr<const AActor> AimTarget;// 目标更新回调（用于响应目标变化事件）void TargetUpdated(const struct FGameplayEventData* EventData);
};

#include "CrosshairWidget.h"#include "AbilitySystemBlueprintLibrary.h"
#include "AbilitySystemComponent.h"
#include "Components/CanvasPanelSlot.h"
#include "Components/Image.h"
#include "GAS/Core/TGameplayTags.h"
#include "Blueprint/WidgetLayoutLibrary.h"void UCrosshairWidget::NativeConstruct()
{Super::NativeConstruct();// 隐藏准星CrosshairImage->SetVisibility(ESlateVisibility::Hidden);UAbilitySystemComponent* OwnerAbilitySystemComponent = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(GetOwningPlayerPawn());if (OwnerAbilitySystemComponent){// 监听准星标签的变换OwnerAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Crosshair).AddUObject(this, &UCrosshairWidget::CrosshairTagUpdated);// 监听目标更新OwnerAbilitySystemComponent->GenericGameplayEventCallbacks.Add(TGameplayTags::Target_Updated).AddUObject(this, &UCrosshairWidget::TargetUpdated);}// 缓存玩家控制器CachedPlayerController = GetOwningPlayer();// 获取画布面板插槽用于定位CrosshairCanvasPanelSlot = Cast<UCanvasPanelSlot>(Slot);if (!CrosshairCanvasPanelSlot){UE_LOG(LogTemp, Error, TEXT("十字准星控件必须放在Canvas Panel中才能正确定位"));}
}void UCrosshairWidget::NativeTick(const FGeometry& MyGeometry, float InDeltaTime)
{Super::NativeTick(MyGeometry, InDeltaTime);// 当准星可见时更新位置if (CrosshairImage->GetVisibility() == ESlateVisibility::Visible){UpdateCrosshairPosition();}
}void UCrosshairWidget::CrosshairTagUpdated(const FGameplayTag Tag, int32 NewCount)
{// 根据标签计数显示/隐藏准星CrosshairImage->SetVisibility(NewCount > 0 ? ESlateVisibility::Visible : ESlateVisibility::Hidden);
}void UCrosshairWidget::UpdateCrosshairPosition()
{if (!CachedPlayerController || ! CrosshairCanvasPanelSlot) return;// 获取视口缩放比例float ViewportScale = UWidgetLayoutLibrary::GetViewportScale(this);// 获取玩家控制器的视口大小int32 SizeX, SizeY;CachedPlayerController->GetViewportSize(SizeX, SizeY);// 如果没有目标居中设置if (!AimTarget){FVector2D ViewportSize = FVector2D{static_cast<float>(SizeX), static_cast<float>(SizeY)};CrosshairCanvasPanelSlot->SetPosition(ViewportSize / 2.f / ViewportScale);return;}// 有目标时追踪目标位置FVector2D TargetScreenPosition;CachedPlayerController->ProjectWorldLocationToScreen(AimTarget->GetActorLocation(), TargetScreenPosition);if (TargetScreenPosition.X > 0 && TargetScreenPosition.X < SizeX && TargetScreenPosition.Y > 0 && TargetScreenPosition.Y < SizeY){CrosshairCanvasPanelSlot->SetPosition(TargetScreenPosition / ViewportScale);}}void UCrosshairWidget::TargetUpdated(const struct FGameplayEventData* EventData)
{// 更新当前目标AimTarget = EventData->Target;// 根据目标状态设置准星颜色CrosshairImage->SetColorAndOpacity(AimTarget ? HasTargetColor : NoTargetColor);
}

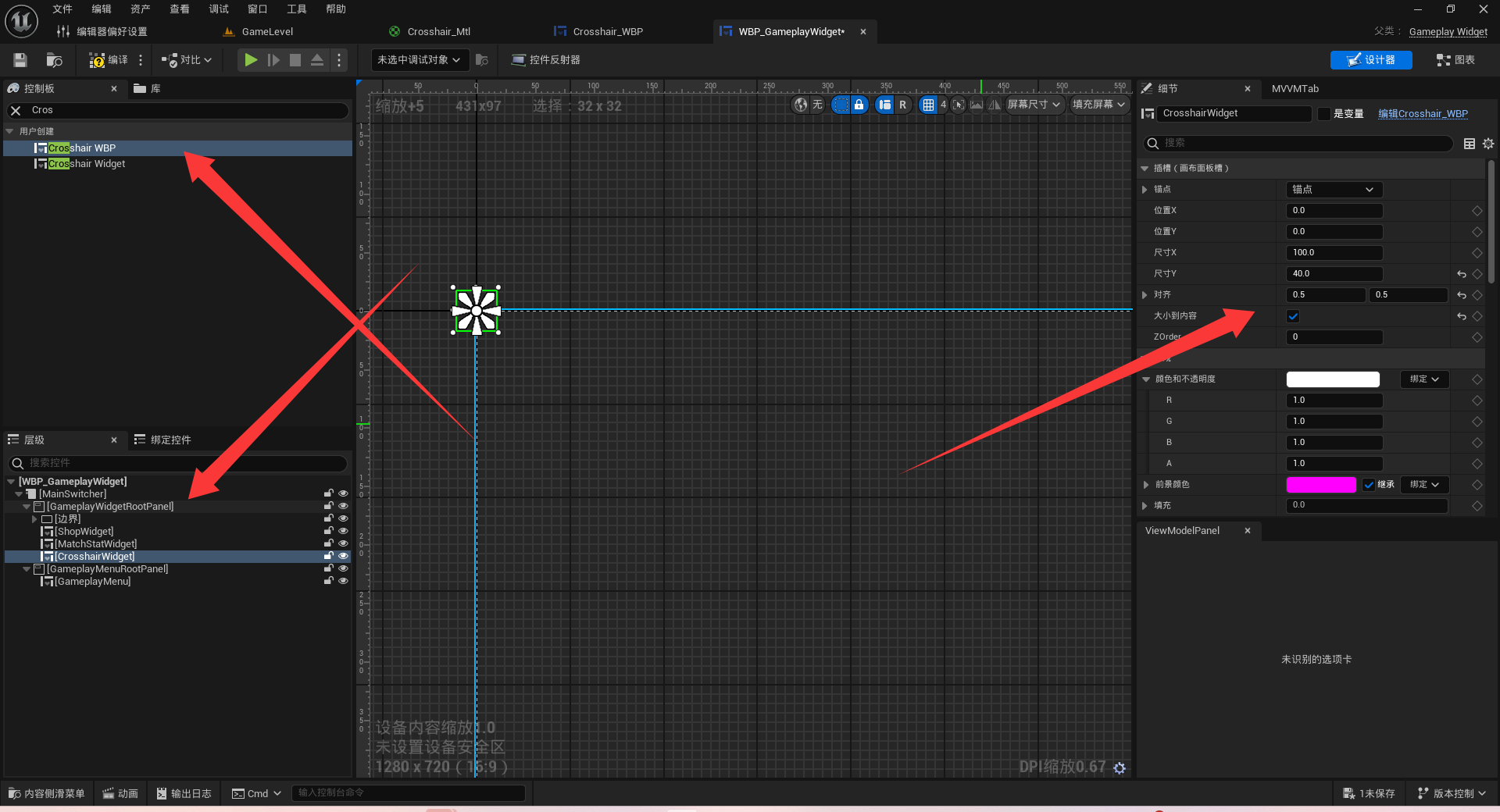

到GameplayWidget中添加准星UI

	// 准星UIUPROPERTY(meta=(BindWidget))TObjectPtr<UCrosshairWidget> CrosshairWidget;

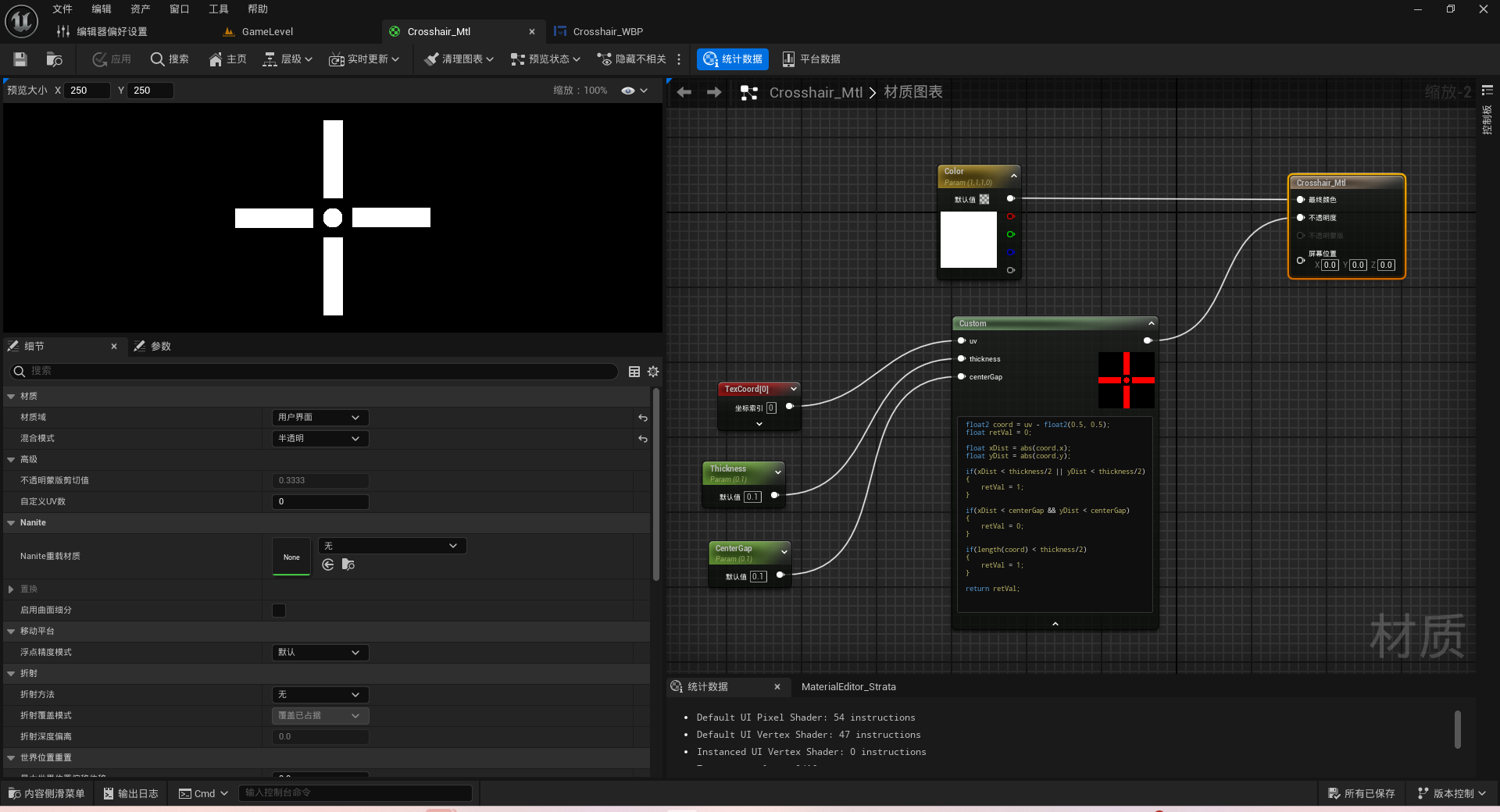

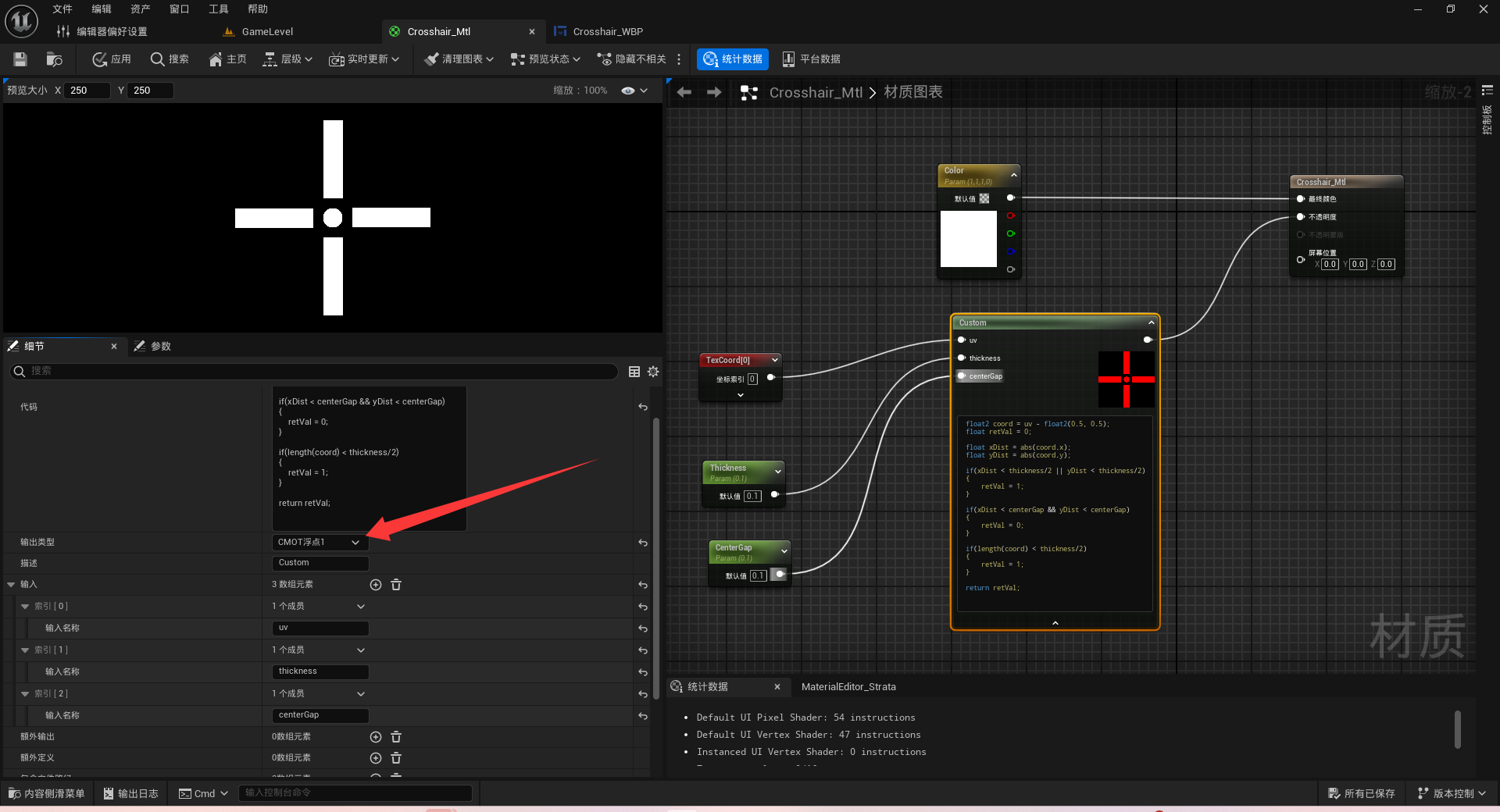

创建一个材质制作准星，设置为用户见面以及半透明
在这里插入图片描述
在这里插入图片描述

float2 coord = uv - float2(0.5, 0.5);
float retVal = 0;float xDist = abs(coord.x);
float yDist = abs(coord.y);if(xDist < thickness/2 || yDist < thickness/2)
{retVal = 1;
}if(xDist < centerGap && yDist < centerGap)
{retVal = 0;
}if(length(coord) < thickness/2)
{retVal = 1;
}return retVal;

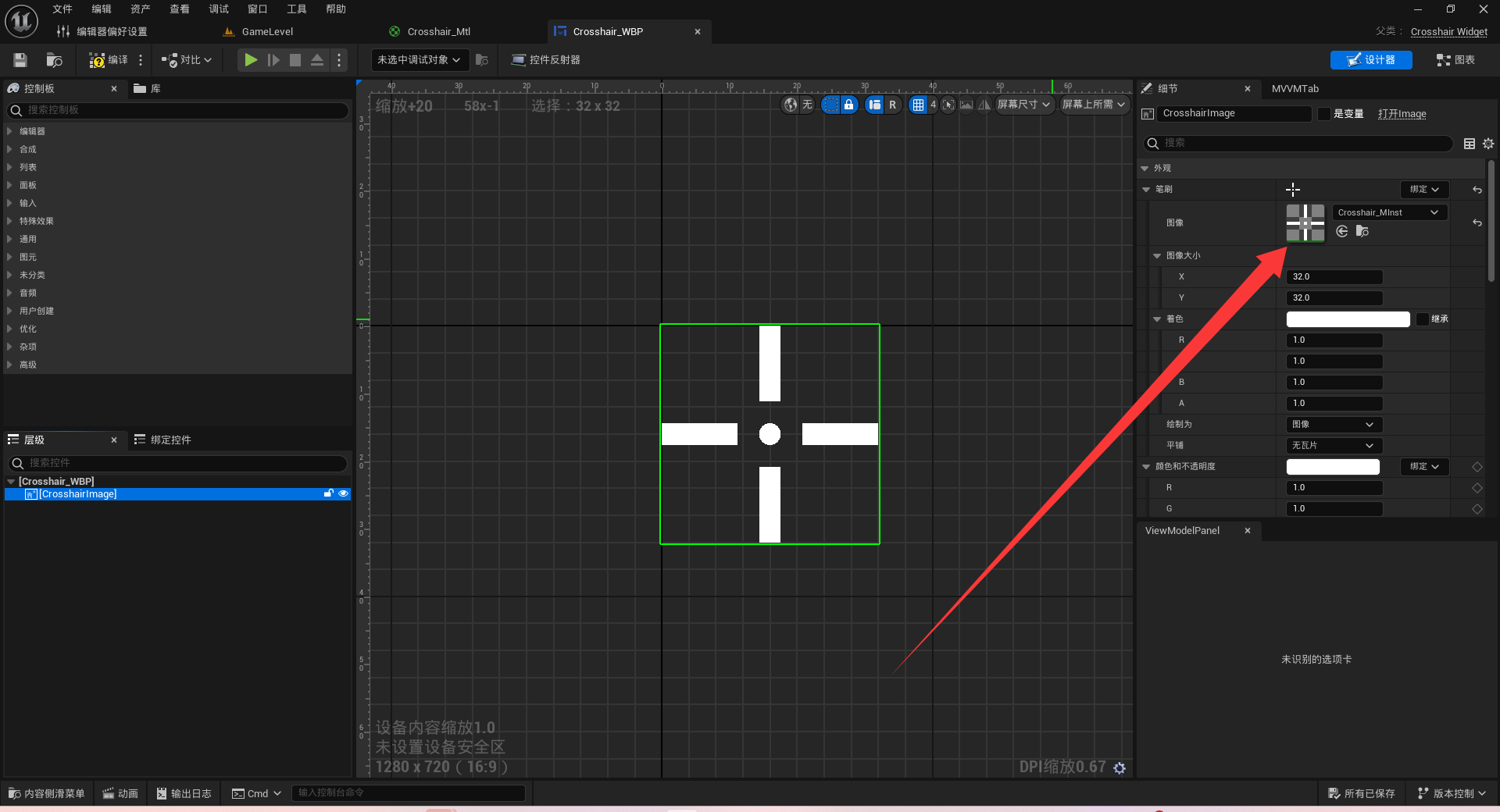

创建一个准星蓝图，把材质放进去
在这里插入图片描述
在这里插入图片描述

获取瞄准目标

到玩家角色ACPlayerCharacter中重载获取视觉的位置以及旋转

	// 获取角色视觉的位置和旋转virtual void GetActorEyesViewPoint(FVector& OutLocation, FRotator& OutRotation) const  override;

void ACPlayerCharacter::GetActorEyesViewPoint(FVector& OutLocation, FRotator& OutRotation) const
{// 获取视角摄像机的位置和旋转OutLocation = ViewCamera->GetComponentLocation();OutRotation = GetBaseAimRotation();
}

在能力基类中添加获取瞄准目标的函数

    // 获取瞄准目标（按距离和阵营过滤）AActor* GetAimTarget(float AimDistance, ETeamAttitude::Type TeamAttitude) const;// 判断目标是否为指定阵营bool IsActorTeamAttitudeIs(const AActor* OtherActor, ETeamAttitude::Type TeamAttitude) const;// 发送本地Gameplay事件void SendLocalGameplayEvent(const FGameplayTag& EventTag, const FGameplayEventData& EventData);

AActor* UCGameplayAbility::GetAimTarget(float AimDistance, ETeamAttitude::Type TeamAttitude) const
{// 获取当前执行能力的角色AActor* OwnerAvatarActor = GetAvatarActorFromActorInfo();if (OwnerAvatarActor){// 获取角色的视觉位置和视角方向FVector Location;FRotator Rotation;OwnerAvatarActor->GetActorEyesViewPoint(Location, Rotation);// 计算瞄准射线的终点FVector AimEnd = Location + Rotation.Vector() * AimDistance;// 设置碰撞查询参数FCollisionQueryParams CollisionQueryParams;CollisionQueryParams.AddIgnoredActor(OwnerAvatarActor); // 忽略自身// 设置碰撞对象查询参数（只查询Pawn类型对象）FCollisionObjectQueryParams CollisionObjectQueryParams;CollisionObjectQueryParams.AddObjectTypesToQuery(ECC_Pawn); // 仅检测Pawn对象// 调试模式：绘制瞄准线if (ShouldDrawDebug()){DrawDebugLine(GetWorld(), Location, AimEnd, FColor::Red, false, 2.f, 0U, 3.f);}// 射线检测TArray<FHitResult> HitResults;if (GetWorld()->LineTraceMultiByObjectType(HitResults,Location,AimEnd,CollisionObjectQueryParams,CollisionQueryParams)){// 遍历命中结果for (FHitResult& HitResult : HitResults){// 寻找指定阵容的Actorif (IsActorTeamAttitudeIs(HitResult.GetActor(), TeamAttitude)){// 返回命中的Actorreturn HitResult.GetActor();}}}}return nullptr;
}bool UCGameplayAbility::IsActorTeamAttitudeIs(const AActor* OtherActor, ETeamAttitude::Type TeamAttitude) const
{if (!OtherActor)return false;IGenericTeamAgentInterface* OwnerTeamAgentInterface = Cast<IGenericTeamAgentInterface>(GetAvatarActorFromActorInfo());if (OwnerTeamAgentInterface){return OwnerTeamAgentInterface->GetTeamAttitudeTowards(*OtherActor) == TeamAttitude;}return false;
}void UCGameplayAbility::SendLocalGameplayEvent(const FGameplayTag& EventTag, const FGameplayEventData& EventData)
{UAbilitySystemComponent* OwnerASC = GetAbilitySystemComponentFromActorInfo();if (OwnerASC){OwnerASC->HandleGameplayEvent(EventTag, &EventData);}
}

CAbilitySystemStatics添加判断是否死亡

	// 判断Actor是否死亡static bool IsActorDead(const AActor* ActorToCheck);// 判断Actor是否拥有指定标签static bool ActorHasTag(const AActor* ActorToCheck, const FGameplayTag& Tag);

bool UCAbilitySystemStatics::IsActorDead(const AActor* ActorToCheck)
{return ActorHasTag(ActorToCheck, TGameplayTags::Stats_Dead);
}bool UCAbilitySystemStatics::IsHero(const AActor* ActorToCheck)
{return ActorHasTag(ActorToCheck, TGameplayTags::Role_Hero);
}
bool UCAbilitySystemStatics::ActorHasTag(const AActor* ActorToCheck, const FGameplayTag& Tag)
{const IAbilitySystemInterface* ActorISA = Cast<IAbilitySystemInterface>(ActorToCheck);if (ActorISA){UAbilitySystemComponent* ActorASC = ActorISA->GetAbilitySystemComponent();if (ActorASC){return ActorASC->HasMatchingGameplayTag(Tag);}}return false;
}

到发射技能中添加索敌

	// 获取有效瞄准目标AActor* GetAimTargetIfValid() const;// 当前瞄准目标UPROPERTY()TObjectPtr<AActor> AimTarget;// 目标的能力系统组件UPROPERTY()UAbilitySystemComponent* AimTargetAbilitySystemComponent;// 检查瞄准目标的定时器句柄FTimerHandle AimTargetCheckTimerHandle;// 查找瞄准目标void FindAimTarget();// 检查瞄准目标的时间间隔UPROPERTY(EditDefaultsOnly, Category = "Target")float AimTargetCheckTimeInterval = 0.1f;// 启动瞄准目标检测定时器void StartAimTargetCheckTimer();// 停止瞄准目标检测定时器void StopAimTargetCheckTimer();// 是否有有效目标bool HasValidTarget() const;// 目标是否在射程内bool IsTargetInRange() const;// 目标死亡标签更新回调void TargetDeadTagUpdated(const FGameplayTag Tag, int32 NewCount);

void UGA_Shoot::EndAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled)
{// 移除目标死亡标签监听if (AimTargetAbilitySystemComponent){AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).RemoveAll(this);AimTargetAbilitySystemComponent = nullptr;}// 通知目标已更新SendLocalGameplayEvent(TGameplayTags::Target_Updated, FGameplayEventData());// 停止射击StopShooting(FGameplayEventData());Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}void UGA_Shoot::StartShooting(FGameplayEventData Payload)
{UE_LOG(LogTemp, Warning, TEXT("开始射击技能"));// 仅在服务器有权限时播放动画if (HasAuthority(&CurrentActivationInfo)){// 服务器播放射击动画UAbilityTask_PlayMontageAndWait* PlayShootMontage = UAbilityTask_PlayMontageAndWait::CreatePlayMontageAndWaitProxy(this, NAME_None, ShootMontage);PlayShootMontage->ReadyForActivation();}else{// 客户端本地播放射击动画PlayMontageLocally(ShootMontage);}// 查找瞄准目标并启动检测定时器FindAimTarget();StartAimTargetCheckTimer();
}void UGA_Shoot::ShootProjectile(FGameplayEventData Payload)
{// 仅在服务器有权限时发射子弹if (K2_HasAuthority()){// 获取拥有者ActorAActor* OwnerAvatarActor = GetAvatarActorFromActorInfo();FActorSpawnParameters SpawnParams;SpawnParams.Owner = OwnerAvatarActor;SpawnParams.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AlwaysSpawn;// 默认发射位置为角色位置FVector SocketLocation = GetAvatarActorFromActorInfo()->GetActorLocation();UE_LOG(LogTemp, Warning, TEXT("发射位置1：%s"), *SocketLocation.ToString())// 获取角色的骨骼USkeletalMeshComponent* MeshComp = GetOwningComponentFromActorInfo();if (MeshComp){// 如果事件标签包含Socket名，则用Socket位置TArray<FName> OutNames;UGameplayTagsManager::Get().SplitGameplayTagFName(Payload.EventTag, OutNames);if (OutNames.Num() != 0){FName SocketName = OutNames.Last();//UE_LOG(LogTemp, Warning, TEXT("SocketName：%s"), *SocketName.ToString())SocketLocation = MeshComp->GetSocketLocation(SocketName);UE_LOG(LogTemp, Warning, TEXT("发射位置2：%s"), *SocketLocation.ToString())}}// 生成子弹AProjectileActor* ProjectileActor = GetWorld()->SpawnActor<AProjectileActor>(ProjectileClass, SocketLocation, OwnerAvatarActor->GetActorRotation(), SpawnParams);if (ProjectileActor){const UAbilitySystemComponent* ASC = GetAbilitySystemComponentFromActorInfo();AActor* AvatarActor				   = GetAvatarActorFromActorInfo();// 创建效果上下文， 设置能力 、源对象 和 施加者FGameplayEffectContextHandle EffectContextHandle = MakeEffectContext(GetCurrentAbilitySpecHandle(), GetCurrentActorInfo());// 将施法者Actor添加到上下文源对象中（用于追踪效果来源）EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.SetAbility(this);EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.AddInstigator(AvatarActor, AvatarActor);ProjectileActor->ShootProjectile(ShootProjectileSpeed,ShootProjectileRange,GetAimTargetIfValid(),GetOwnerTeamId(),ASC->MakeOutgoingSpec(ProjectileHitEffect.DamageEffect, GetAbilityLevel(CurrentSpecHandle, CurrentActorInfo), EffectContextHandle),ProjectileHitEffect);}}
}AActor* UGA_Shoot::GetAimTargetIfValid() const
{if (HasValidTarget())return AimTarget;return nullptr;
}void UGA_Shoot::FindAimTarget()
{// 已经有有效目标直接退出if (HasValidTarget())return;// 没有有效目标，曾经获取过目标ASC移除死亡监听if (AimTargetAbilitySystemComponent){AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).RemoveAll(this);AimTargetAbilitySystemComponent = nullptr;}// 查找射程内的敌方目标AimTarget = GetAimTarget(ShootProjectileRange, ETeamAttitude::Hostile);if (AimTarget){AimTargetAbilitySystemComponent = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(AimTarget);if (AimTargetAbilitySystemComponent){// 监听目标死亡标签变化AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).AddUObject(this, &UGA_Shoot::TargetDeadTagUpdated);}}// 通知目标已更新FGameplayEventData EventData;EventData.Target = AimTarget;SendLocalGameplayEvent(TGameplayTags::Target_Updated, EventData);
}bool UGA_Shoot::HasValidTarget() const
{// 目标不存在if (!AimTarget)return false;// 角色死亡if (UCAbilitySystemStatics::IsActorDead(AimTarget))return false;// 目标不在范围内if (!IsTargetInRange())return false;return true;
}void UGA_Shoot::StartAimTargetCheckTimer()
{UWorld* World = GetWorld();if (World){World->GetTimerManager().SetTimer(AimTargetCheckTimerHandle, this, &UGA_Shoot::FindAimTarget, AimTargetCheckTimeInterval, true);}
}void UGA_Shoot::StopAimTargetCheckTimer()
{UWorld* World = GetWorld();if (World){World->GetTimerManager().ClearTimer(AimTargetCheckTimerHandle);}
}bool UGA_Shoot::IsTargetInRange() const
{if (!AimTarget) return false;// 获取目标距离float Distance = FVector::Distance(GetAvatarActorFromActorInfo()->GetActorLocation(), AimTarget->GetActorLocation());return Distance <= ShootProjectileRange;
}void UGA_Shoot::TargetDeadTagUpdated(const FGameplayTag Tag, int32 NewCount)
{if (NewCount > 0){FindAimTarget();}
}

#pragma once#include "CoreMinimal.h"
#include "GAS/Core/CGameplayAbility.h"
#include "GA_Shoot.generated.h"class AProjectileActor;
/*** */
UCLASS()
class CRUNCH_API UGA_Shoot : public UCGameplayAbility
{GENERATED_BODY()public:// 构造函数UGA_Shoot();// 激活能力（开始射击）virtual void ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData) override;// 输入释放（停止射击）virtual void InputReleased(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo) override;// 结束能力（能力生命周期结束）virtual void EndAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled) override;private:// 命中弹道时应用的效果UPROPERTY(EditDefaultsOnly, Category = "Shoot")FGenericDamageEffectDef ProjectileHitEffect;// 子弹速度UPROPERTY(EditDefaultsOnly, Category = "Shoot")float ShootProjectileSpeed = 2000.f;// 子弹射程UPROPERTY(EditDefaultsOnly, Category = "Shoot")float ShootProjectileRange = 3000.f;// 子弹Actor类UPROPERTY(EditDefaultsOnly, Category = "Shoot")TSubclassOf<AProjectileActor> ProjectileClass;// 射击动画UPROPERTY(EditDefaultsOnly, Category = "Anim")TObjectPtr<UAnimMontage> ShootMontage;// 开始射击事件处理UFUNCTION()void StartShooting(FGameplayEventData Payload);// 停止射击事件处理UFUNCTION()void StopShooting(FGameplayEventData Payload);// 发射子弹UFUNCTION()void ShootProjectile(FGameplayEventData Payload);// 获取有效瞄准目标AActor* GetAimTargetIfValid() const;// 当前瞄准目标UPROPERTY()TObjectPtr<AActor> AimTarget;// 目标的能力系统组件UPROPERTY()UAbilitySystemComponent* AimTargetAbilitySystemComponent;// 检查瞄准目标的定时器句柄FTimerHandle AimTargetCheckTimerHandle;// 查找瞄准目标void FindAimTarget();// 检查瞄准目标的时间间隔UPROPERTY(EditDefaultsOnly, Category = "Target")float AimTargetCheckTimeInterval = 0.1f;// 启动瞄准目标检测定时器void StartAimTargetCheckTimer();// 停止瞄准目标检测定时器void StopAimTargetCheckTimer();// 是否有有效目标bool HasValidTarget() const;// 目标是否在射程内bool IsTargetInRange() const;// 目标死亡标签更新回调void TargetDeadTagUpdated(const FGameplayTag Tag, int32 NewCount);
};

#include "GA_Shoot.h"#include "AbilitySystemBlueprintLibrary.h"
#include "AbilitySystemComponent.h"
#include "Abilities/Tasks/AbilityTask_PlayMontageAndWait.h"
#include "Abilities/Tasks/AbilityTask_WaitGameplayEvent.h"
#include "Actor/ProjectileActor.h"
#include "Abilities/Tasks/AbilityTask_NetworkSyncPoint.h"
#include "GAS/Core/CAbilitySystemStatics.h"
#include "GameplayTagsManager.h"UGA_Shoot::UGA_Shoot(): AimTargetAbilitySystemComponent(nullptr)
{// 技能激活时添加瞄准以及准星ActivationOwnedTags.AddTag(TGameplayTags::Stats_Aim);ActivationOwnedTags.AddTag(TGameplayTags::Stats_Crosshair);
}void UGA_Shoot::ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData)
{// 提交消耗以及cdif (!K2_CommitAbility()){K2_EndAbility();return;}UE_LOG(LogTemp, Warning, TEXT("激活射击技能"));// 仅在服务器或有预测权限时绑定事件if (HasAuthorityOrPredictionKey(ActorInfo, &ActivationInfo)){// 绑定开始射击事件UAbilityTask_WaitGameplayEvent* WaitStartShootingEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_BasicAttack_Pressed);WaitStartShootingEvent->EventReceived.AddDynamic(this, &UGA_Shoot::StartShooting);WaitStartShootingEvent->ReadyForActivation();// 绑定停止射击事件UAbilityTask_WaitGameplayEvent* WaitStopShootingEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_BasicAttack_Released);WaitStopShootingEvent->EventReceived.AddDynamic(this, &UGA_Shoot::StopShooting);WaitStopShootingEvent->ReadyForActivation();// 绑定发射子弹事件UAbilityTask_WaitGameplayEvent* WaitShootProjectileEvent = UAbilityTask_WaitGameplayEvent::WaitGameplayEvent(this, TGameplayTags::Ability_Shoot, nullptr, false, false);WaitShootProjectileEvent->EventReceived.AddDynamic(this, &UGA_Shoot::ShootProjectile);WaitShootProjectileEvent->ReadyForActivation();}
}void UGA_Shoot::InputReleased(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo)
{UE_LOG(LogTemp, Warning, TEXT("停止射击技能"));K2_EndAbility();
}void UGA_Shoot::EndAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo,const FGameplayAbilityActivationInfo ActivationInfo, bool bReplicateEndAbility, bool bWasCancelled)
{// 移除目标死亡标签监听if (AimTargetAbilitySystemComponent){AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).RemoveAll(this);AimTargetAbilitySystemComponent = nullptr;}// 通知目标已更新SendLocalGameplayEvent(TGameplayTags::Target_Updated, FGameplayEventData());// 停止射击StopShooting(FGameplayEventData());Super::EndAbility(Handle, ActorInfo, ActivationInfo, bReplicateEndAbility, bWasCancelled);
}void UGA_Shoot::StartShooting(FGameplayEventData Payload)
{UE_LOG(LogTemp, Warning, TEXT("开始射击技能"));// 仅在服务器有权限时播放动画if (HasAuthority(&CurrentActivationInfo)){// 服务器播放射击动画UAbilityTask_PlayMontageAndWait* PlayShootMontage = UAbilityTask_PlayMontageAndWait::CreatePlayMontageAndWaitProxy(this, NAME_None, ShootMontage);PlayShootMontage->ReadyForActivation();}else{// 客户端本地播放射击动画PlayMontageLocally(ShootMontage);}// 查找瞄准目标并启动检测定时器FindAimTarget();StartAimTargetCheckTimer();
}void UGA_Shoot::StopShooting(FGameplayEventData Payload)
{if (ShootMontage){UE_LOG(LogTemp, Warning, TEXT("停止射击技能"));// 停止蒙太奇动画StopMontageAfterCurrentSection(ShootMontage);}	StopAimTargetCheckTimer();
}void UGA_Shoot::ShootProjectile(FGameplayEventData Payload)
{UE_LOG(LogTemp, Warning, TEXT("发射子弹"))// 仅在服务器有权限时发射子弹if (K2_HasAuthority()){// 获取拥有者ActorAActor* OwnerAvatarActor = GetAvatarActorFromActorInfo();FActorSpawnParameters SpawnParams;SpawnParams.Owner = OwnerAvatarActor;SpawnParams.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AlwaysSpawn;// 默认发射位置为角色位置FVector SocketLocation = GetAvatarActorFromActorInfo()->GetActorLocation();UE_LOG(LogTemp, Warning, TEXT("发射位置1：%s"), *SocketLocation.ToString())// 获取角色的骨骼USkeletalMeshComponent* MeshComp = GetOwningComponentFromActorInfo();if (MeshComp){// 如果事件标签包含Socket名，则用Socket位置TArray<FName> OutNames;UGameplayTagsManager::Get().SplitGameplayTagFName(Payload.EventTag, OutNames);if (OutNames.Num() != 0){FName SocketName = OutNames.Last();//UE_LOG(LogTemp, Warning, TEXT("SocketName：%s"), *SocketName.ToString())SocketLocation = MeshComp->GetSocketLocation(SocketName);UE_LOG(LogTemp, Warning, TEXT("发射位置2：%s"), *SocketLocation.ToString())}}// 生成子弹AProjectileActor* ProjectileActor = GetWorld()->SpawnActor<AProjectileActor>(ProjectileClass, SocketLocation, OwnerAvatarActor->GetActorRotation(), SpawnParams);if (ProjectileActor){const UAbilitySystemComponent* ASC = GetAbilitySystemComponentFromActorInfo();AActor* AvatarActor				   = GetAvatarActorFromActorInfo();// 创建效果上下文， 设置能力 、源对象 和 施加者FGameplayEffectContextHandle EffectContextHandle = MakeEffectContext(GetCurrentAbilitySpecHandle(), GetCurrentActorInfo());// 将施法者Actor添加到上下文源对象中（用于追踪效果来源）EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.SetAbility(this);EffectContextHandle.AddSourceObject(AvatarActor);EffectContextHandle.AddInstigator(AvatarActor, AvatarActor);ProjectileActor->ShootProjectile(ShootProjectileSpeed,ShootProjectileRange,GetAimTargetIfValid(),GetOwnerTeamId(),ASC->MakeOutgoingSpec(ProjectileHitEffect.DamageEffect, GetAbilityLevel(CurrentSpecHandle, CurrentActorInfo), EffectContextHandle),ProjectileHitEffect);}}
}AActor* UGA_Shoot::GetAimTargetIfValid() const
{if (HasValidTarget())return AimTarget;return nullptr;
}void UGA_Shoot::FindAimTarget()
{// 已经有有效目标直接退出if (HasValidTarget())return;// 没有有效目标，曾经获取过目标ASC移除死亡监听if (AimTargetAbilitySystemComponent){AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).RemoveAll(this);AimTargetAbilitySystemComponent = nullptr;}// 查找射程内的敌方目标AimTarget = GetAimTarget(ShootProjectileRange, ETeamAttitude::Hostile);if (AimTarget){AimTargetAbilitySystemComponent = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(AimTarget);if (AimTargetAbilitySystemComponent){// 监听目标死亡标签变化AimTargetAbilitySystemComponent->RegisterGameplayTagEvent(TGameplayTags::Stats_Dead).AddUObject(this, &UGA_Shoot::TargetDeadTagUpdated);}}// 通知目标已更新FGameplayEventData EventData;EventData.Target = AimTarget;SendLocalGameplayEvent(TGameplayTags::Target_Updated, EventData);
}bool UGA_Shoot::HasValidTarget() const
{// 目标不存在if (!AimTarget)return false;// 角色死亡if (UCAbilitySystemStatics::IsActorDead(AimTarget))return false;// 目标不在范围内if (!IsTargetInRange())return false;return true;
}void UGA_Shoot::StartAimTargetCheckTimer()
{UWorld* World = GetWorld();if (World){World->GetTimerManager().SetTimer(AimTargetCheckTimerHandle, this, &UGA_Shoot::FindAimTarget, AimTargetCheckTimeInterval, true);}
}void UGA_Shoot::StopAimTargetCheckTimer()
{UWorld* World = GetWorld();if (World){World->GetTimerManager().ClearTimer(AimTargetCheckTimerHandle);}
}bool UGA_Shoot::IsTargetInRange() const
{if (!AimTarget) return false;// 获取目标距离float Distance = FVector::Distance(GetAvatarActorFromActorInfo()->GetActorLocation(), AimTarget->GetActorLocation());return Distance <= ShootProjectileRange;
}void UGA_Shoot::TargetDeadTagUpdated(const FGameplayTag Tag, int32 NewCount)
{if (NewCount > 0){FindAimTarget();}
}
http://www.lryc.cn/news/616323.html

相关文章：

  • 【走进Docker的世界】Docker环境搭建
  • Java集合框架、Collection体系的单列集合
  • OpenStack热迁移一直处于迁移中怎么办
  • Dify 从入门到精通（第 26/100 篇）：Dify 的知识图谱集成
  • 基于django的宠物用品购物商城的设计与实现
  • Java基础编程核心案例：从逻辑到应用
  • Python 的列表 list 和元组 tuple 有啥本质区别？啥时候用谁更合适？
  • 嵌入式第二十四课！！linux应用软件编程与文件操作！！！
  • Java开源代码源码研究：我的成长之路与实战心得分享
  • actuary notes[2]
  • 产品经理入门 - 产品解决方案（需求分析、 功能优先级划分、功能价值、用户体验）
  • 智慧社区--4
  • Spring之【详解AOP】
  • Linux入门指南：26个基础命令全解析
  • 数字图像处理3
  • Docker-04：CGroups资源控制组
  • 【代码随想录day 15】 力扣 404. 左叶子之和
  • 部署一个免费开源的博客系统
  • OpenAI正式发布GPT-5：迈向AGI的关键一步
  • 【走进Docker的世界】深入理解Docker网络：从模式选择到实战配置
  • TF-IDF提取关键词（附实战案例）
  • 【RocketMQ 生产者和消费者】- ConsumeMessageConcurrentlyService 并发消费消息
  • 【嵌入式硬件实例】-555定时器PWM调光电路
  • 智慧社区（十一）——Spring Boot 实现 Excel 导出、上传与数据导入全流程详解
  • 计算机网络：路由聚合的注意事项有哪些？
  • RabbitMQ面试精讲 Day 18：内存与磁盘优化配置
  • ROS2 QT 多线程功能包设计
  • 使用 Docker-Compose 部署 Redis 三主三从集群（含 Exporter 监控）
  • openresty-lua-redis案例
  • 高标准农田建设—用ZDM画钢筋图并标注
