R4周打卡——Pytorch实现 LSTM火灾预测

• 🍨 本文为🔗365天深度学习训练营 中的学习记录博客
• 🍖 原作者：K同学啊

一、准备工作

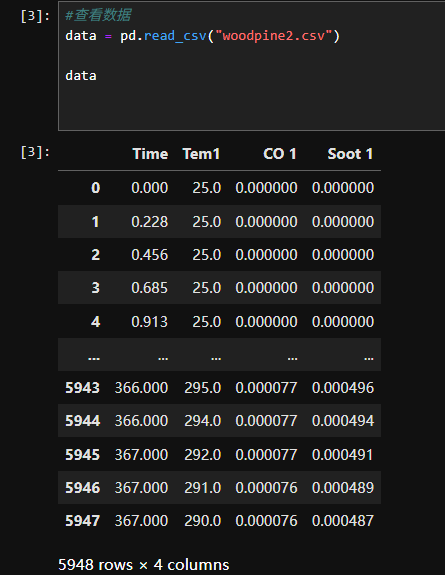

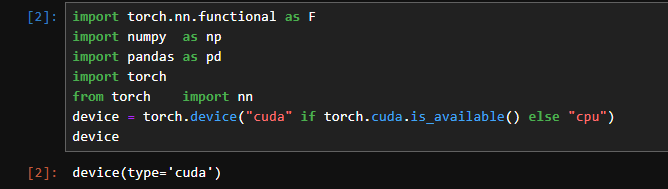

1.1导入数据

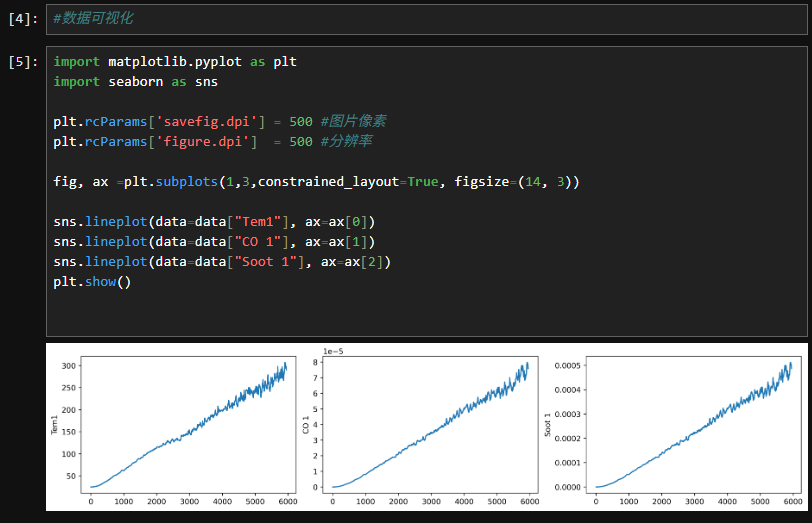

1.2数据集可视化

二、构建数据集

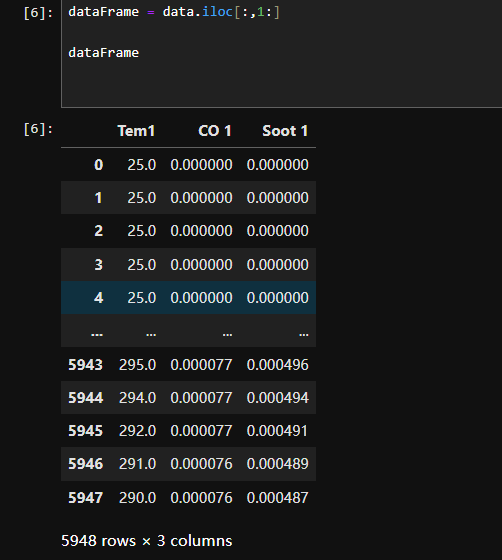

2.1数据集预处理

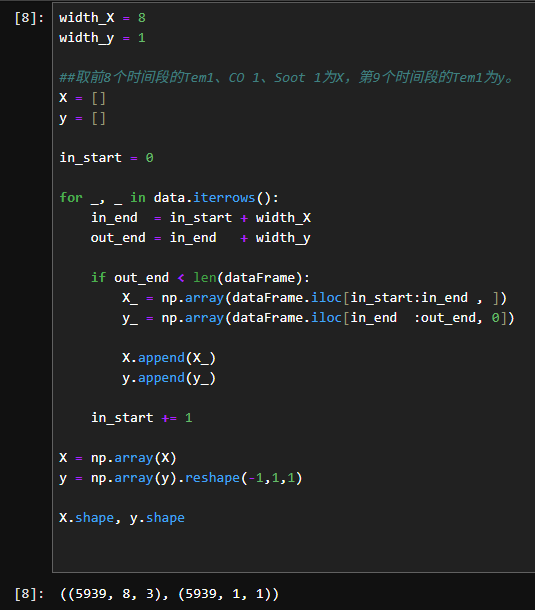

2.2设置X、Y

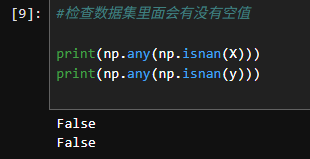

2.3检查数据集中有没有空值

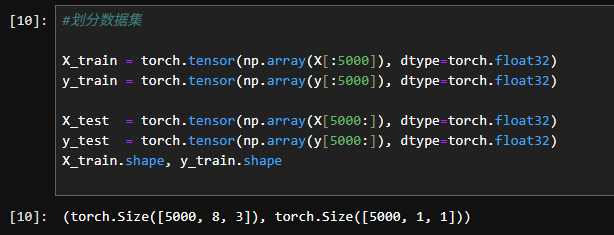

2.4划分数据集

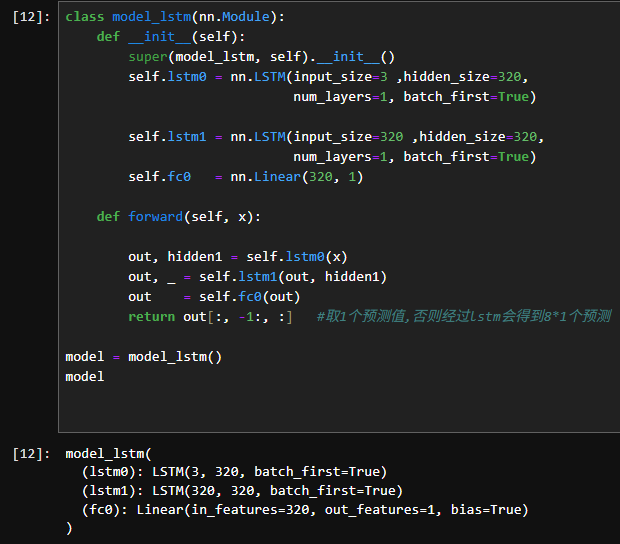

三、构建模型

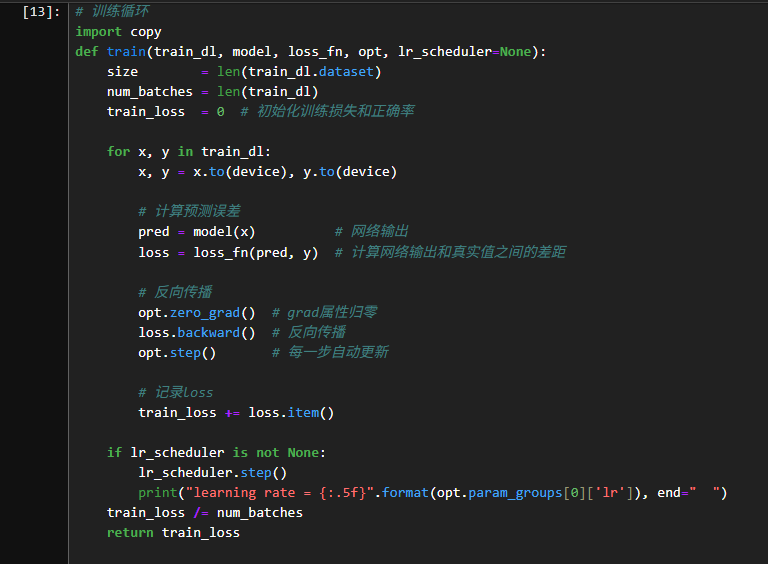

3.1定义训练函数

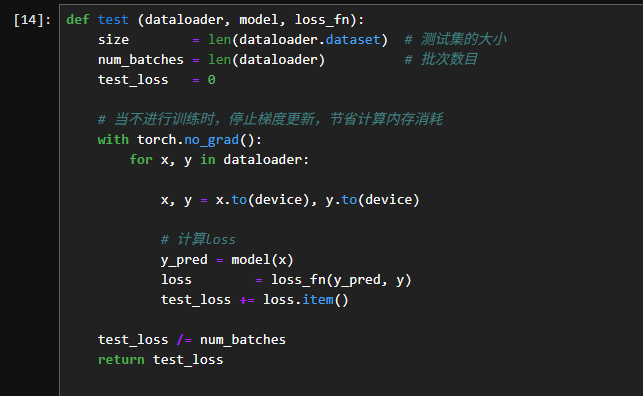

3.2定义测试函数

四、训练模型

#训练模型
model = model_lstm()
model = model.to(device)
loss_fn    = nn.MSELoss() # 创建损失函数
learn_rate = 1e-1   # 学习率
opt        = torch.optim.SGD(model.parameters(),lr=learn_rate,weight_decay=1e-4)
epochs     = 50
train_loss = []
test_loss  = []
lr_scheduler = torch.optim.lr_scheduler.CosineAnnealingLR(opt,epochs, last_epoch=-1) for epoch in range(epochs):model.train()epoch_train_loss = train(train_dl, model, loss_fn, opt, lr_scheduler)model.eval()epoch_test_loss = test(test_dl, model, loss_fn)train_loss.append(epoch_train_loss)test_loss.append(epoch_test_loss)template = ('Epoch:{:2d}, Train_loss:{:.5f}, Test_loss:{:.5f}')print(template.format(epoch+1, epoch_train_loss,  epoch_test_loss))print("="*20, 'Done', "="*20)

输出

learning rate = 0.09990  Epoch: 1, Train_loss:0.00120, Test_loss:0.01197
learning rate = 0.09961  Epoch: 2, Train_loss:0.01372, Test_loss:0.01150
learning rate = 0.09911  Epoch: 3, Train_loss:0.01330, Test_loss:0.01102
learning rate = 0.09843  Epoch: 4, Train_loss:0.01282, Test_loss:0.01050
learning rate = 0.09755  Epoch: 5, Train_loss:0.01228, Test_loss:0.00993
learning rate = 0.09649  Epoch: 6, Train_loss:0.01166, Test_loss:0.00931
learning rate = 0.09524  Epoch: 7, Train_loss:0.01094, Test_loss:0.00863
learning rate = 0.09382  Epoch: 8, Train_loss:0.01013, Test_loss:0.00790
learning rate = 0.09222  Epoch: 9, Train_loss:0.00922, Test_loss:0.00712
learning rate = 0.09045  Epoch:10, Train_loss:0.00823, Test_loss:0.00631
learning rate = 0.08853  Epoch:11, Train_loss:0.00718, Test_loss:0.00550
learning rate = 0.08645  Epoch:12, Train_loss:0.00611, Test_loss:0.00471
learning rate = 0.08423  Epoch:13, Train_loss:0.00507, Test_loss:0.00397
learning rate = 0.08187  Epoch:14, Train_loss:0.00409, Test_loss:0.00330
learning rate = 0.07939  Epoch:15, Train_loss:0.00322, Test_loss:0.00272
learning rate = 0.07679  Epoch:16, Train_loss:0.00247, Test_loss:0.00223
learning rate = 0.07409  Epoch:17, Train_loss:0.00185, Test_loss:0.00183
learning rate = 0.07129  Epoch:18, Train_loss:0.00137, Test_loss:0.00152
learning rate = 0.06841  Epoch:19, Train_loss:0.00100, Test_loss:0.00128
learning rate = 0.06545  Epoch:20, Train_loss:0.00073, Test_loss:0.00110
learning rate = 0.06243  Epoch:21, Train_loss:0.00054, Test_loss:0.00097
learning rate = 0.05937  Epoch:22, Train_loss:0.00040, Test_loss:0.00087
learning rate = 0.05627  Epoch:23, Train_loss:0.00031, Test_loss:0.00079
learning rate = 0.05314  Epoch:24, Train_loss:0.00024, Test_loss:0.00073
learning rate = 0.05000  Epoch:25, Train_loss:0.00020, Test_loss:0.00069
learning rate = 0.04686  Epoch:26, Train_loss:0.00017, Test_loss:0.00066
learning rate = 0.04373  Epoch:27, Train_loss:0.00015, Test_loss:0.00063
learning rate = 0.04063  Epoch:28, Train_loss:0.00013, Test_loss:0.00061
learning rate = 0.03757  Epoch:29, Train_loss:0.00012, Test_loss:0.00059
learning rate = 0.03455  Epoch:30, Train_loss:0.00012, Test_loss:0.00058
learning rate = 0.03159  Epoch:31, Train_loss:0.00011, Test_loss:0.00057
learning rate = 0.02871  Epoch:32, Train_loss:0.00011, Test_loss:0.00056
learning rate = 0.02591  Epoch:33, Train_loss:0.00011, Test_loss:0.00055
learning rate = 0.02321  Epoch:34, Train_loss:0.00011, Test_loss:0.00055
learning rate = 0.02061  Epoch:35, Train_loss:0.00011, Test_loss:0.00055
learning rate = 0.01813  Epoch:36, Train_loss:0.00011, Test_loss:0.00055
learning rate = 0.01577  Epoch:37, Train_loss:0.00011, Test_loss:0.00055
learning rate = 0.01355  Epoch:38, Train_loss:0.00012, Test_loss:0.00056
learning rate = 0.01147  Epoch:39, Train_loss:0.00012, Test_loss:0.00056
learning rate = 0.00955  Epoch:40, Train_loss:0.00012, Test_loss:0.00057
learning rate = 0.00778  Epoch:41, Train_loss:0.00013, Test_loss:0.00058
learning rate = 0.00618  Epoch:42, Train_loss:0.00013, Test_loss:0.00059
learning rate = 0.00476  Epoch:43, Train_loss:0.00013, Test_loss:0.00060
learning rate = 0.00351  Epoch:44, Train_loss:0.00014, Test_loss:0.00060
learning rate = 0.00245  Epoch:45, Train_loss:0.00014, Test_loss:0.00061
learning rate = 0.00157  Epoch:46, Train_loss:0.00014, Test_loss:0.00061
learning rate = 0.00089  Epoch:47, Train_loss:0.00014, Test_loss:0.00061
learning rate = 0.00039  Epoch:48, Train_loss:0.00014, Test_loss:0.00061
learning rate = 0.00010  Epoch:49, Train_loss:0.00014, Test_loss:0.00061
learning rate = 0.00000  Epoch:50, Train_loss:0.00014, Test_loss:0.00061
==================== Done ====================

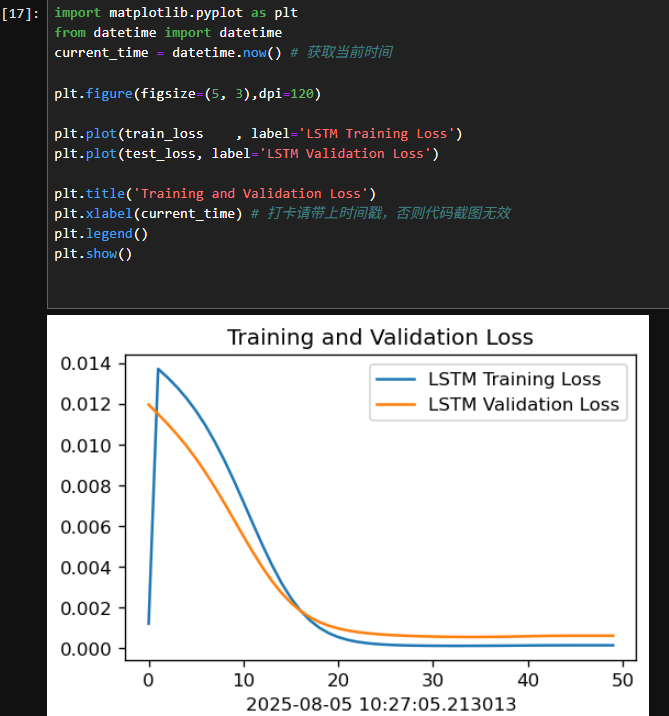

4.1Loss图

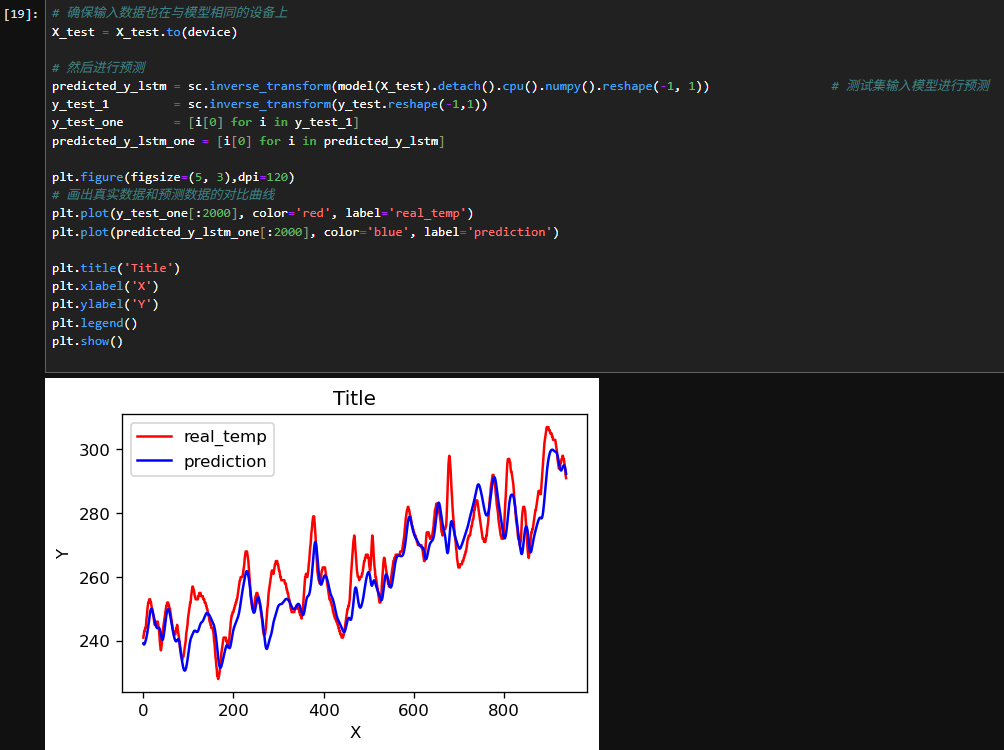

4.2调用模型进行预测

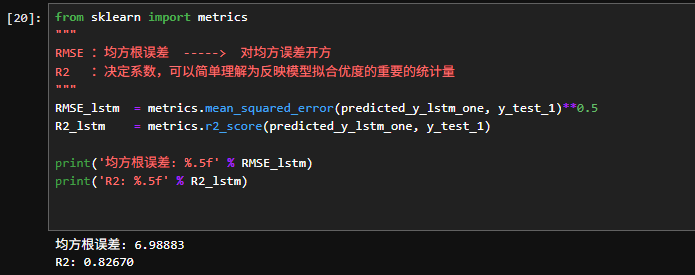

4.3R2值评估

五、总结

1. LSTM模型的核心优势
   时间序列数据的建模能力：LSTM（长短时记忆网络）专门设计来处理和预测序列数据中的长期依赖关系。在火灾温度预测这种时间序列问题中，LSTM能够有效捕捉过去温度数据与未来温度之间的关联，尤其在火灾数据中，温度往往有较强的时间依赖性。

解决梯度消失问题：传统的RNN在长时间序列中容易遇到梯度消失问题，而LSTM通过引入记忆单元（cell state）和门控机制有效地缓解了这一问题，能够记住远期的信息。

2. PyTorch的使用
   灵活性和易用性：PyTorch框架提供了非常简洁的API，并且在实现LSTM时具有高度的灵活性，能方便地调整网络结构、训练参数及优化方法。

调试和可视化：PyTorch的动态计算图使得调试过程更加直观，尤其是在处理复杂的深度学习模型时，可以逐步查看模型输出、梯度等中间结果。

3. 模型训练与评估
   数据预处理的重要性：时间序列数据的预处理，尤其是数据标准化或归一化，能够显著提高LSTM模型的训练效果。温度数据可能存在波动和不规律的变化，因此，去噪和处理缺失数据是模型成功的关键因素。

模型评估：对于回归任务，如火灾温度预测，常用的评估指标包括均方误差（MSE）、均方根误差（RMSE）和决定系数（R²）。这些指标可以帮助评估模型的预测精度，进一步调整模型超参数和结构。

4. 模型的表现
   训练和测试误差：通过模型训练过程中观察训练和测试误差，可能发现训练集误差较低但测试集误差较高，暗示过拟合的存在。通过交叉验证和正则化技术可以有效解决这一问题。

时间依赖性：LSTM能够捕捉到较长时间跨度的数据关系，但有时也会遇到短期依赖的情况，可能需要调整网络层数、隐藏层维度等参数
