深度学习·mmsegmentation基础教程

mmsegmentation的使用教程

mmsegmentation微调方法总结

• 自定义自己的数据集：mmsegmentation\configs\_base_\datasets\ZihaoDataset_pipeline.py
• 注册：mmsegmentation\configs\_base_\datasets\__init__.py
• 定义训练和测试的pipeline：mmsegmentation\configs\_base_\datasets\ZihaoDataset_pipeline.py，修改关键参数(与之前匹配)
• 融合预训练模型：configs/fastscnn/fast_scnn_8xb4-160k_cityscapes-512x1024.py和pipeline：mmsegmentation\configs\_base_\datasets\ZihaoDataset_pipeline.py文件，注意微调分割头!!!，注意微调分割头!!!，注意微调分割头!!!
• 得到最后的config文件ZihaoDataset_FastSCNN_20230818.py
• 测试：需要用到训练时的.pth文件
• 推理：根据融合后的config文件和.pth文件调用inference_model()API对图片进行推理。
• 可视化：可以使用官方提供的针对单个图片的可视化结果
• 所有指标和日志保存在work_dirs/xxx/.json文件下，如果需要单个class的指标结果，可以使用.log文件匹配。
• 注意：opencv加载图片的格式是：bgr格式

自定义数据集mmsegmentation\mmseg\datasets\ZihaoDataset.py

• 继承BaseSegDataset：from .basesegdataset import BaseSegDataset

class ZihaoDataset(BaseSegDataset):

• 类别和RGB标签的映射关系

METAINFO = {'classes':['background', 'red', 'green', 'white', 'seed-black', 'seed-white'],'palette':[[127,127,127], [200,0,0], [0,200,0], [144,238,144], [30,30,30], [251,189,8]]}

• 指定图像扩展名、标注扩展名

    def __init__(self,seg_map_suffix='.png',   # 标注mask图像的格式reduce_zero_label=False, # 类别ID为0的类别是否需要除去**kwargs) -> None:super().__init__(seg_map_suffix=seg_map_suffix,reduce_zero_label=reduce_zero_label,**kwargs)

from mmseg.registry import DATASETS
from .basesegdataset import BaseSegDataset@DATASETS.register_module()
class ZihaoDataset(BaseSegDataset):# 类别和对应的 RGB配色METAINFO = {'classes':['background', 'red', 'green', 'white', 'seed-black', 'seed-white'],'palette':[[127,127,127], [200,0,0], [0,200,0], [144,238,144], [30,30,30], [251,189,8]]}# 指定图像扩展名、标注扩展名def __init__(self,seg_map_suffix='.png',   # 标注mask图像的格式reduce_zero_label=False, # 类别ID为0的类别是否需要除去**kwargs) -> None:super().__init__(seg_map_suffix=seg_map_suffix,reduce_zero_label=reduce_zero_label,**kwargs)

注册修改mmsegmentation\mmseg\datasets\__init__.py

• 导入ZihaoDataset

from .ZihaoDataset import ZihaoDataset

• __all__ 后面加入'ZihaoDataset'

# yapf: enable
__all__ = ['BaseSegDataset', 'BioMedical3DRandomCrop', 'BioMedical3DRandomFlip','CityscapesDataset', 'PascalVOCDataset', 'ADE20KDataset','PascalContextDataset', 'PascalContextDataset59', 'ChaseDB1Dataset','DRIVEDataset', 'HRFDataset', 'STAREDataset', 'DarkZurichDataset','NightDrivingDataset', 'COCOStuffDataset', 'LoveDADataset','MultiImageMixDataset', 'iSAIDDataset', 'ISPRSDataset', 'PotsdamDataset','LoadAnnotations', 'RandomCrop', 'SegRescale', 'PhotoMetricDistortion','RandomRotate', 'AdjustGamma', 'CLAHE', 'Rerange', 'RGB2Gray','RandomCutOut', 'RandomMosaic', 'PackSegInputs', 'ResizeToMultiple','LoadImageFromNDArray', 'LoadBiomedicalImageFromFile','LoadBiomedicalAnnotation', 'LoadBiomedicalData', 'GenerateEdge','DecathlonDataset', 'LIPDataset', 'ResizeShortestEdge','BioMedicalGaussianNoise', 'BioMedicalGaussianBlur','BioMedicalRandomGamma', 'BioMedical3DPad', 'RandomRotFlip','SynapseDataset', 'REFUGEDataset', 'MapillaryDataset_v1','MapillaryDataset_v2', 'Albu', 'LEVIRCDDataset','LoadMultipleRSImageFromFile', 'LoadSingleRSImageFromFile','ConcatCDInput', 'BaseCDDataset', 'DSDLSegDataset', 'BDD100KDataset','ZihaoDataset'
]

`mmsegmentation\mmseg相当于源码部分

在configs中自定义训练和测试pipeline mmsegmentation\configs\_base_\datasets\ZihaoDataset_pipeline.py

必须修改的地方有：

• 类名和数据集根地址，注意接下来的img_path和seg_map_path参数会和data_root拼接在一起
• 还包括一些数据增强和训练相关的参数。

dataset_type = 'ZihaoDataset' # 数据集类名
data_root = 'Watermelon87_Semantic_Seg_Mask/' # 数据集路径（相对于mmsegmentation主目录）

• img_path和seg_map_path参数

train_dataloader = dict(batch_size=2,num_workers=2,persistent_workers=True,sampler=dict(type='InfiniteSampler', shuffle=True),dataset=dict(type=dataset_type,data_root=data_root,data_prefix=dict(img_path='img_dir/train', seg_map_path='ann_dir/train'),pipeline=train_pipeline))# 验证 Dataloader
val_dataloader = dict(batch_size=1,num_workers=4,persistent_workers=True,sampler=dict(type='DefaultSampler', shuffle=False),dataset=dict(type=dataset_type,data_root=data_root,data_prefix=dict(img_path='img_dir/val', seg_map_path='ann_dir/val'),pipeline=test_pipeline))

# 数据处理 pipeline
# 数据集路径
dataset_type = 'ZihaoDataset' # 数据集类名
data_root = 'Watermelon87_Semantic_Seg_Mask/' # 数据集路径（相对于mmsegmentation主目录）# 输入模型的图像裁剪尺寸，一般是 128 的倍数，越小显存开销越少
crop_size = (512, 512)# 训练预处理
train_pipeline = [dict(type='LoadImageFromFile'),dict(type='LoadAnnotations'),dict(type='RandomResize',scale=(2048, 1024),ratio_range=(0.5, 2.0),keep_ratio=True),dict(type='RandomCrop', crop_size=crop_size, cat_max_ratio=0.75),dict(type='RandomFlip', prob=0.5),dict(type='PhotoMetricDistortion'),dict(type='PackSegInputs')
]# 测试预处理
test_pipeline = [dict(type='LoadImageFromFile'),dict(type='Resize', scale=(2048, 1024), keep_ratio=True),dict(type='LoadAnnotations'),dict(type='PackSegInputs')
]# TTA后处理(增强性能的技巧)
img_ratios = [0.5, 0.75, 1.0, 1.25, 1.5, 1.75] # 先缩放后全部加权得到结果
tta_pipeline = [dict(type='LoadImageFromFile', file_client_args=dict(backend='disk')),dict(type='TestTimeAug',transforms=[[dict(type='Resize', scale_factor=r, keep_ratio=True)for r in img_ratios],[dict(type='RandomFlip', prob=0., direction='horizontal'),dict(type='RandomFlip', prob=1., direction='horizontal')], [dict(type='LoadAnnotations')], [dict(type='PackSegInputs')]])
]# 训练 Dataloader
train_dataloader = dict(batch_size=2,num_workers=2,persistent_workers=True,sampler=dict(type='InfiniteSampler', shuffle=True),dataset=dict(type=dataset_type,data_root=data_root,data_prefix=dict(img_path='img_dir/train', seg_map_path='ann_dir/train'),pipeline=train_pipeline))# 验证 Dataloader
val_dataloader = dict(batch_size=1,num_workers=4,persistent_workers=True,sampler=dict(type='DefaultSampler', shuffle=False),dataset=dict(type=dataset_type,data_root=data_root,data_prefix=dict(img_path='img_dir/val', seg_map_path='ann_dir/val'),pipeline=test_pipeline))# 测试 Dataloader
test_dataloader = val_dataloader# 验证 Evaluator
val_evaluator = dict(type='IoUMetric', iou_metrics=['mIoU', 'mDice', 'mFscore'])# 测试 Evaluator
test_evaluator = val_evaluator

微调(迁移学习)方法

• 导入两个py文件，一个是预训练模型的文件configs/fastscnn/fast_scnn_8xb4-160k_cityscapes-512x1024.py
• 一个是我们定义好的训练和测试pipeline文件./configs/_base_/datasets/ZihaoDataset_pipeline.py
• 两个要结合起来

from mmengine import Config
cfg = Config.fromfile('configs/fastscnn/fast_scnn_8xb4-160k_cityscapes-512x1024.py')
dataset_cfg = Config.fromfile('./configs/_base_/datasets/ZihaoDataset_pipeline.py')
cfg.merge_from_dict(dataset_cfg)

微调方法

• 修改分割头

NUM_CLASS = 6
cfg.norm_cfg = dict(type='BN', requires_grad=True) # 只使用GPU时，BN取代SyncBN
cfg.model.backbone.norm_cfg = cfg.norm_cfg
cfg.model.decode_head.norm_cfg = cfg.norm_cfgcfg.dump('Zihao-Configs/ZihaoDataset_FastSCNN_20230818.py')
cfg.model.auxiliary_head[0].norm_cfg = cfg.norm_cfg
cfg.model.auxiliary_head[1].norm_cfg = cfg.norm_cfg# 模型 decode/auxiliary 输出头，指定为类别个数
cfg.model.decode_head.num_classes = NUM_CLASS
cfg.model.auxiliary_head[0]['num_classes'] = NUM_CLASS
cfg.model.auxiliary_head[1]['num_classes'] = NUM_CLASScfg.train_dataloader.batch_size = 4cfg.test_dataloader = cfg.val_dataloader# 结果保存目录
cfg.work_dir = './work_dirs/ZihaoDataset-FastSCNN'cfg.train_cfg.max_iters = 30000 # 训练迭代次数
cfg.train_cfg.val_interval = 500 # 评估模型间隔
cfg.default_hooks.logger.interval = 100 # 日志记录间隔
cfg.default_hooks.checkpoint.interval = 2500 # 模型权重保存间隔
cfg.default_hooks.checkpoint.max_keep_ckpts = 2 # 最多保留几个模型权重
cfg.default_hooks.checkpoint.save_best = 'mIoU' # 保留指标最高的模型权重# 随机数种子
cfg['randomness'] = dict(seed=0)

保存为最终的Config配置文件

cfg.dump('Zihao-Configs/ZihaoDataset_FastSCNN_20230818.py')

训练细节

08/02 12:35:34 - mmengine - INFO - Iter(val) [11/11]    aAcc: 87.5900  mIoU: 56.0600  mAcc: 71.7300  mDice: 65.9000  mFscore: 79.0800  mPrecision: 75.2700  mRecall: 71.7300  data_time: 0.0069  time: 0.0345
08/02 12:35:47 - mmengine - INFO - Iter(train) [ 9600/10000]  lr: 1.1351e-01  eta: 0:00:50  time: 0.1238  data_time: 0.0031  memory: 864  loss: 0.0688  decode.loss_ce: 0.0305  decode.acc_seg: 92.9966  aux_0.loss_ce: 0.0163  aux_0.acc_seg: 87.6057  aux_1.loss_ce: 0.0220  aux_1.acc_seg: 87.0640
08/02 12:35:59 - mmengine - INFO - Iter(train) [ 9700/10000]  lr: 1.1344e-01  eta: 0:00:37  time: 0.1298  data_time: 0.0033  memory: 864  loss: 0.1297  decode.loss_ce: 0.0651  decode.acc_seg: 71.6496  aux_0.loss_ce: 0.0297  aux_0.acc_seg: 69.3979  aux_1.loss_ce: 0.0349  aux_1.acc_seg: 58.9588
08/02 12:36:12 - mmengine - INFO - Iter(train) [ 9800/10000]  lr: 1.1337e-01  eta: 0:00:25  time: 0.1242  data_time: 0.0031  memory: 864  loss: 0.1223  decode.loss_ce: 0.0587  decode.acc_seg: 51.1257  aux_0.loss_ce: 0.0292  aux_0.acc_seg: 53.5561  aux_1.loss_ce: 0.0345  aux_1.acc_seg: 46.3654
08/02 12:36:25 - mmengine - INFO - Iter(train) [ 9900/10000]  lr: 1.1330e-01  eta: 0:00:12  time: 0.1261  data_time: 0.0032  memory: 864  loss: 0.0845  decode.loss_ce: 0.0380  decode.acc_seg: 86.1641  aux_0.loss_ce: 0.0210  aux_0.acc_seg: 77.3401  aux_1.loss_ce: 0.0255  aux_1.acc_seg: 62.3304
08/02 12:36:37 - mmengine - INFO - Exp name: ZihaoDataset_FastSCNN_20230818_20250802_121506
08/02 12:36:37 - mmengine - INFO - Iter(train) [10000/10000]  lr: 1.1323e-01  eta: 0:00:00  time: 0.1213  data_time: 0.0031  memory: 864  loss: 0.0956  decode.loss_ce: 0.0432  decode.acc_seg: 93.6745  aux_0.loss_ce: 0.0243  aux_0.acc_seg: 90.1726  aux_1.loss_ce: 0.0281  aux_1.acc_seg: 90.2538
08/02 12:36:37 - mmengine - INFO - Saving checkpoint at 10000 iterations
08/02 12:36:38 - mmengine - INFO - per class results:
08/02 12:36:38 - mmengine - INFO -
+------------+-------+-------+-------+--------+-----------+--------+
|   Class    |  IoU  |  Acc  |  Dice | Fscore | Precision | Recall |
+------------+-------+-------+-------+--------+-----------+--------+
| background | 85.65 | 89.88 | 92.27 | 92.27  |   94.79   | 89.88  |
|    red     |  81.3 | 98.28 | 89.69 | 89.69  |   82.47   | 98.28  |
|   green    | 59.15 | 67.73 | 74.33 | 74.33  |   82.37   | 67.73  |
|   white    | 58.04 | 69.85 | 73.45 | 73.45  |   77.44   | 69.85  |
| seed-black | 61.43 | 78.07 | 76.11 | 76.11  |   74.24   | 78.07  |
| seed-white |  0.0  |  0.0  |  0.0  |  nan   |    nan    |  0.0   |
+------------+-------+-------+-------+--------+-----------+--------+
08/02 12:36:38 - mmengine - INFO - Iter(val) [11/11]    aAcc: 88.9900  mIoU: 57.5900  mAcc: 67.3000  mDice: 67.6400  mFscore: 81.1700  mPrecision: 82.2600  mRecall: 67.3000  data_time: 0.0075  time: 0.0340

可视化数据mmsegmentation\work_dirs\ZihaoDataset-FastSCNN\20250802_121506\vis_data

在vis_data目录下的log_path = './work_dirs/ZihaoDataset-FastSCNN/20250802_121506/vis_data/scalars.json'的文件，用于记录整体各种指标的记录情况。

with open(log_path, "r") as f:json_list = f.readlines()eval(json_list[4])

输出结果如下：

{'lr': 0.11973086417099389,'data_time': 0.004000043869018555,'loss': 0.1377907693386078,'decode.loss_ce': 0.07181963995099068,'decode.acc_seg': 88.35430145263672,'aux_0.loss_ce': 0.032481906749308107,'aux_0.acc_seg': 85.88199615478516,'aux_1.loss_ce': 0.03348922152072191,'aux_1.acc_seg': 81.13632202148438,'time': 0.12697319984436034,'iter': 400,'memory': 863,'step': 400}

针对每一个类别的各种指标可视化
存储在log文件中：work_dirs/ZihaoDataset-FastSCNN/20250802_121506/20250802_121506.log
我们要读取的就是这种格式的指标：

+------------+-------+-------+-------+--------+-----------+--------+
|   Class    |  IoU  |  Acc  |  Dice | Fscore | Precision | Recall |
+------------+-------+-------+-------+--------+-----------+--------+
| background | 85.65 | 89.88 | 92.27 | 92.27  |   94.79   | 89.88  |
|    red     |  81.3 | 98.28 | 89.69 | 89.69  |   82.47   | 98.28  |
|   green    | 59.15 | 67.73 | 74.33 | 74.33  |   82.37   | 67.73  |
|   white    | 58.04 | 69.85 | 73.45 | 73.45  |   77.44   | 69.85  |
| seed-black | 61.43 | 78.07 | 76.11 | 76.11  |   74.24   | 78.07  |
| seed-white |  0.0  |  0.0  |  0.0  |  nan   |    nan    |  0.0   |
+------------+-------+-------+-------+--------+-----------+--------+

pth权重保存路径mmsegmentation\work_dirs\ZihaoDataset-FastSCNN

我将这个pth文件移动到mmsegmentation\pretrained\ZihaoDataset_FastSCNN_20230818.pth这个路径下

测试方法

最终config配置文件+模型的权重文件

python tools/test.py Zihao-Configs/ZihaoDataset_FastSCNN_20230818.py pretrained/ZihaoDataset_FastSCNN_20230818.pth

默认保存路径mmsegmentation\work_dirs\ZihaoDataset-FastSCNN\20250802_134015，与训练的保存目录一致。

推理

使用合并后的config配置文件和权重

载入模型

# 模型 config 配置文件
config_file = 'Zihao-Configs/ZihaoDataset_FastSCNN_20230818.py'
# 模型 checkpoint 权重文件
checkpoint_file = 'pretrained/ZihaoDataset_FastSCNN_20230818.pth'
# device = 'cpu'
device = 'cuda:0'
model = init_model(config_file, checkpoint_file, device=device)

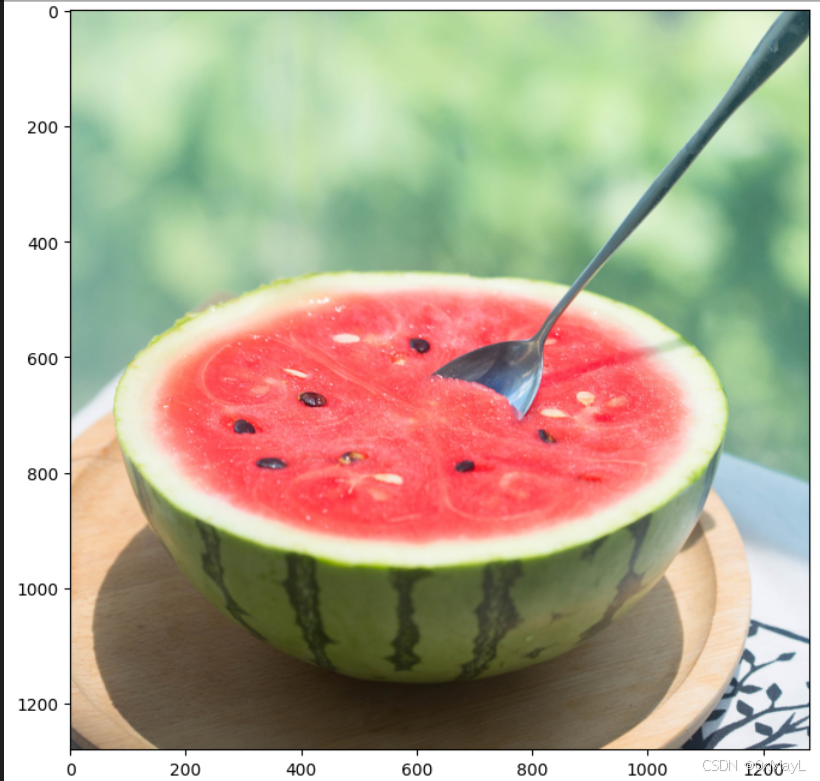

推理过程

result = inference_model(model, img_bgr)，好像要用BGR格式的图片进行推理？返回一个result，SegDataSample类型，分为两个东西，一个是预测的类别，一个是概率，其余就是tensor的使用方法。

result = inference_model(model, img_bgr)
result.keys()  ['pred_sem_seg', 'seg_logits']
pred_mask = result.pred_sem_seg.data[0].cpu().numpy()
pred_mask.shape (1280, 1280)
result.seg_logits.data.shape torch.Size([6, 1280, 1280])

批量推理

其实就是将每个图像都预测一下，然后与掩码矩阵叠加一下，保存到输出文件夹下

def process_single_img(img_path, save=False):img_bgr = cv2.imread(img_path)# 语义分割预测result = inference_model(model, img_bgr)pred_mask = result.pred_sem_seg.data[0].cpu().numpy()# 将预测的整数ID，映射为对应类别的颜色pred_mask_bgr = np.zeros((pred_mask.shape[0], pred_mask.shape[1], 3))for idx in palette_dict.keys():pred_mask_bgr[np.where(pred_mask==idx)] = palette_dict[idx]pred_mask_bgr = pred_mask_bgr.astype('uint8')# 将语义分割预测图和原图叠加显示pred_viz = cv2.addWeighted(img_bgr, opacity, pred_mask_bgr, 1-opacity, 0)# 保存图像至 outputs/testset-pred 目录if save:save_path = os.path.join('../','../','../','outputs', 'testset-pred', 'pred-'+img_path.split('/')[-1])cv2.imwrite(save_path, pred_viz)

摄像头推理(实时分割)

但是我没有摄像头😒

python demo/video_demo.py 0 Zihao-Configs/ZihaoDataset_FastSCNN_20230818.py pretrained/ZihaoDataset_FastSCNN_20230818.pth --device cuda:0 --opacity 0.5 --show

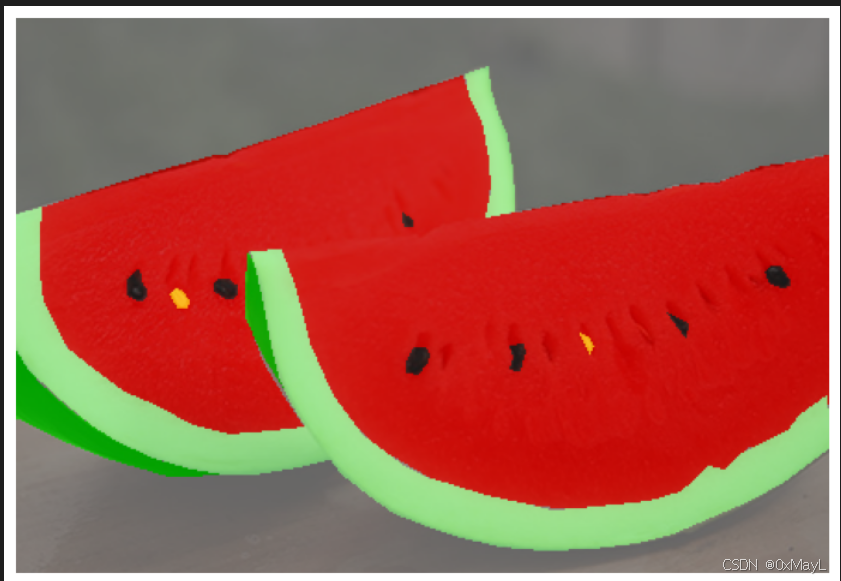

可视化

官方提供的可视化分割图片的代码

根据在Dataset中定义METAINFO来绘制掩码矩阵的，最后返回处理好的图片。

 METAINFO = {'classes':['background', 'red', 'green', 'white', 'seed-black', 'seed-white'],'palette':[[127,127,127], [200,0,0], [0,200,0], [144,238,144], [30,30,30], [251,189,8]]}

from mmseg.apis import show_result_pyplot
img_viz = show_result_pyplot(model, img_path, result, opacity=0.8, title='MMSeg', out_file='outputs/K1-4.jpg')
plt.figure(figsize=(14, 8))
plt.imshow(img_viz)
plt.show()

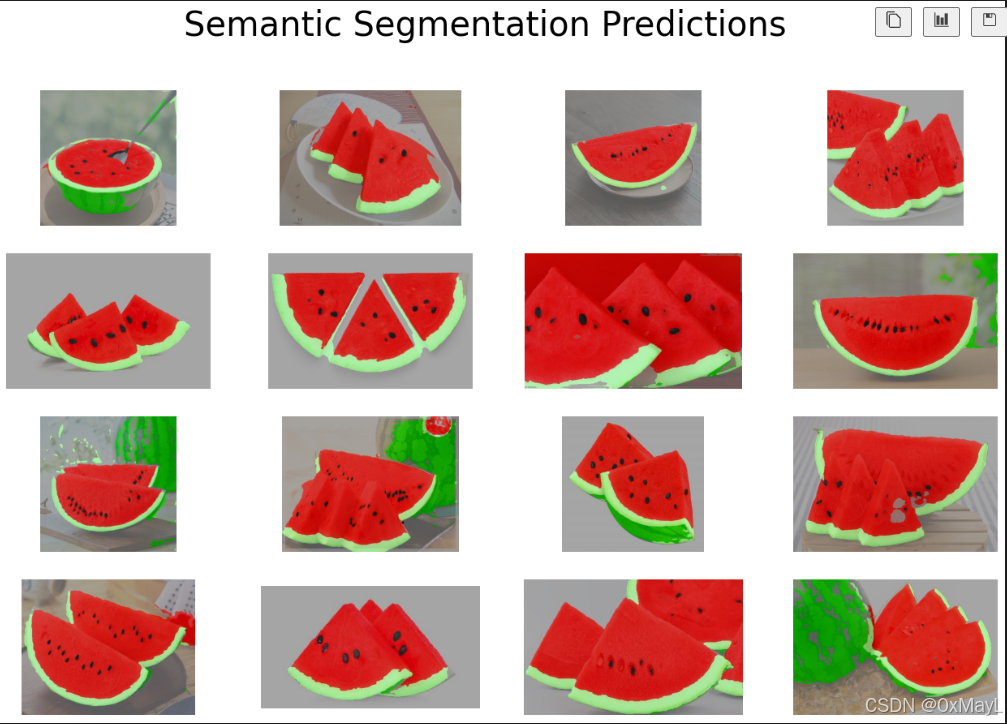

批量可视化代码：用于获得n行n列的图像

不用记忆

# n 行 n 列可视化
n = 4fig, axes = plt.subplots(nrows=n, ncols=n, figsize=(16, 10))for i, file_name in enumerate(os.listdir()[:n**2]):img_bgr = cv2.imread(file_name)# 可视化axes[i//n, i%n].imshow(img_bgr[:,:,::-1])axes[i//n, i%n].axis('off') # 关闭坐标轴显示
fig.suptitle('Semantic Segmentation Predictions', fontsize=30)
# plt.tight_layout()
plt.savefig('../K3.jpg')
plt.show()

数据集的存储要求(待续)

整数掩码/掩膜

• 存储格式必须是png，目的是为了无损

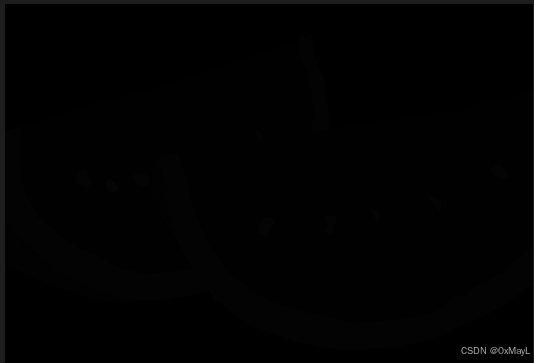

  像素太小，什么都看不出来。

虽然掩码是一个整数矩阵，但是保存为png格式时，必须存储3通道

img.shape
mask.shape
(300, 440, 3)
(300, 440, 3)

整数掩码转换为RGB通道可视化
取图像的任一一个通道，关键是使用np.where()

mask = mask[:,:,0]# 将整数ID，映射为对应类别的颜色
viz_mask_bgr = np.zeros((mask.shape[0], mask.shape[1], 3))
for idx in palette_dict.keys():viz_mask_bgr[np.where(mask==idx)] = palette_dict[idx]
viz_mask_bgr = viz_mask_bgr.astype('uint8')# 将语义分割标注图和原图叠加显示
opacity = 0.1 # 透明度越大，可视化效果越接近原图
label_viz = cv2.addWeighted(img, opacity, viz_mask_bgr, 1-opacity, 0)

opencv的注意事项

注意opencv载入图片是bgr格式，要进行一个转换img_bgr[:,:,::-1]

img_bgr = cv2.imread(img_path)

参考文献

同济子豪兄
