TTL+日志的MDC实现简易链路追踪

news 2025/7/23 7:19:40

通过MDC实现简单链路追踪

需要用到的依赖

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency><!-- Hutool工具包 -->
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.8.16</version>
</dependency><!-- SLF4J日志 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</dependency><!-- Lombok 依赖 -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.30</version>
<scope>provided</scope>
</dependency><!-- SLF4J API 依赖 -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>2.0.9</version>
</dependency><!-- SLF4J 实现（例如 Logback）依赖 -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.4.11</version>
</dependency>

Spring配置类配置日志输出格式

配置输出格式，让我们自己加的TraceId可以成功输出

logging:pattern:console: "%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %X{traceId} %logger{36} - %msg%n"server:servlet:encoding:charset: UTF-8enabled: trueforce: true

AOP配置类

生成我们的TraceId放到我们的slf4j的MDC里面

注意为什么我们的只在Controller下往我们的MDC里面加东西呢

因为我们的MDC是共享上下文的，它会往下传递，我们不需要再匹配Service方法再生成一个ID

package com.example.threadpool.Config;import cn.hutool.core.util.IdUtil;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;@Aspect
@Component
public class ControllerLogAspect {public static final String TRACE_ID = "traceId";private static final Logger logger = LoggerFactory.getLogger(ControllerLogAspect.class);// 定义切入点，匹配带有 @Controller、@RestController 或 @Service 注解的类中的所有方法@Pointcut("@within(org.springframework.stereotype.Controller) || @within(org.springframework.web.bind.annotation.RestController) || @within(org.springframework.stereotype.Service)")public void controllerAndServiceMethods() {}@Around("controllerAndServiceMethods()")public Object around(ProceedingJoinPoint point) throws Throwable {try {String traceId = IdUtil.objectId();String fullTraceId = "追踪ID:" + traceId;MDC.put(TRACE_ID, fullTraceId);logger.info("Generated traceId: {}", fullTraceId); // 调试日志return point.proceed();} finally {MDC.remove(TRACE_ID);}}
}

Controller测试类

package com.example.threadpool.Config;import cn.hutool.core.util.IdUtil;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;@Aspect
@Component
public class ControllerLogAspect {public static final String TRACE_ID = "traceId";private static final Logger logger = LoggerFactory.getLogger(ControllerLogAspect.class);// 定义切入点，只匹配带有 @RestController 注解的类中的所有方法@Pointcut("@within(org.springframework.web.bind.annotation.RestController)")public void controllerMethods() {}@Around("controllerMethods()")public Object aroundController(ProceedingJoinPoint point) throws Throwable {try {String traceId = IdUtil.objectId();String fullTraceId = "追踪ID:" + traceId;MDC.put(TRACE_ID, fullTraceId);logger.info("Generated traceId: {}", fullTraceId); // 调试日志return point.proceed();} finally {MDC.remove(TRACE_ID);}}
}

Service测试类

package com.example.threadpool.Config;public interface TestService {public String test();
}
package com.example.threadpool.Config;import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Controller;
import org.springframework.stereotype.Service;@Controller
@Slf4j
public class TestServiceImpl implements TestService {@Overridepublic String test() {log.info("这是Service的日志");return null;}
}

输出结果

通过拦截器和请求头实现不同服务之间TraceID的传递

package com.achobeta.intercepter;import cn.hutool.core.util.IdUtil;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;@Component
public class LogInterceptor implements HandlerInterceptor {public static final String TRACE_ID = "traceId";@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {//如果有上层调用就用上层的IDString traceId = request.getHeader(TRACE_ID);if (traceId == null) {traceId = IdUtil.objectId();}MDC.put(TRACE_ID, traceId);response.addHeader(TRACE_ID, traceId);return true;}@Overridepublic void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)throws Exception {}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)throws Exception {MDC.remove(TRACE_ID);}}

异步情况下MDC的上下文丢失问题

MDC的底层是通过ThreadLocal来绑定到当前线程的

所以在做异步的时候要是不进行特殊处理就会造成MDC的上下文丢失

可以引入TTL来处理MDC的上下文丢失问题

TTL改进MDC实现链路追踪

引入TTL依赖

<dependency><groupId>com.alibaba</groupId><artifactId>transmittable-thread-local</artifactId><version>2.14.2</version>
</dependency>

重写TTL构造线程池方法-线程池适配器

package com.kira.scaffoldmvc.ShutDownHook;import com.alibaba.ttl.TtlCallable;
import com.alibaba.ttl.TtlRunnable;
import org.slf4j.MDC;
import java.util.Map;
import java.util.concurrent.*;public class TtlThreadPoolExecutor extends ThreadPoolExecutor {public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, ThreadFactory threadFactory) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, threadFactory);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, RejectedExecutionHandler handler) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, handler);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, ThreadFactory threadFactory, RejectedExecutionHandler handler) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, threadFactory, handler);}@Overridepublic void execute(Runnable command) {// 获取当前线程的MDC上下文Map<String, String> contextMap = MDC.getCopyOfContextMap();// 使用TtlRunnable包装，确保上下文传递super.execute(TtlRunnable.get(() -> {// 恢复MDC上下文if (contextMap != null) {MDC.setContextMap(contextMap);}try {command.run();} finally {// 不要在这里清除MDC，可能会影响后续任务// 由任务本身决定何时清理}}));}@Overridepublic Future<?> submit(Runnable task) {return super.submit(wrapTask(task));}@Overridepublic <T> Future<T> submit(Callable<T> task) {return super.submit(wrapTask(task));}private Runnable wrapTask(Runnable task) {Map<String, String> contextMap = MDC.getCopyOfContextMap();return TtlRunnable.get(() -> {if (contextMap != null) {MDC.setContextMap(contextMap);}try {task.run();} finally {MDC.clear();}});}private <T> Callable<T> wrapTask(Callable<T> task) {Map<String, String> contextMap = MDC.getCopyOfContextMap();return TtlCallable.get(() -> {if (contextMap != null) {MDC.setContextMap(contextMap);}try {return task.call();} finally {MDC.clear();}});}
}

@Bean注册线程池

package com.kira.scaffoldmvc.ShutDownHook;import com.alibaba.ttl.threadpool.TtlExecutors;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.event.ContextRefreshedEvent;
import org.springframework.context.event.EventListener;
import org.springframework.core.annotation.Order;
import org.springframework.scheduling.annotation.Async;import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;@Configuration
public class ThreadPoolConfig {public static final int CORE_POOL_SIZE = 5;public static final int MAX_POOL_SIZE = 10;public static final int QUEUE_CAPACITY = 100;public static final Long KEEP_ALIVE_TIME = 1L;@Beanpublic ThreadPoolExecutor kiraExecutor1() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}@Beanpublic ThreadPoolExecutor kiraExecutor2() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}@Beanpublic ThreadPoolExecutor kiraExecutor3() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}}

AOP类，调用Controller时放入TraceId

package com.kira.scaffoldmvc.Trace;import cn.hutool.core.util.IdUtil;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.slf4j.MDC;
import org.springframework.stereotype.Component;@Aspect
@Component
public class ControllerLogAspect {public static final String TRACE_ID = "traceId";private static final Logger logger = LoggerFactory.getLogger(ControllerLogAspect.class);// 定义切入点，匹配带有 @Controller、@RestController 或 @Service 注解的类中的所有方法@Pointcut("@within(org.springframework.stereotype.Controller) || @within(org.springframework.web.bind.annotation.RestController) || @within(org.springframework.stereotype.Service)")public void controllerAndServiceMethods() {}@Around("controllerAndServiceMethods()")public Object around(ProceedingJoinPoint point) throws Throwable {try {String traceId = IdUtil.objectId();String fullTraceId = "追踪ID:" + traceId;MDC.put(TRACE_ID, fullTraceId);logger.info("Generated traceId: {}", fullTraceId); // 调试日志return point.proceed();} finally {MDC.remove(TRACE_ID);}}
}

Controller接口测试

package com.kira.scaffoldmvc.Trace;import com.kira.scaffoldmvc.POJO.Result;
import jakarta.annotation.Resource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.concurrent.*;@RestController
@RequestMapping("/trace")
@Slf4j
public class TestTraceController {@ResourceThreadPoolExecutor kiraExecutor1;@GetMapping("/test")Result test(){log.info("测试MDC1");kiraExecutor1.execute(()->{log.info("测试MDC2");});return Result.success(true );}}

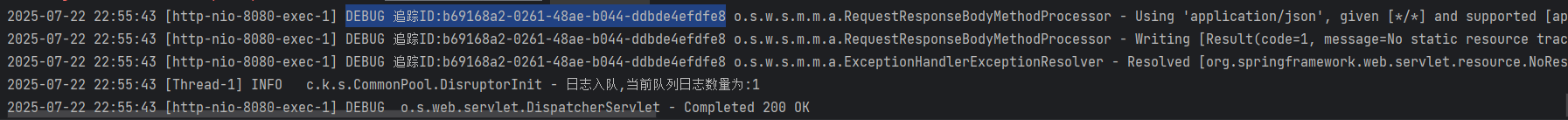

测试结果

traceId没有丢失

网关生成TraceId-拦截器放入TraceId

拦截器

拦截器放入TraceId或者生成TraceId

package com.kira.scaffoldmvc.Config;import com.kira.scaffoldmvc.CommonPool.RtaProxyContextInterceptor;
import com.kira.scaffoldmvc.Interceptor.LoginInterceptor;
import com.kira.scaffoldmvc.Trace.TraceInterceptor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;//配置我们的拦截器
@Configuration
public class WebConfig implements WebMvcConfigurer {//这个是在配置类里面来注册我们的拦截器@Autowiredprivate TraceInterceptor traceInterceptor;@Overridepublic void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(traceInterceptor).order(1).excludePathPatterns("/xxxx/xxxx","/xxxx/xxxx")//配置放行路径.addPathPatterns("/**");//拦截路径，/**拦截所有}
}


重写TTL构造线程池方法-线程池适配器

package com.kira.scaffoldmvc.ShutDownHook;import com.alibaba.ttl.TtlCallable;
import com.alibaba.ttl.TtlRunnable;
import org.slf4j.MDC;
import java.util.Map;
import java.util.concurrent.*;public class TtlThreadPoolExecutor extends ThreadPoolExecutor {public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, ThreadFactory threadFactory) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, threadFactory);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, RejectedExecutionHandler handler) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, handler);}public TtlThreadPoolExecutor(int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, ThreadFactory threadFactory, RejectedExecutionHandler handler) {super(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, threadFactory, handler);}@Overridepublic void execute(Runnable command) {// 获取当前线程的MDC上下文Map<String, String> contextMap = MDC.getCopyOfContextMap();// 使用TtlRunnable包装，确保上下文传递super.execute(TtlRunnable.get(() -> {// 恢复MDC上下文if (contextMap != null) {MDC.setContextMap(contextMap);}try {command.run();} finally {// 不要在这里清除MDC，可能会影响后续任务// 由任务本身决定何时清理}}));}@Overridepublic Future<?> submit(Runnable task) {return super.submit(wrapTask(task));}@Overridepublic <T> Future<T> submit(Callable<T> task) {return super.submit(wrapTask(task));}private Runnable wrapTask(Runnable task) {Map<String, String> contextMap = MDC.getCopyOfContextMap();return TtlRunnable.get(() -> {if (contextMap != null) {MDC.setContextMap(contextMap);}try {task.run();} finally {MDC.clear();}});}private <T> Callable<T> wrapTask(Callable<T> task) {Map<String, String> contextMap = MDC.getCopyOfContextMap();return TtlCallable.get(() -> {if (contextMap != null) {MDC.setContextMap(contextMap);}try {return task.call();} finally {MDC.clear();}});}
}

@Bean注册线程池

package com.kira.scaffoldmvc.ShutDownHook;import com.alibaba.ttl.threadpool.TtlExecutors;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.event.ContextRefreshedEvent;
import org.springframework.context.event.EventListener;
import org.springframework.core.annotation.Order;
import org.springframework.scheduling.annotation.Async;import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;@Configuration
public class ThreadPoolConfig {public static final int CORE_POOL_SIZE = 5;public static final int MAX_POOL_SIZE = 10;public static final int QUEUE_CAPACITY = 100;public static final Long KEEP_ALIVE_TIME = 1L;@Beanpublic ThreadPoolExecutor kiraExecutor1() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}@Beanpublic ThreadPoolExecutor kiraExecutor2() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}@Beanpublic ThreadPoolExecutor kiraExecutor3() {return new TtlThreadPoolExecutor(CORE_POOL_SIZE,MAX_POOL_SIZE,KEEP_ALIVE_TIME,TimeUnit.SECONDS,new ArrayBlockingQueue<>(QUEUE_CAPACITY),new ThreadPoolExecutor.AbortPolicy());}}

Controller接口测试

package com.kira.scaffoldmvc.Trace;import com.kira.scaffoldmvc.POJO.Result;
import jakarta.annotation.Resource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.concurrent.*;@RestController
@RequestMapping("/trace")
@Slf4j
public class TestTraceController {@ResourceThreadPoolExecutor kiraExecutor1;@GetMapping("/test")Result test(){log.info("测试MDC1");kiraExecutor1.execute(()->{log.info("测试MDC2");});return Result.success(true );}}

测试结果
