Rust Web 全栈开发(十):编写服务器端 Web 应用
参考视频:https://www.bilibili.com/video/BV1RP4y1G7KF
继续之前的 Actix 项目。

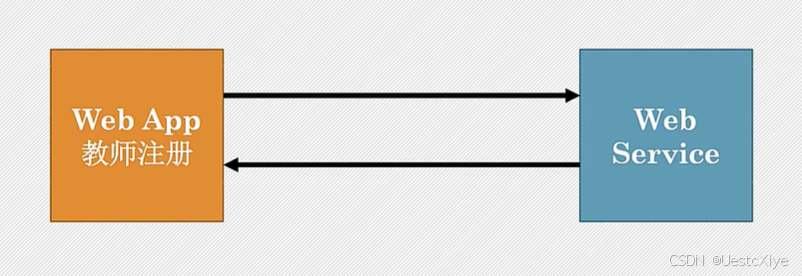

我们已经实现了一个 Web Service,现在我们想创建一个 Web App,在网页端查看并操作数据库中的数据。
主要的技术是模板引擎,它的作用是以静态页面作为模板,把动态的数据渲染进页面,最后一同返回给用户。
创建成员库:webapp
回到顶层的工作空间,在终端执行命令 cargo new webapp,创建一个新的成员库 webapp。

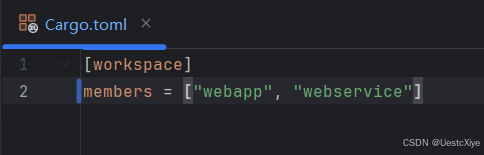

工作空间的 Cargo.toml 会自动添加这个新成员:
修改 webapp 中的 Cargo.toml,添加如下依赖:
[package]
name = "webapp"
version = "0.1.0"
edition = "2021"[dependencies]
actix-files = "0.6.0-beta.16"
actix-web = "4.0.0-rc.2"
awc = "3.0.0-beta.21"
dotenv = "0.15.0"
serde = { version = "1.0.136", features = ["derive"] }
serde_json = "1.0.79"
tera = "1.15.0"
在 webapp 目录下新建一个 .env 文件,内容如下:
HOST_PORT=127.0.0.1:8080
webapp 目录一览:
├── webapp
│ ├── src
│ │ ├── bin
│ │ └── svr.rs
│ │ └── mod.rs
│ │ └── errors.rs
│ │ └── handlers.rs
│ │ └── models.rs
│ │ └── routers.rs
│ ├── static
│ │ ├── css
│ │ └── bootstrap.min.css
│ │ ├── javascript
│ │ └── bootstrap.min.js
│ │ └── jquery.min.js
│ │ └── register.html
│ │ └── teachers.html
│ ├── .env
│ └── Cargo.toml
models
编辑 models.rs:
use serde::{Deserialize, Serialize};/// 教师信息,用于应用注册
#[derive(Serialize, Deserialize, Debug)]
pub struct TeacherRegisterForm {pub name: String,pub picture_url: String,pub profile: String,
}/// 教师信息,用于数据库查询
#[derive(Serialize, Deserialize, Debug)]
pub struct TeacherResponse {pub id: i32,pub name: String,pub picture_url: String,pub profile: String,
}
handlers
编辑 handlers.rs:
use crate::errors::MyError;
use crate::models::{TeacherRegisterForm, TeacherResponse};
use actix_web::{web, Error, HttpResponse, Result};
use serde_json::json;pub async fn get_all_teachers(tmpl: web::Data<tera::Tera>
) -> Result<HttpResponse, Error> {// 创建 HTTP 客户端let awc_client = awc::Client::default();let res = awc_client.get("http://localhost:3000/teachers/").send().await.unwrap().json::<Vec<TeacherResponse>>().await.unwrap();// 创建一个上下文,可以向 HTML 模板里添加数据let mut ctx = tera::Context::new();// 向上下文中插入数据ctx.insert("error", "");ctx.insert("teachers", &res);// s 是渲染的模板,静态部分是 teachers.html,动态数据是 ctxlet s = tmpl.render("teachers.html", &ctx).map_err(|_| MyError::TeraError("Template error".to_string()))?;Ok(HttpResponse::Ok().content_type("text/html").body(s))
}pub async fn show_register_form(tmpl: web::Data<tera::Tera>
) -> Result<HttpResponse, Error> {let mut ctx = tera::Context::new();ctx.insert("error", "");ctx.insert("current_name", "");ctx.insert("current_picture_url", "");ctx.insert("current_profile", "");let s = tmpl.render("register.html", &ctx).map_err(|_| MyError::TeraError("Template error".to_string()))?;Ok(HttpResponse::Ok().content_type("text/html").body(s))
}pub async fn handle_register(tmpl: web::Data<tera::Tera>,params: web::Form<TeacherRegisterForm>,
) -> Result<HttpResponse, Error> {let mut ctx = tera::Context::new();let s;if params.name == "Dave" {ctx.insert("error", "Dave already exists!");ctx.insert("current_name", ¶ms.name);ctx.insert("current_picture_url", ¶ms.picture_url);ctx.insert("current_profile", ¶ms.profile);s = tmpl.render("register.html", &ctx).map_err(|err| MyError::TeraError(err.to_string()))?;} else {let new_teacher = json!({"name": ¶ms.name,"picture_url": ¶ms.picture_url,"profile": ¶ms.profile,});let awc_client = awc::Client::default();let res = awc_client.post("http://localhost:3000/teachers/").send_json(&new_teacher).await.unwrap().body().await?;let teacher_response: String =serde_json::from_str(&std::str::from_utf8(&res)?)?;s = format!("Message from Web Server: {}", teacher_response);}Ok(HttpResponse::Ok().content_type("text/html").body(s))
}
get_all_teachers 函数向 http://localhost:3000/teachers/ 发生 GET 请求,将得到的 Vec<TeacherResponse> 渲染到 teachers.html,最终返回一个包含渲染网页的 HTTP Response。
show_register_form 函数创建一个包含教师信息(name、picture_url、profile)的上下文 ctx,渲染到 register.html,最终返回一个包含渲染网页的 HTTP Response。
handle_register 函数判断传入的教师的 name 是否是 Dave 来做出不同的响应。如果是,则将 Dave already exists! 错误信息渲染到 register.html,作为 s。如果不是,则向 http://localhost:3000/teachers/ 发送 json 化的新教师信息,将服务器的响应作为 s。最终返回一个包含 s 的 HTTP Response。
routers
编辑 routers.rs:
use crate::handlers::{get_all_teachers, handle_register, show_register_form};
use actix_files;
use actix_web::web;pub fn app_config(config: &mut web::ServiceConfig) {config.service(web::scope("").service(actix_files::Files::new("/static", "./static/").show_files_listing()).service(web::resource("/").route(web::get().to(get_all_teachers))).service(web::resource("/register").route(web::get().to(show_register_form))).service(web::resource("/register-post").route(web::post().to(handle_register))));
}
errors
编辑 errors.rs:
use actix_web::{error, http::StatusCode, HttpResponse, Result};
use serde::Serialize;
use std::fmt;#[derive(Debug, Serialize)]
pub enum MyError {ActixError(String),#[allow(dead_code)]NotFound(String),TeraError(String),
}#[derive(Debug, Serialize)]
pub struct MyErrorResponse {error_message: String,
}impl std::error::Error for MyError {}impl MyError {fn error_response(&self) -> String {match self {MyError::ActixError(msg) => {println!("Server error occurred: {:?}", msg);"Internal server error".into()}MyError::TeraError(msg) => {println!("Error in rendering the template: {:?}", msg);msg.into()}MyError::NotFound(msg) => {println!("Not found error occurred: {:?}", msg);msg.into()}}}
}impl error::ResponseError for MyError {fn status_code(&self) -> StatusCode {match self {MyError::ActixError(_msg) | MyError::TeraError(_msg) => StatusCode::INTERNAL_SERVER_ERROR,MyError::NotFound(_msg) => StatusCode::NOT_FOUND}}fn error_response(&self) -> HttpResponse {HttpResponse::build(self.status_code()).json(MyErrorResponse {error_message: self.error_response(),})}
}impl fmt::Display for MyError {fn fmt(&self, f: &mut fmt::Formatter) -> Result<(), fmt::Error> {write!(f, "{:?}", self)}
}impl From<actix_web::error::Error> for MyError {fn from(err: actix_web::error::Error) -> Self {MyError::ActixError(err.to_string())}
}
mod
mod.rs:
pub mod models;
pub mod handlers;
pub mod routers;
pub mod errors;
svr
bin/svr.rs 类似于 teacher_service.rs。
#[path = "../mod.rs"]
mod webapp;use actix_web::{web, App, HttpServer};
use dotenv::dotenv;
use routers::app_config;
use std::env;
use webapp::{errors, handlers, models, routers};
use tera::Tera;#[actix_web::main]
async fn main() -> std::io::Result<()> {// 检测并读取 .env 文件中的内容,若不存在也会跳过异常dotenv().ok();let host_port = env::var("HOST_PORT").expect("HOST_PORT is not set in .env file");println!("Listening on {}", &host_port);let app = move || {let tera = Tera::new(concat!(env!("CARGO_MANIFEST_DIR"), "/static/**/*")).unwrap();App::new().app_data(web::Data::new(tera)).configure(app_config)};HttpServer::new(app).bind(&host_port)?.run().await
}
CARGO_MANIFEST_DIR 就是 webapp 目录的地址,这一句代码将该地址与 /static 连接起来,告诉 app 这些静态文件的位置。
static
这个目录下都是网页相关的静态文件。
├── static
│ ├── css
│ └── bootstrap.min.css
│ ├── javascript
│ └── bootstrap.min.js
│ └── jquery.min.js
│ └── register.html
│ └── teachers.html
teachers.html
<!DOCTYPE html>
<html lang="en"><head><meta charset="UTF-8"><title>Teachers</title><link rel="stylesheet" href="/static/css/bootstrap.min.css">
</head><body><div class="container"><h1 class="mt-4 mb-4">Teacher List</h1><ul class="list-group">{% for t in teachers %}<li class="list-group-item"><div class="d-flex w-100 justify-content-between"><h5 class="mb-1">{{t.name}}</h5></div><p class="mb-1">{{t.profile}}</p></li>{% endfor %}</ul><div class="mt-4"><a href="/register" class="btn btn-primary">Register a Teacher</a></div></div><script src="/static/javascript/jquery.min.js"></script><script src="/static/javascript/bootstrap.min.js"></script>
</body></html>
register.html
<!DOCTYPE html>
<html lang="en"><head><meta charset="UTF-8"><title>Teacher registration</title><link rel="stylesheet" href="/static/css/bootstrap.min.css">
</head><body style="background-color: #f2f9fd;"><div class="container"><h2 class="header text-center mb-4 pt-4">Teacher Registration</h2><div class="row justify-content-center"><div class="col-md-6"><form action="/register-post" method="POST" class="p-4 bg-white rounded shadow-sm"><div class="form-group"><label for="name">Teacher Name</label><input type="text" name="name" id="name" value="{{current_name}}" class="form-control"></div><div class="form-group"><label for="picture_url">Teacher Picture URL</label><input type="text" name="picture_url" id="picture_url" value="{{current_picture_url}}"class="form-control"></div><div class="form-group"><label for="profile">Teacher Profile</label><input type="text" name="profile" id="profile" value="{{current_profile}}" class="form-control"></div><div><p style="color: red">{{error}}</p></div><br/><button type="submit" id="button1" class="btn btn-primary">Register</button></form></div></div></div><script src="/static/javascript/jquery.min.js"></script><script src="/static/javascript/bootstrap.min.js"></script>
</body></html>
bootstrap.min.css
文件太长,见于:UestcXiye/Actix-Workspace/webapp/static/css/bootstrap.min.css
bootstrap.min.js
文件太长,见于:UestcXiye/Actix-Workspace/webapp/static/javascript/bootstrap.min.js
jquery.min.js
文件太长,见于:UestcXiye/Actix-Workspace/webapp/static/javascript/jquery.min.js
测试

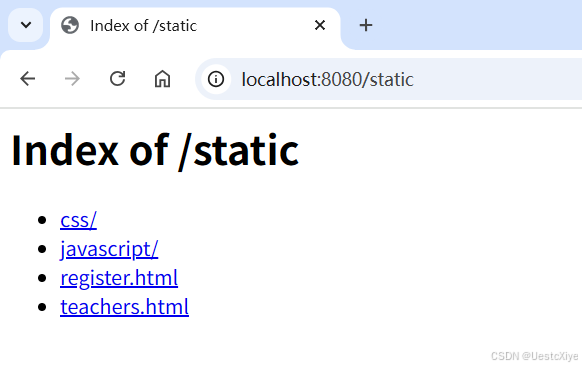

因为路由中配置了 /static,访问 http://localhost:8080/static 会给出项目 static 文件夹的目录:

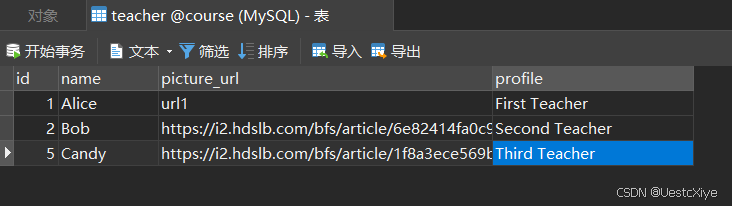

数据库中 teacher 表:
在一个终端 cd 到 webservice,执行命令 cargo run。
在另一个终端 cd 到 webservice,执行命令 cargo run。

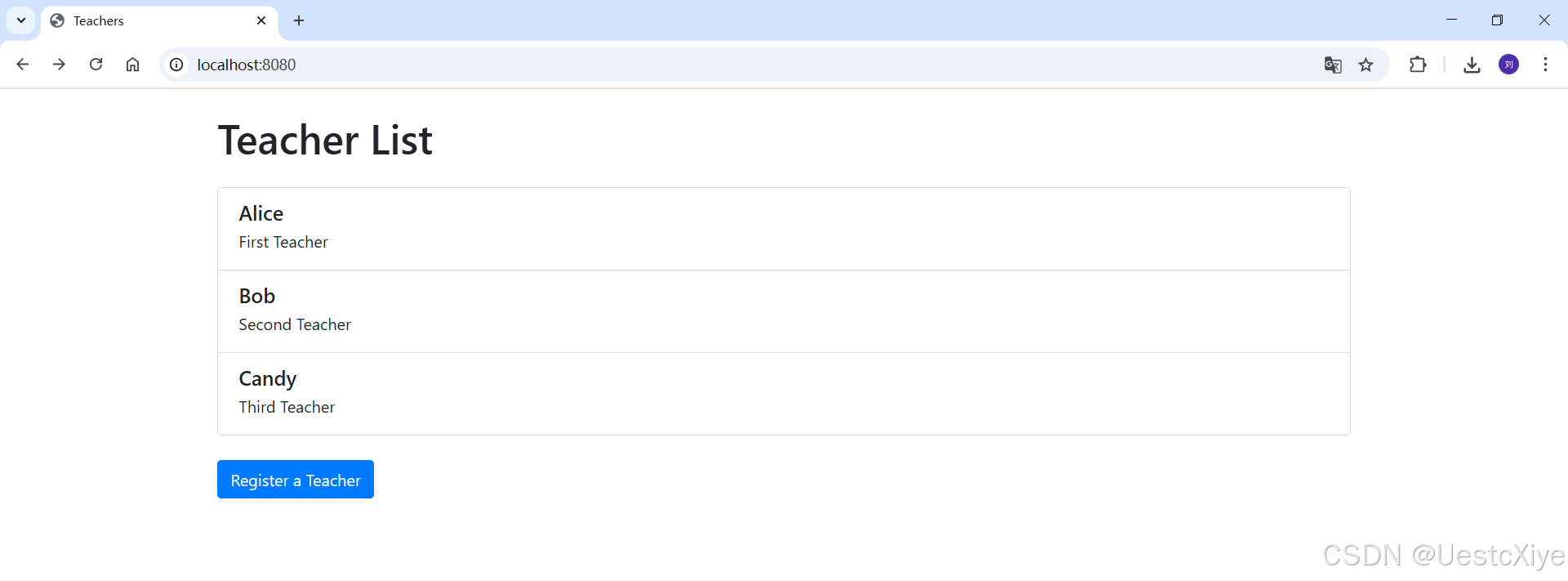

在浏览器访问 http://localhost:8080,页面如下:
webapp 终端输出 Listening on 127.0.0.1:8080。

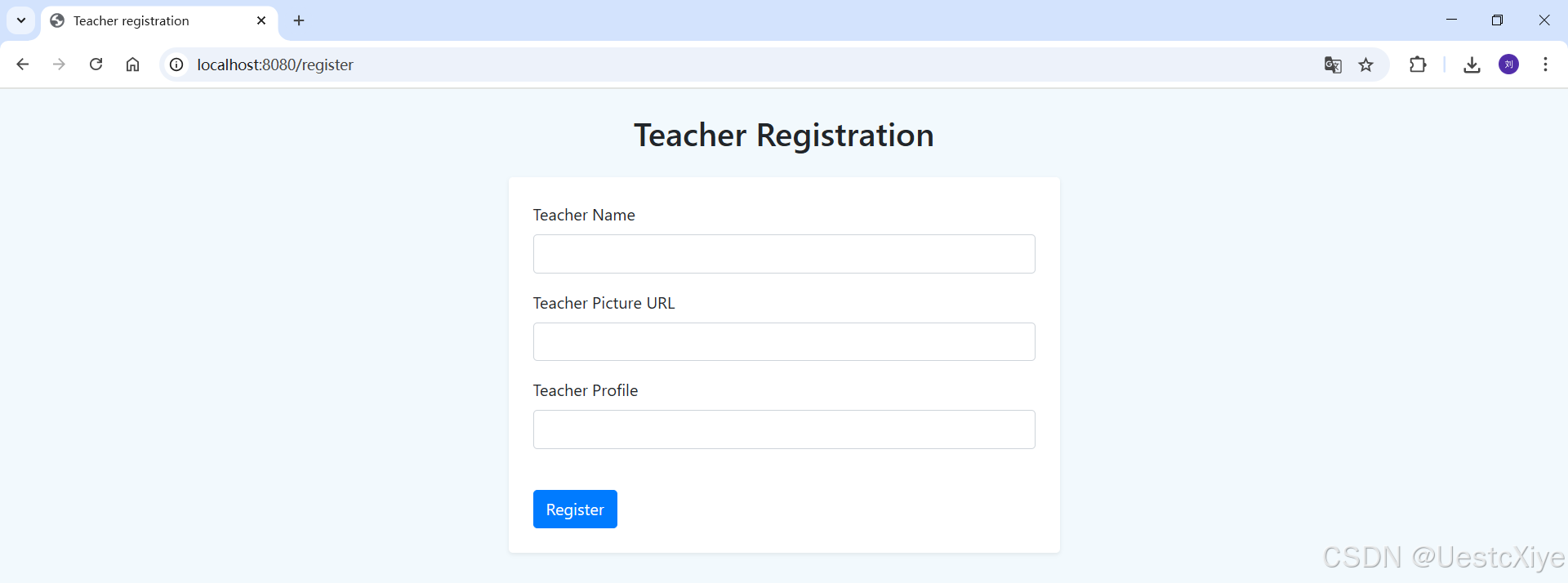

点击 Register a Teacher 按钮,跳转到 http://localhost:8080/register,可以填写表单,注册新的教师信息。

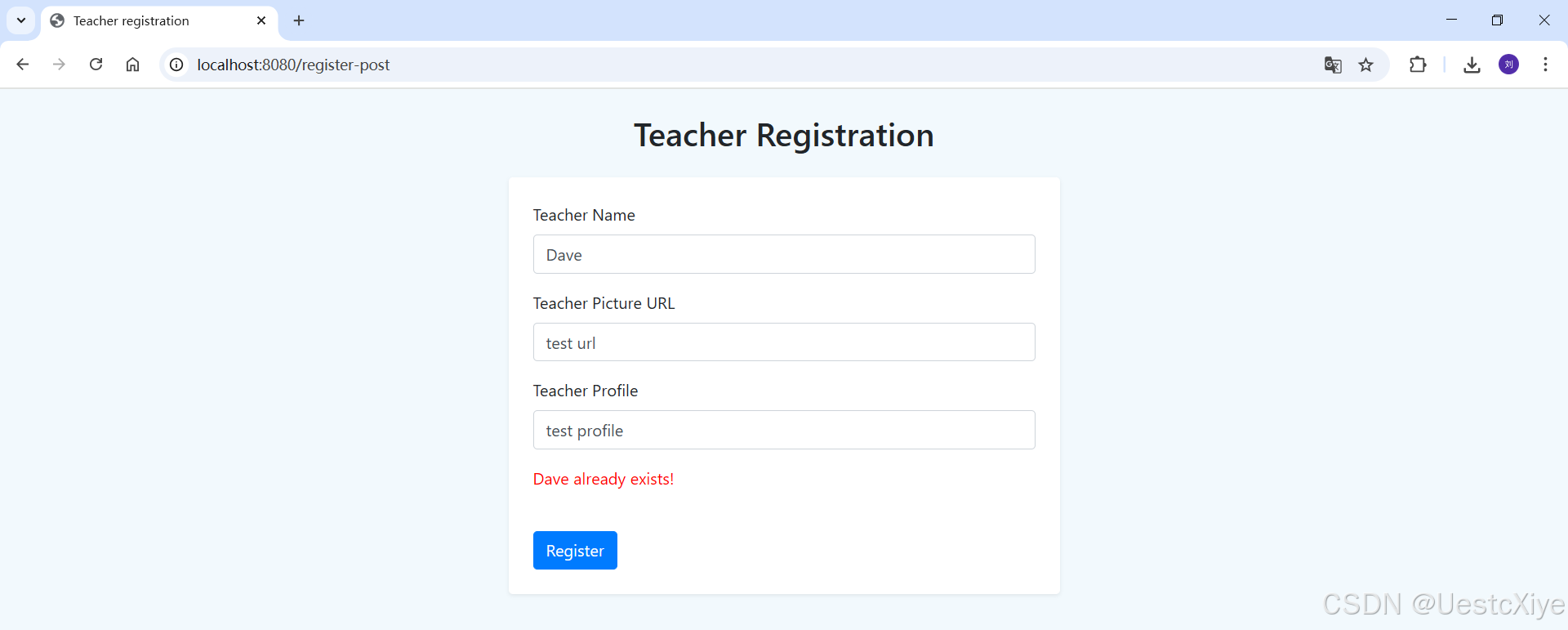

我们先测试无法新增的情况,也就是 Teacher Name 是 Dave 的情况:

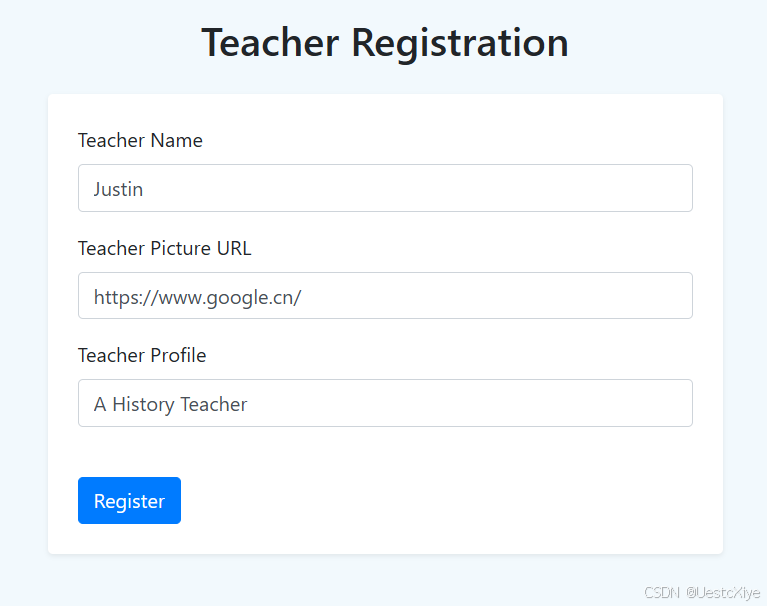

再测试可以插入新教师信息的情况:

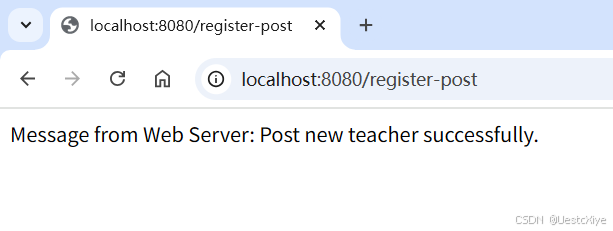

插入成功,跳转到 http://localhost:8080/register-post 页面:

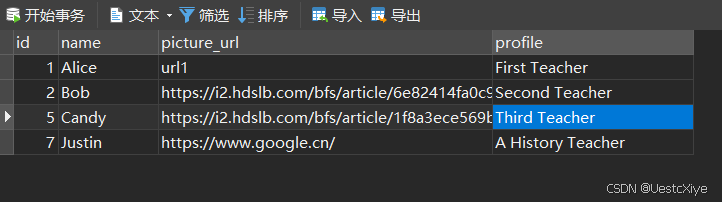

数据库中 teacher 表新增一条教师信息:
