Android百度地图（四）如何引入离线地图包

article 2025/9/17 10:27:11

Android百度地图（四）如何引入离线地图包

本文代码在http://blog.csdn.net/xyzz609/article/details/51955363的基础上进一步修改，有兴趣的同学可以研究下怎么修改的

本篇我们准备为地图添加：引入离线地图包

本文参考的是http://blog.csdn.net/lmj623565791/article/details/37758097
官方文档：http://lbsyun.baidu.com/index.php?title=androidsdk/guide/offlinemap

没有例子我只能摸虾，

开发者可参考官方提供demo工程中的OfflineDemo 文件

我是没有找到，找到的给我回复下吧

开始导入离线包

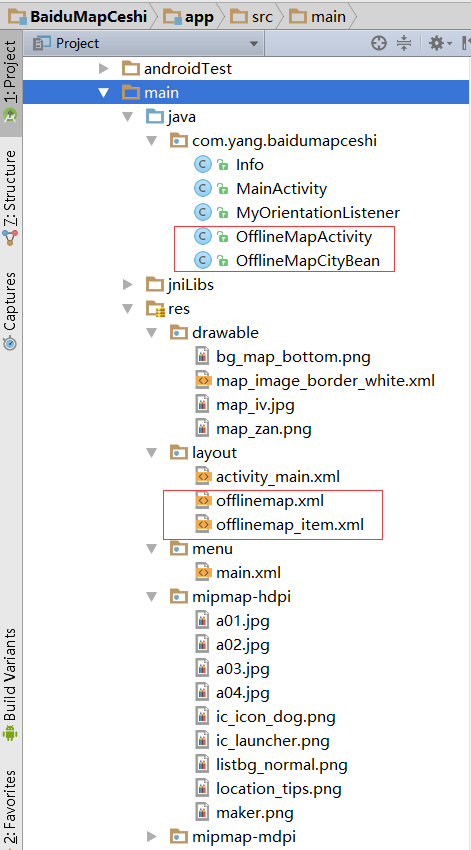

新增的文件目录看看你是这么写的吗

这里写图片描述

本文参考大神：http://blog.csdn.net/lmj623565791/article/details/37758097

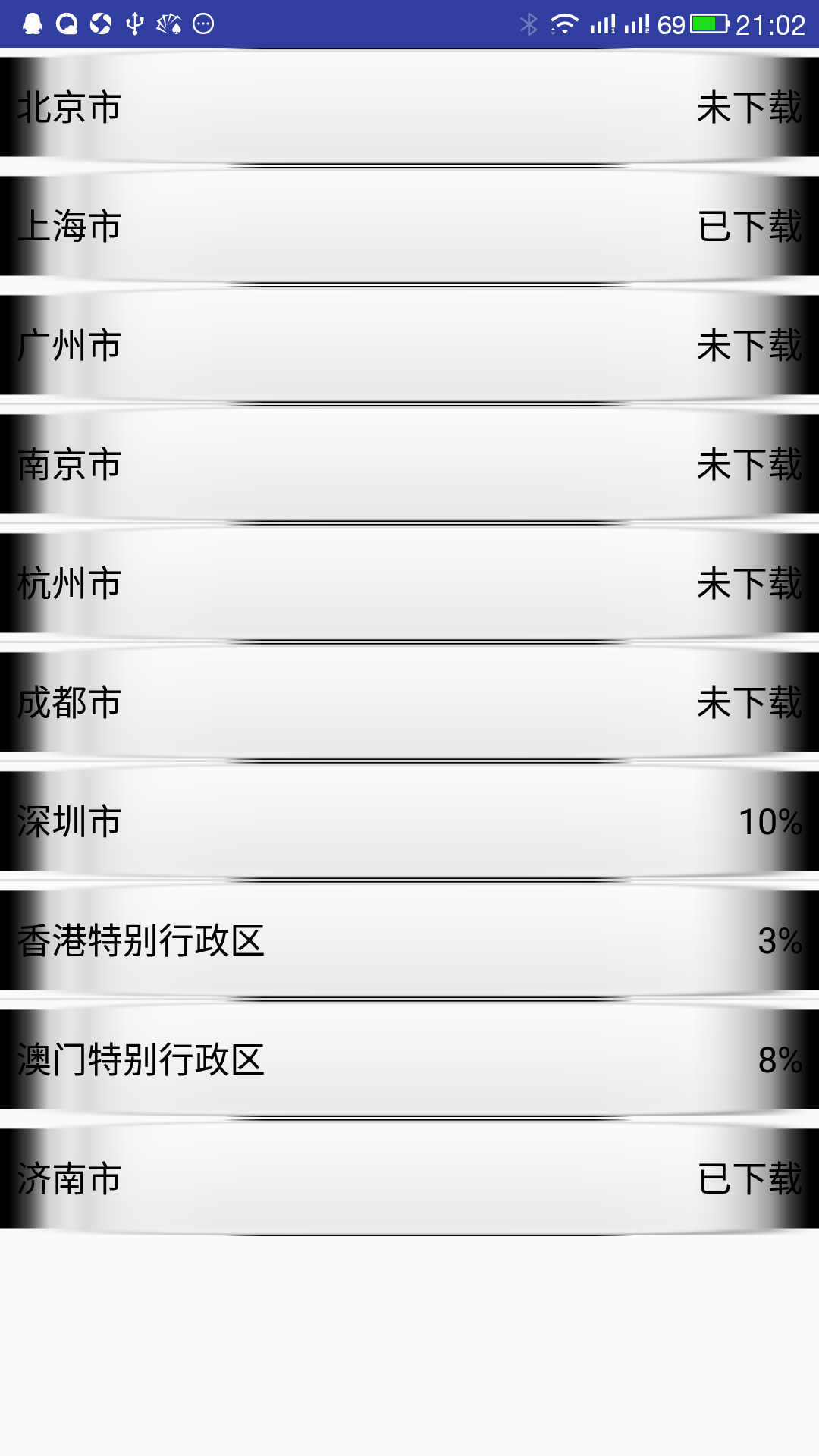

其实说实话，我最后实现点击下载啥的，看见济南市了吧哈哈

但是，我有点疑问，不能删除，还有下载哪里了，为什么我断网之后，不能显示济南地图呢。。。

不管了，不过效果是出来了，

这里写图片描述

布局文件：activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="fill_parent"android:layout_height="wrap_content"android:orientation="vertical" ><com.baidu.mapapi.map.MapView
        android:id="@+id/id_bmapView"android:layout_width="fill_parent"android:layout_height="fill_parent"android:clickable="true" /><RelativeLayout
        android:id="@+id/id_marker_info"android:visibility="gone"android:layout_width="fill_parent"android:layout_height="220dp"android:layout_alignParentBottom="true"android:background="#CC4e5a6b"android:clickable="true" ><ImageView
            android:id="@+id/info_img"android:layout_width="fill_parent"android:layout_height="150dp"android:layout_marginBottom="10dp"android:layout_marginLeft="12dp"android:layout_marginRight="12dp"android:layout_marginTop="10dp"android:alpha="1.0"android:background="@drawable/map_image_border_white"android:clickable="true"android:scaleType="fitXY"android:src="@mipmap/a04" /><RelativeLayout
            android:layout_width="fill_parent"android:layout_height="50dp"android:layout_alignParentBottom="true"android:background="@drawable/bg_map_bottom" ><LinearLayout
                android:layout_width="fill_parent"android:layout_height="wrap_content"android:layout_centerVertical="true"android:layout_marginLeft="20dp"android:orientation="vertical" ><TextView
                    android:id="@+id/info_name"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="老米家泡馍小炒"android:textColor="#FFF5EB" /><TextView
                    android:id="@+id/info_distance"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="距离200米"android:textColor="#FFF5EB" /></LinearLayout><LinearLayout
                android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_alignParentRight="true"android:layout_centerVertical="true"android:layout_marginRight="20dp"android:orientation="horizontal" ><ImageView
                    android:layout_width="wrap_content"android:layout_height="wrap_content"android:onClick="zan"android:src="@drawable/map_zan" /><TextView
                    android:id="@+id/info_zan"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_gravity="center"android:text="652"android:textColor="#FFF5EB" /></LinearLayout></RelativeLayout></RelativeLayout></RelativeLayout>

展示视图控制文件：MainActivity

package com.yang.baidumapceshi;import android.app.Activity;
import android.content.Intent;
import android.graphics.Point;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.Window;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import android.widget.TextView;import com.baidu.location.BDLocation;
import com.baidu.location.BDLocationListener;
import com.baidu.location.LocationClient;
import com.baidu.location.LocationClientOption;
import com.baidu.mapapi.SDKInitializer;
import com.baidu.mapapi.map.BaiduMap;
import com.baidu.mapapi.map.BaiduMap.OnMapClickListener;
import com.baidu.mapapi.map.BaiduMap.OnMarkerClickListener;
import com.baidu.mapapi.map.BitmapDescriptor;
import com.baidu.mapapi.map.BitmapDescriptorFactory;
import com.baidu.mapapi.map.InfoWindow;
import com.baidu.mapapi.map.MapPoi;
import com.baidu.mapapi.map.MapStatusUpdate;
import com.baidu.mapapi.map.MapStatusUpdateFactory;
import com.baidu.mapapi.map.MapView;
import com.baidu.mapapi.map.Marker;
import com.baidu.mapapi.map.MarkerOptions;
import com.baidu.mapapi.map.MyLocationConfiguration;
import com.baidu.mapapi.map.MyLocationConfiguration.LocationMode;
import com.baidu.mapapi.map.MyLocationData;
import com.baidu.mapapi.map.OverlayOptions;
import com.baidu.mapapi.model.LatLng;
import com.yang.baidumapceshi.MyOrientationListener.OnOrientationListener;import java.lang.reflect.Method;
import java.util.List;public class MainActivity extends Activity
{/*** 地图控件*/private MapView mMapView = null;/*** 地图实例*/private BaiduMap mBaiduMap;/*** 定位的客户端*/private LocationClient mLocationClient;/*** 定位的监听器*/public MyLocationListener mMyLocationListener;/*** 当前定位的模式*/private LocationMode mCurrentMode = LocationMode.NORMAL;/**** 是否是第一次定位*/private volatile boolean isFristLocation = true;/*** 最新一次的经纬度*/private double mCurrentLantitude;private double mCurrentLongitude;/*** 当前的精度*/private float mCurrentAccracy;/*** 方向传感器的监听器*/private MyOrientationListener myOrientationListener;/*** 方向传感器X方向的值*/private int mXDirection;/*** 地图定位的模式*/private String[] mStyles = new String[] { "地图模式【正常】", "地图模式【跟随】","地图模式【罗盘】" };private int mCurrentStyle = 0;// 初始化全局 bitmap 信息，不用时及时 recycleprivate BitmapDescriptor mIconMaker;/*** 详细信息的 布局*/private RelativeLayout mMarkerInfoLy;@Overrideprotected void onCreate(Bundle savedInstanceState){super.onCreate(savedInstanceState);requestWindowFeature(Window.FEATURE_NO_TITLE);// 注意该方法要再setContentView方法之前实现SDKInitializer.initialize(getApplicationContext());setContentView(R.layout.activity_main);// 第一次定位isFristLocation = true;// 获取地图控件引用mMapView = (MapView) findViewById(R.id.id_bmapView);mMarkerInfoLy = (RelativeLayout) findViewById(R.id.id_marker_info);// 获得地图的实例mBaiduMap = mMapView.getMap();mIconMaker = BitmapDescriptorFactory.fromResource(R.mipmap.maker);MapStatusUpdate msu = MapStatusUpdateFactory.zoomTo(15.0f);mBaiduMap.setMapStatus(msu);// 初始化定位initMyLocation();// 初始化传感器initOritationListener();initMarkerClickEvent();initMapClickEvent();}private void initMapClickEvent(){mBaiduMap.setOnMapClickListener(new OnMapClickListener(){@Overridepublic boolean onMapPoiClick(MapPoi arg0){return false;}@Overridepublic void onMapClick(LatLng arg0){mMarkerInfoLy.setVisibility(View.GONE);mBaiduMap.hideInfoWindow();}});}private void initMarkerClickEvent(){// 对Marker的点击mBaiduMap.setOnMarkerClickListener(new OnMarkerClickListener(){@Overridepublic boolean onMarkerClick(final Marker marker){// 获得marker中的数据Info info = (Info) marker.getExtraInfo().get("info");InfoWindow mInfoWindow;// 生成一个TextView用户在地图中显示InfoWindowTextView location = new TextView(getApplicationContext());location.setBackgroundResource(R.mipmap.location_tips);location.setPadding(30, 20, 30, 50);location.setText(info.getName());// 将marker所在的经纬度的信息转化成屏幕上的坐标final LatLng ll = marker.getPosition();Point p = mBaiduMap.getProjection().toScreenLocation(ll);p.y -= 47;LatLng llInfo = mBaiduMap.getProjection().fromScreenLocation(p);//创建InfoWindow , 传入 view， 地理坐标， y 轴偏移量mInfoWindow = new InfoWindow(location, llInfo, p.y);// 显示InfoWindowmBaiduMap.showInfoWindow(mInfoWindow);// 设置详细信息布局为可见mMarkerInfoLy.setVisibility(View.VISIBLE);// 根据商家信息为详细信息布局设置信息popupInfo(mMarkerInfoLy, info);return true;}});}/*** 根据info为布局上的控件设置信息**/protected void popupInfo(RelativeLayout mMarkerLy, Info info){ViewHolder viewHolder = null;if (mMarkerLy.getTag() == null){viewHolder = new ViewHolder();viewHolder.infoImg = (ImageView) mMarkerLy.findViewById(R.id.info_img);viewHolder.infoName = (TextView) mMarkerLy.findViewById(R.id.info_name);viewHolder.infoDistance = (TextView) mMarkerLy.findViewById(R.id.info_distance);viewHolder.infoZan = (TextView) mMarkerLy.findViewById(R.id.info_zan);mMarkerLy.setTag(viewHolder);}viewHolder = (ViewHolder) mMarkerLy.getTag();viewHolder.infoImg.setImageResource(info.getImgId());viewHolder.infoDistance.setText(info.getDistance());viewHolder.infoName.setText(info.getName());viewHolder.infoZan.setText(info.getZan() + "");}/*** 复用弹出面板mMarkerLy的控件**/private class ViewHolder{ImageView infoImg;TextView infoName;TextView infoDistance;TextView infoZan;}/*** 初始化方向传感器*/private void initOritationListener(){myOrientationListener = new MyOrientationListener(getApplicationContext());myOrientationListener.setOnOrientationListener(new OnOrientationListener(){@Overridepublic void onOrientationChanged(float x){mXDirection = (int) x;// 构造定位数据MyLocationData locData = new MyLocationData.Builder().accuracy(mCurrentAccracy)// 此处设置开发者获取到的方向信息，顺时针0-360.direction(mXDirection).latitude(mCurrentLantitude).longitude(mCurrentLongitude).build();// 设置定位数据mBaiduMap.setMyLocationData(locData);// 设置自定义图标BitmapDescriptor mCurrentMarker = BitmapDescriptorFactory.fromResource(R.mipmap.navi_map_gps_locked);MyLocationConfiguration config = new MyLocationConfiguration(mCurrentMode, true, mCurrentMarker);mBaiduMap.setMyLocationConfigeration(config);}});}/*** 初始化定位相关代码*/private void initMyLocation(){// 定位初始化mLocationClient = new LocationClient(this);mMyLocationListener = new MyLocationListener();mLocationClient.registerLocationListener(mMyLocationListener);// 设置定位的相关配置LocationClientOption option = new LocationClientOption();option.setOpenGps(true);// 打开gpsoption.setCoorType("bd09ll"); // 设置坐标类型option.setScanSpan(1000);mLocationClient.setLocOption(option);}/*** 初始化图层*/public void addInfosOverlay(List<Info> infos){mBaiduMap.clear();LatLng latLng = null;OverlayOptions overlayOptions = null;Marker marker = null;for (Info info : infos){// 位置latLng = new LatLng(info.getLatitude(), info.getLongitude());// 图标overlayOptions = new MarkerOptions().position(latLng).icon(mIconMaker).zIndex(5);marker = (Marker) (mBaiduMap.addOverlay(overlayOptions));Bundle bundle = new Bundle();bundle.putSerializable("info", info);marker.setExtraInfo(bundle);}// 将地图移到到最后一个经纬度位置MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(latLng);mBaiduMap.setMapStatus(u);}/*** 实现实位回调监听*/public class MyLocationListener implements BDLocationListener{@Overridepublic void onReceiveLocation(BDLocation location){// map view 销毁后不在处理新接收的位置if (location == null || mMapView == null)return;// 构造定位数据MyLocationData locData = new MyLocationData.Builder().accuracy(location.getRadius())// 此处设置开发者获取到的方向信息，顺时针0-360.direction(mXDirection).latitude(location.getLatitude()).longitude(location.getLongitude()).build();mCurrentAccracy = location.getRadius();// 设置定位数据mBaiduMap.setMyLocationData(locData);mCurrentLantitude = location.getLatitude();mCurrentLongitude = location.getLongitude();// 设置自定义图标BitmapDescriptor mCurrentMarker = BitmapDescriptorFactory.fromResource(R.mipmap.navi_map_gps_locked);MyLocationConfiguration config = new MyLocationConfiguration(mCurrentMode, true, mCurrentMarker);mBaiduMap.setMyLocationConfigeration(config);// 第一次定位时，将地图位置移动到当前位置if (isFristLocation){isFristLocation = false;LatLng ll = new LatLng(location.getLatitude(),location.getLongitude());MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(ll);mBaiduMap.animateMapStatus(u);}}}@Overridepublic boolean onCreateOptionsMenu(Menu menu){getMenuInflater().inflate(R.menu.main, menu);return super.onCreateOptionsMenu(menu);}/*** 默认点击menu菜单，菜单项不现实图标，反射强制其显示*/@Overridepublic boolean onMenuOpened(int featureId, Menu menu){if (featureId == Window.FEATURE_OPTIONS_PANEL && menu != null){if (menu.getClass().getSimpleName().equals("MenuBuilder")){try{Method m = menu.getClass().getDeclaredMethod("setOptionalIconsVisible", Boolean.TYPE);m.setAccessible(true);m.invoke(menu, true);} catch (Exception e){}}}return super.onMenuOpened(featureId, menu);}@Overridepublic boolean onOptionsItemSelected(MenuItem item){switch (item.getItemId()){case R.id.id_menu_map_addMaker:addInfosOverlay(Info.infos);break;case R.id.id_menu_map_common:// 普通地图mBaiduMap.setMapType(BaiduMap.MAP_TYPE_NORMAL);break;case R.id.id_menu_map_site:// 卫星地图mBaiduMap.setMapType(BaiduMap.MAP_TYPE_SATELLITE);break;case R.id.id_menu_map_traffic:// 开启交通图if (mBaiduMap.isTrafficEnabled()){item.setTitle("开启实时交通");mBaiduMap.setTrafficEnabled(false);} else{item.setTitle("关闭实时交通");mBaiduMap.setTrafficEnabled(true);}break;case R.id.id_menu_map_myLoc:center2myLoc();break;//离线地图case R.id.id_menu_map_offline:Intent intent = new Intent(MainActivity.this, OfflineMapActivity.class);startActivity(intent);break;case R.id.id_menu_map_style:mCurrentStyle = (++mCurrentStyle) % mStyles.length;item.setTitle(mStyles[mCurrentStyle]);// 设置自定义图标switch (mCurrentStyle){case 0:mCurrentMode = LocationMode.NORMAL;break;case 1:mCurrentMode = LocationMode.FOLLOWING;break;case 2:mCurrentMode = LocationMode.COMPASS;break;}BitmapDescriptor mCurrentMarker = BitmapDescriptorFactory.fromResource(R.mipmap.navi_map_gps_locked);MyLocationConfiguration config = new MyLocationConfiguration(mCurrentMode, true, mCurrentMarker);mBaiduMap.setMyLocationConfigeration(config);break;}return super.onOptionsItemSelected(item);}/*** 地图移动到我的位置,此处可以重新发定位请求，然后定位；* 直接拿最近一次经纬度，如果长时间没有定位成功，可能会显示效果不好*/private void center2myLoc(){LatLng ll = new LatLng(mCurrentLantitude, mCurrentLongitude);MapStatusUpdate u = MapStatusUpdateFactory.newLatLng(ll);mBaiduMap.animateMapStatus(u);}@Overrideprotected void onStart(){// 开启图层定位mBaiduMap.setMyLocationEnabled(true);if (!mLocationClient.isStarted()){mLocationClient.start();}// 开启方向传感器myOrientationListener.start();super.onStart();}@Overrideprotected void onStop(){// 关闭图层定位mBaiduMap.setMyLocationEnabled(false);mLocationClient.stop();// 关闭方向传感器myOrientationListener.stop();super.onStop();}@Overrideprotected void onDestroy(){super.onDestroy();// 在activity执行onDestroy时执行mMapView.onDestroy()，实现地图生命周期管理mMapView.onDestroy();mIconMaker.recycle();mMapView = null;}@Overrideprotected void onResume(){super.onResume();// 在activity执行onResume时执行mMapView. onResume ()，实现地图生命周期管理mMapView.onResume();}@Overrideprotected void onPause(){super.onPause();// 在activity执行onPause时执行mMapView. onPause ()，实现地图生命周期管理mMapView.onPause();}}

Info

package com.yang.baidumapceshi;import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;/*** Created by yang_zzheng on 2016/7/19* yangzhizheng2012@163.com*/
public class Info implements Serializable
{private static final long serialVersionUID = -758459502806858414L;/*** 精度*/private double latitude;/*** 纬度*/private double longitude;/*** 图片ID，真实项目中可能是图片路径*/private int imgId;/*** 商家名称*/private String name;/*** 距离*/private String distance;/*** 赞数量*/private int zan;public static List<Info> infos = new ArrayList<Info>();static{infos.add(new Info(34.242652, 108.971171, R.mipmap.a01, "英伦贵族小旅馆","距离209米", 1456));infos.add(new Info(34.242952, 108.972171, R.mipmap.a02, "沙井国际洗浴会所","距离897米", 456));infos.add(new Info(34.242852, 108.973171, R.mipmap.a03, "五环服装城","距离249米", 1456));infos.add(new Info(34.242152, 108.971971, R.mipmap.a04, "老米家泡馍小炒","距离679米", 1456));}public Info(){}public Info(double latitude, double longitude, int imgId, String name,String distance, int zan){super();this.latitude = latitude;this.longitude = longitude;this.imgId = imgId;this.name = name;this.distance = distance;this.zan = zan;}public double getLatitude(){return latitude;}public void setLatitude(double latitude){this.latitude = latitude;}public double getLongitude(){return longitude;}public void setLongitude(double longitude){this.longitude = longitude;}public String getName(){return name;}public int getImgId(){return imgId;}public void setImgId(int imgId){this.imgId = imgId;}public void setName(String name){this.name = name;}public String getDistance(){return distance;}public void setDistance(String distance){this.distance = distance;}public int getZan(){return zan;}public void setZan(int zan){this.zan = zan;}}

MyOrientationListener

package com.yang.baidumapceshi;/*** Created by yang_zzheng on 2016/7/18* yangzhizheng2012@163.com*/
import android.content.Context;
import android.hardware.Sensor;
import android.hardware.SensorEvent;
import android.hardware.SensorEventListener;
import android.hardware.SensorManager;public class MyOrientationListener implements SensorEventListener
{private Context context;private SensorManager sensorManager;private Sensor sensor;private float lastX ;private OnOrientationListener onOrientationListener ;public MyOrientationListener(Context context){this.context = context;}// 开始public void start(){// 获得传感器管理器sensorManager = (SensorManager) context.getSystemService(Context.SENSOR_SERVICE);if (sensorManager != null){// 获得方向传感器sensor = sensorManager.getDefaultSensor(Sensor.TYPE_ORIENTATION);}// 注册if (sensor != null){//SensorManager.SENSOR_DELAY_UIsensorManager.registerListener(this, sensor,SensorManager.SENSOR_DELAY_UI);}}// 停止检测public void stop(){sensorManager.unregisterListener(this);}@Overridepublic void onAccuracyChanged(Sensor sensor, int accuracy){}@Overridepublic void onSensorChanged(SensorEvent event){// 接受方向感应器的类型if (event.sensor.getType() == Sensor.TYPE_ORIENTATION){// 这里我们可以得到数据，然后根据需要来处理float x = event.values[SensorManager.DATA_X];if( Math.abs(x- lastX) > 1.0 ){onOrientationListener.onOrientationChanged(x);}
//            Log.e("DATA_X", x+"");lastX = x ;}}public void setOnOrientationListener(OnOrientationListener onOrientationListener){this.onOrientationListener = onOrientationListener ;}public interface OnOrientationListener{void onOrientationChanged(float x);}}

OfflineMapActivity

package com.yang.baidumapceshi;/*** Created by yang_zzheng on 2016/7/19* yangzhizheng2012@163.com*/import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.BaseAdapter;
import android.widget.ListView;
import android.widget.TextView;import com.baidu.mapapi.map.offline.MKOLSearchRecord;
import com.baidu.mapapi.map.offline.MKOLUpdateElement;
import com.baidu.mapapi.map.offline.MKOfflineMap;
import com.baidu.mapapi.map.offline.MKOfflineMapListener;
import com.yang.baidumapceshi.OfflineMapCityBean.Flag;import java.util.ArrayList;
import java.util.List;public class OfflineMapActivity extends Activity
{protected static final String TAG = "OfflineMapActivity";/*** 离线地图功能*/private MKOfflineMap mOfflineMap;private ListView mListView;/*** 离线地图的数据*/private List<OfflineMapCityBean> mDatas = new ArrayList<OfflineMapCityBean>();/*** 适配器*/private MyOfflineCityBeanAdapter mAdapter;private LayoutInflater mInflater;private Context context;/*** 目前加入下载队列的城市*/private List<Integer> mCityCodes = new ArrayList<Integer>();@Overrideprotected void onCreate(Bundle savedInstanceState){super.onCreate(savedInstanceState);setContentView(R.layout.offlinemap);context = this;mInflater = LayoutInflater.from(this);/*** 初始化离线地图*/initOfflineMap();/*** 初始化ListView数据*/initData();/*** 初始化ListView*/initListView();}private void initListView(){mListView = (ListView) findViewById(R.id.id_offline_map_lv);mAdapter = new MyOfflineCityBeanAdapter();mListView.setAdapter(mAdapter);mListView.setOnItemClickListener(new OnItemClickListener(){@Overridepublic void onItemClick(AdapterView<?> parent, View view,int position, long id){int cityId = mDatas.get(position).getCityCode();if (mCityCodes.contains(cityId)){removeTaskFromQueue(position, cityId);} else{addToDownloadQueue(position, cityId);}}});}/*** 将任务移除下载队列** @param pos* @param cityId*/public void removeTaskFromQueue(int pos, int cityId){mOfflineMap.pause(cityId);mDatas.get(pos).setFlag(Flag.NO_STATUS);mAdapter.notifyDataSetChanged();}/*** 将下载任务添加至下载队列** @param pos* @param cityId*/public void addToDownloadQueue(int pos, int cityId){mCityCodes.add(cityId);mOfflineMap.start(cityId);mDatas.get(pos).setFlag(Flag.PAUSE);mAdapter.notifyDataSetChanged();}private void initData(){// 获得所有热门城市ArrayList<MKOLSearchRecord> offlineCityList = mOfflineMap.getHotCityList();// 手动添加了济南MKOLSearchRecord xian = new MKOLSearchRecord();xian.cityID = 289;xian.cityName = "济南市";offlineCityList.add(xian);// 获得所有已经下载的城市列表ArrayList<MKOLUpdateElement> allUpdateInfo = mOfflineMap.getAllUpdateInfo();// 设置所有数据的状态for (MKOLSearchRecord record : offlineCityList){OfflineMapCityBean cityBean = new OfflineMapCityBean();cityBean.setCityName(record.cityName);cityBean.setCityCode(record.cityID);if (allUpdateInfo != null)//没有任何下载记录，返回null,为啥不返回空列表~~{for (MKOLUpdateElement ele : allUpdateInfo){if (ele.cityID == record.cityID){cityBean.setProgress(ele.ratio);}}}mDatas.add(cityBean);}}/*** 初始化离线地图*/private void initOfflineMap(){mOfflineMap = new MKOfflineMap();// 设置监听mOfflineMap.init(new MKOfflineMapListener(){@Overridepublic void onGetOfflineMapState(int type, int state){switch (type){case MKOfflineMap.TYPE_DOWNLOAD_UPDATE:// 离线地图下载更新事件类型MKOLUpdateElement update = mOfflineMap.getUpdateInfo(state);Log.e(TAG, update.cityName + " ," + update.ratio);for (OfflineMapCityBean bean : mDatas){if (bean.getCityCode() == state){bean.setProgress(update.ratio);bean.setFlag(Flag.DOWNLOADING);break;}}mAdapter.notifyDataSetChanged();Log.e(TAG, "TYPE_DOWNLOAD_UPDATE");break;case MKOfflineMap.TYPE_NEW_OFFLINE:// 有新离线地图安装Log.e(TAG, "TYPE_NEW_OFFLINE");break;case MKOfflineMap.TYPE_VER_UPDATE:// 版本更新提示break;}}});}@Overrideprotected void onDestroy(){mOfflineMap.destroy();super.onDestroy();}/*** 热门城市地图列表的Adapter** @author zhy**/class MyOfflineCityBeanAdapter extends BaseAdapter{@Overridepublic boolean isEnabled(int position){if (mDatas.get(position).getProgress() == 100){return false;}return super.isEnabled(position);}@Overridepublic int getCount(){return mDatas.size();}@Overridepublic Object getItem(int position){return mDatas.get(position);}@Overridepublic long getItemId(int position){return position;}@Overridepublic View getView(int position, View convertView, ViewGroup parent){OfflineMapCityBean bean = mDatas.get(position);ViewHolder holder = null;if (convertView == null){holder = new ViewHolder();convertView = mInflater.inflate(R.layout.offlinemap_item,parent, false);holder.cityName = (TextView) convertView.findViewById(R.id.id_cityname);holder.progress = (TextView) convertView.findViewById(R.id.id_progress);convertView.setTag(holder);} else{holder = (ViewHolder) convertView.getTag();}holder.cityName.setText(bean.getCityName());int progress = bean.getProgress();String progressMsg = "";// 根据进度情况，设置显示if (progress == 0){progressMsg = "未下载";} else if (progress == 100){bean.setFlag(Flag.NO_STATUS);progressMsg = "已下载";} else{progressMsg = progress + "%";}// 根据当前状态，设置显示switch (bean.getFlag()){case PAUSE:progressMsg += "【等待下载】";break;case DOWNLOADING:progressMsg += "【正在下载】";break;default:break;}holder.progress.setText(progressMsg);return convertView;}private class ViewHolder{TextView cityName;TextView progress;}}
}

OfflineMapCityBean

package com.yang.baidumapceshi;/*** Created by yang_zzheng on 2016/7/19* yangzhizheng2012@163.com*/
public class OfflineMapCityBean
{private String cityName;private int cityCode;/*** 下载的进度*/private int progress;private Flag flag = Flag.NO_STATUS;/*** 下载的状态：无状态，暂停，正在下载**/public enum Flag{NO_STATUS,PAUSE,DOWNLOADING}public Flag getFlag(){return flag;}public void setFlag(Flag flag){this.flag = flag;}public OfflineMapCityBean(){}public OfflineMapCityBean(String cityName, int cityCode, int progress){this.cityName = cityName;this.cityCode = cityCode;this.progress = progress;}public String getCityName(){return cityName;}public void setCityName(String cityName){this.cityName = cityName;}public int getCityCode(){return cityCode;}public void setCityCode(int cityCode){this.cityCode = cityCode;}public int getProgress(){return progress;}public void setProgress(int progress){this.progress = progress;}}

offlinemap.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent" ><ListView
        android:id="@+id/id_offline_map_lv"android:layout_width="fill_parent"android:layout_height="wrap_content" ></ListView></RelativeLayout>

offlinemap_item.xml

<?xml version="1.0" encoding="UTF-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"android:layout_width="fill_parent"android:layout_height="wrap_content"android:background="@mipmap/listbg_normal" ><TextView
        android:id="@+id/id_cityname"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_centerVertical="true"android:layout_marginLeft="8dp"android:text="合肥"android:textColor="#ff000000"android:textSize="18sp" /><TextView
        android:id="@+id/id_progress"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_alignParentRight="true"android:layout_centerVertical="true"android:layout_marginRight="8dp"android:text="已完成"android:textColor="#ff000000"android:textSize="18sp" /></RelativeLayout>

main.xml

<menu xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"><itemandroid:id="@+id/id_menu_map_common"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="普通地图"/><itemandroid:id="@+id/id_menu_map_site"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="卫星地图"/><itemandroid:id="@+id/id_menu_map_traffic"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="开启实时交通"/><itemandroid:id="@+id/id_menu_map_myLoc"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="我的位置"/><itemandroid:id="@+id/id_menu_map_addMaker"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="添加覆盖物"/><itemandroid:id="@+id/id_menu_map_style"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="地图模式【正常】"/><itemandroid:id="@+id/id_menu_map_offline"android:icon="@mipmap/ic_icon_dog"app:showAsAction="never"android:title="下载离线地图"/></menu>

map_image_border_white.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" ><stroke
        android:width="2dp"android:color="#AAffffff" /><padding
        android:bottom="2dp"android:left="2dp"android:right="2dp"android:top="2dp" /></shape>

我这个人比较实在，你照着copy很快就能实现

喜欢的就给赞吧，不喜欢的勿喷，有的地方copy多了，哈哈，我写是照着学习，勿怪。

代码下载

本文中的代码已经在文中全部出现过了，为什么还需要一个下载币呢，是因为我的下载币不够用了额，下载其他大神的代码，需要，所以请赞助一下吧。当然你不想赞助的话，你可以在文章中一个一个的copy，绝对的一模一样，绝对的开源，赞助一个下载币吧

里面附带这各个城市的cityCode

http://download.csdn.net/detail/xyzz609/9580638
